Showing 25–36 of 52 results
Air treatment

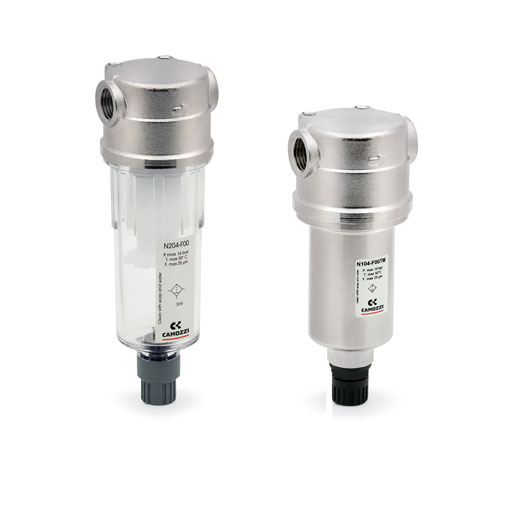

Filters, coalescing filters and activated carbon filters Series N
Ports: G1/8, G1/4
Series N filters are available with G1/8 and G1/4 gas ports.
The models are available with 3 different filtering elements: 25, 5, 0,01µm and actived carbon.The version with semi-automatic manual drain is equipped with a transparent bowl that makes the monitoring of the condensate level very easy.The version with metal bowl is particularly suitable for applications subject to impacts or in the presence of aggressive agents that could damage the PA12 bowl.
Flow sensors Series FS
Sizes: 17, 30, 35
The Series FS is available for flows ranging from 0.5 to 2000 L/min, offered in three different sizes, also available with the pressure sensor version included.
The display is designed to be rotatable, thus allowing for easy reading of the monitored values.
The cumulative flow rate is immediately visible on the display.Main features:
- Real-time monitoring: Allows for constant flow control at all times.
- Wide range of applications: Suitable for multiple uses, from small workshops to large industries.
- Painting robots: Ideal for managing the airflow in painting processes, contributing to the economization of technical gases.
Lockable isolation 3/2-way valves Series MC
Electropneumatic, pneumatic and manual version
Ports G1/4, G3/8 and G1/2
Modular
The 3-way lockable isolation valves are available in the electropneumatic, pneumatic and manual version and are designed to block the air inlet of the FRL group and so pressurise and depressurise the equipment.
Positioning of these valves is often before the FRL unit.
The lockable isolation valves are available with ports G1/4, G3/8 and G1/2 and can be panel mounted.

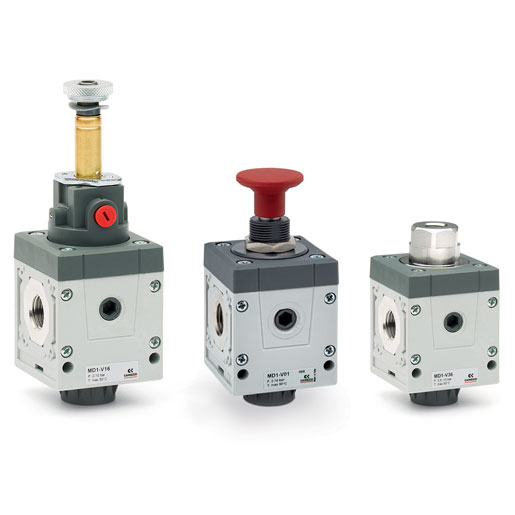

Lockable isolation 3/2-way valves Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular
Manual, electro-pneumatic, servo-pilot and pneumatic control
The Series MD offers multi-sector solutions that ensure saving in terms of installation time, space and costs.
Series MD lockable isolation valves allow the inlet and exhaust of compressed air from the plant and can meet several application requirements.
The electric version can be equipped with different options of manual override (Push & Turn, Push-in, retaining lever).
Moreover, a version without override is also available.
The manually operated valve can be locked thanks to the use of padlocks.

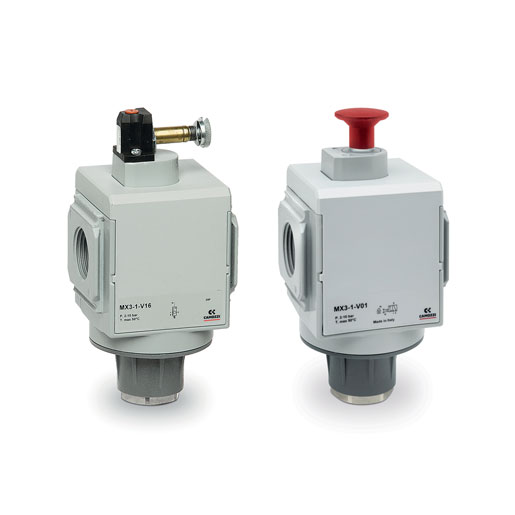

Lockable isolation 3/2-way valves Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Manual, electro-pneumatic, servo-pilot and pneumatic control
Manual isolation valves are ideal to allow an easy access to the FRL group.
The system is depressurized with the de-activation of the valve.
Electropneumatic isolation valves: ideal where manual access is difficult, they allow a maximum positioning flexibility and are designed to pressurize or depressurize pneumatic systems.
The built-in manual override guarantees security in case of an emergency.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
Lubricators Series MC
Ports G1/4, G3/8 and G1/2
Modular
With metal bowl and bayonet-type mounting
Series MC lubricators are available with ports G1/4, G3/8 and G1/2.
The bowls of these lubricators are made of metal and are equipped with a transparent viewer.
The oil flow can be monitored through the small transparent cap and regulated by means of the proper adjusting screw.
Lubricators Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
Bowl with technopolymer cover and bayonet-type mounting
The lubricator allows the nebulization of lubricating oil which is necessary to the functioning of components in specific conditions of use.
By means of a regulation screw the amount of oil can be properly adjusted in order to avoid unnecessary overdoses.
Lubricators Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Bowl with technopolymer cover and bayonet-type mounting
MX is the new series of air treatment components realized by Camozzi, characterized by a modern, linear and compact design, offering high performances.
The perfect integration between metal alloys and technopolymers has allowed the realization of a reliable product, light and strong at the same time.
Thanks to a new concept of modularity, moreover, the mounting of components has become easier.
These proportional lubricators enable a precision metering.The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
Lubricators Series N
Ports G1/8, G1/4
Series N lubricators are available with G1/4 and G1/8 ports.
The special type of design allows a vast range of applications in relation to the amount of atomized oil and the air consumed.The body is made of brass, whilst the bowl can be in transparent PA12 or in nickelplated brass. The version with metal bowl is particularly suitable for applications subject to impacts or in the presence of aggressive agents that could damage the PA12 bowl.
Manifold pressure regulators Series MC
Micro pressure regulators Series CLR
Ports G1/4, G1/8
With banjo stem with or without relieving
Available with or without banjo
Series CLR micro pressure regulators are available with G1/8 and G1/4 connections. A piston with or without relieving and VS function (by-pass valve) has been incorporated into its design. The body is in brass, while the connection fitting is in technopolymer which guarantees maximum lightness. They can be supplied with or without banjo and can be console mounted.
With a threaded top part of the body both direct mounting to a valve outlet (1/8 and 1/4 threads) and console mounting are easily facilitated. The pressure is precisely regulated simply by turning the polymer knob with a locking nut available to set the desired output.

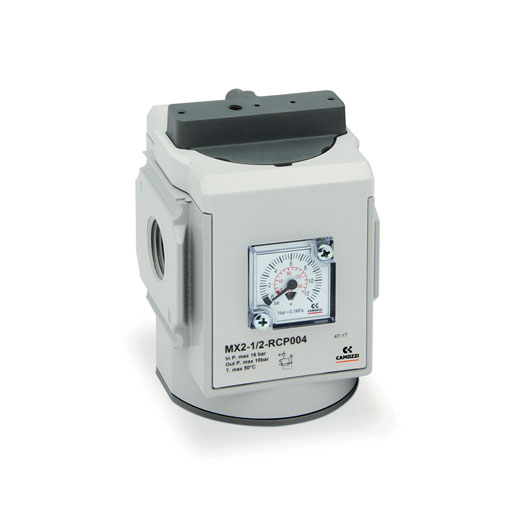

Pneumatic pilot operated pressure regulators Series MX
Ports: G3/8, G1/2, G3/4
Modular - Available with built-in pressure gauges or ports for gauges
The availability of constant values of the secondary pressure ensures performance optimization and energy saving.
All regulators are equipped with an integrated locking system and built-in pressure gauges for a more compact product.The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
