Three jaw grippers
Self-centering three-jaw grippers with T-guide Series CGCN
Double acting, magnetic, self-centering
Sizes: 50, 64, 80, 100, 125 mm
The new Series CGCN pneumatic grippers are available in 5 different sizes (50, 64, 80, 100, 125).
Their compact design allows high clamping force and long strokes in reduced dimensions.
Thanks to the permanent magnet integrated into the gripper piston, the Series CSD magnetic proximity switches can be inserted in the grooves on the body.

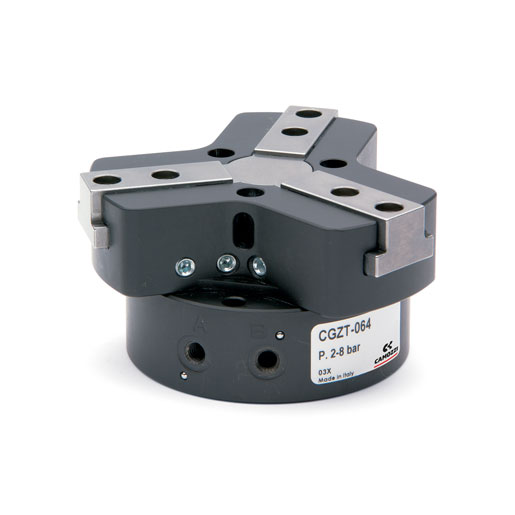

Three-jaw grippers with T-guide Series CGZT
Single and double acting, magnetic, self-centering
Sizes: 40, 50, 64, 80, 100, 125, 160 mm
The new Series CGZT pneumatic grippers, thanks to the use of a high performing and precise force transmission system, are able to provide high gripping forces, while guaranteeing high repeatability in a compact and light design.
Available in 7 sizes (40, 50, 64, 80, 100, 125 and 160) and three different versions (double acting, single acting NO and single acting NC), allows you to find the best solution for every handling need. They are also available with a part retaining unit. This gripper series results particularly suitable to be combined with anthropomorphic or collaborative robots and gantry systems for applications in Pick and Place units, Material handling and the loading/unloading operations of machine tools
