Rodless cylinders

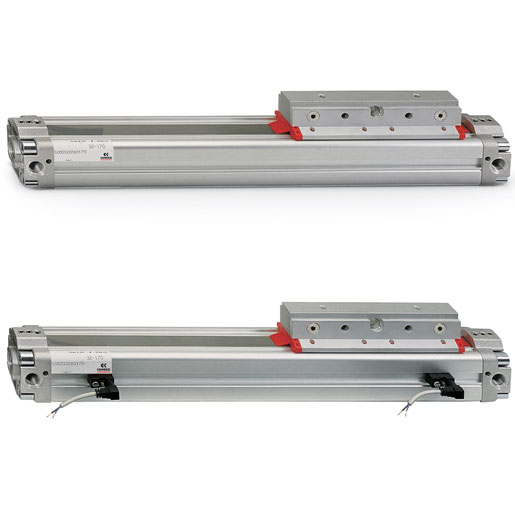

Rodless cylinders Series 50
Double-acting, magnetic, cushioned
ø 16, 25, 32, 40, 50, 63, 80 mm
Series 50 rodless cylinders are available in 7 different diameters to cover as many applications as possible.
A permanent magnet is assembled on the cylinder piston allowing the position to be detected by means of proximity switches positioned on the sliding axis.
This series of cylinder is normally supplied with end-stroke cushioning, that can be regulated by means of a screw located on the end-cover.The Series 50 cylinders are recommended to be used according to the load values and torque forces detailed in the relative tables.

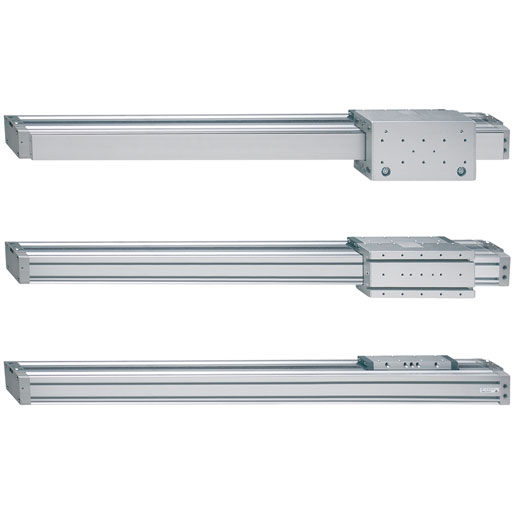

Rodless cylinders Series 52
Double-acting, magnetic, cushioned
Ø 25, 32, 40, 50, 63 mm
Series 52 rodless cylinders are available in 5 diameters (25, 32, 40, 50 and 63 mm) and comes in three main versions: Basic (M), with Slide bearing (G) and with Roller bearings (R).
Furthermore these three main versions are each available with either standard- or short carriage to cover a wider range of applications.
A permanent magnet is assembled on the piston allowing the position to be detected by means of proximity switches positioned in grooves located on 3 sides on the cylinder profile.
The cylinder is equipped with an end stroke cushioning which can be regulated by means of a screw located on each end cover of the cylinder.
These cylinders are also available in versions with air supply from one side (end cover) only if needed.
