Adapters in 316L stainless steel Series X2000
Series X2000 adaptors in AISI 316L stainless steel are available in several configurations to meet the customers’ needs in terms of reliability and adaptability.
They can be used in pneumatic, oil-pressure (at low pressure) and hydropneumatic systems and can be employed in many sectors including the food, chemical and medical industries.
Air brake fittings Series 9000
Tube external diameters: 4/2; 6/4; 8/6; 10/7; 10/7,5; 10/8; 12/9; 15/12; 16/12; 18/14; mm
Fittings threads metric cylindrical: M10x1; M12x1,5; M14x1,5; M16x1,5; M18x1,5; M22x1,5
BSP GAS: G1/8; G1/4
Conical: 1/8 NPTF; 3/8 NPTF

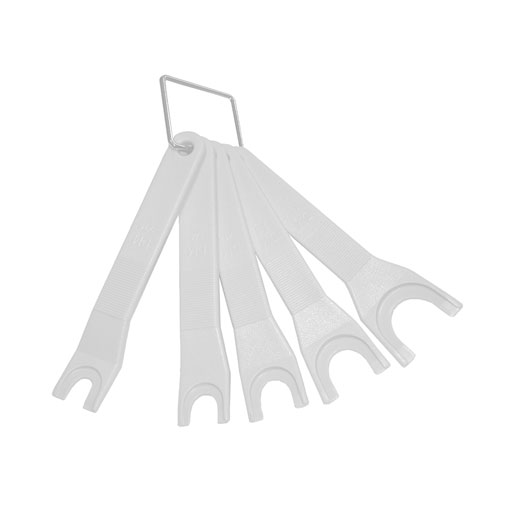

Series 9000 fittings have been designed to connect tubing according to DIN 74324 or ISO 7628 in the pneumatic brake systems of commercial vehicles. They offer excellent reliability and ease of assembly. The range includes a very compact release tool for disconnecting tubes from the fittings.
The tube interface is shielded by a rubber cap for protecting the internal parts against dirt and water ingress. The integrity level of the interface concept, even during disassembling, is outstanding.
The Series 9000 offers a smart portfolio of different types of connectors. Depending on the demands of our customers, we are also ready to provide customized solutions.
Series 9000 fittings are TÜV certified and produced according to IATF 16949:2016 standards.

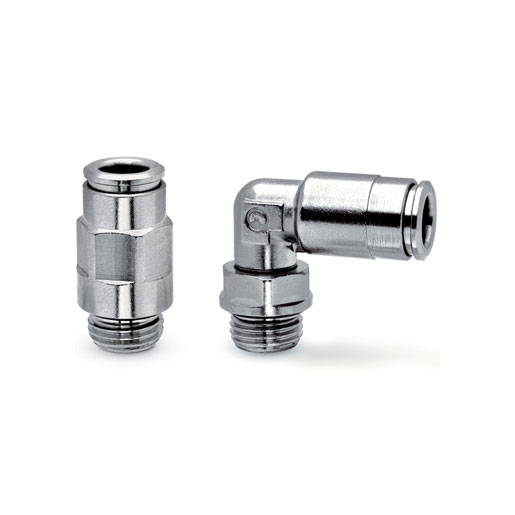

Brass dual seal super-rapid fittings Series 8000
Tube external diameters: 4, 6, 8, 10 and 12 mm
Fittings threads: BSP (G1/8, G1/4, G3/8, G1/2)
With its vast experience in manufacturing push-in connections for the pneumatics industry and its indepth research into fluid power systems,
Camozzi has developed Series 8000 super-rapid fitting evolving from Series 6000, which has been extensively tested in the pneumatic sector.
A patented additional seal provides a double tight on the tube, thus ensuring a highly reliable connection and avoiding any possible leakage that may occur.
Connection and disconnection of the tube can be repeated several times without the use of proper tools and without compromising the performance of the fitting ot the sealing on the tube.
The NBR seals are standard and can be easily replaced with FKM and EDM seals.

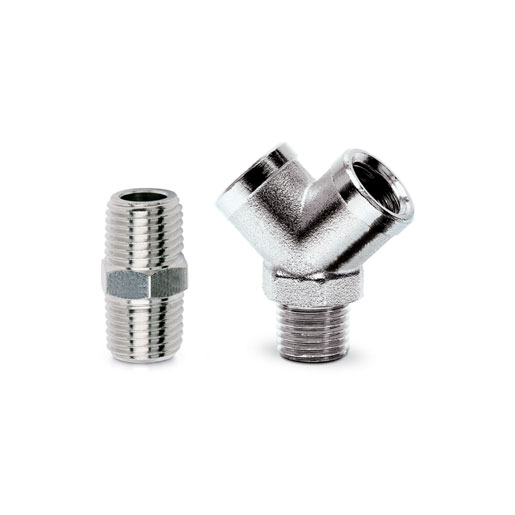

Brass pipe fittings Series 2000
Fittings threads: metric (M5), BSP (G1/8, G1/4, G3/8, G1/2, G3/4, G1), BSPT (R1/8, R1/4, R3/8, R1/2, R3/4, R1)
The wide range of Camozzi pipe fittings, which includes straight, L and Tee, Cross piece male or female couplings, guarantees the necessary support during the design of compressed air systems.

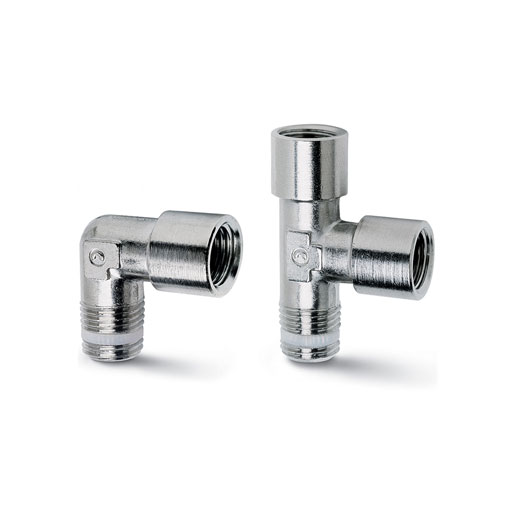

Brass pipe fittings Sprint® Series S2000
Fittings threads: BSP (G1/8, G1/4, G3/8, G1/2), BSPT (R1/8, R1/4, R3/8, R1/2)
Series S2000 pipe fittings are characterized by great reliability of female threads, both BSP and BSPT, with non-flat surfaces. The pantented Sprint models are provided with a particular torque system which avoids the use of liquid glues or PTFE band, making thus the mounting quicker.
Thanks to this system the connection and disconnection of the fitting can be repeated several times without compromising the seal on the thread.

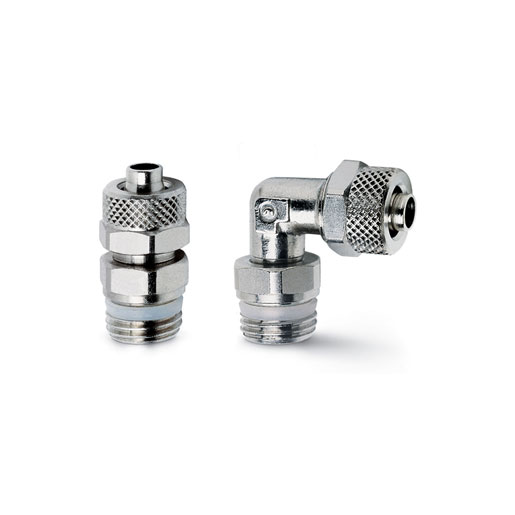

Brass rapid push-on fittings for plastic tubes Series 1000
Tube external diameters: 5/3, 6/4, 8/6, 10/8, 12/10, 15/12,5 mm
Fittings threads: metric (M5, M6, M12x1, M12x1,25),
BSP (G1/8, G1/4, G3/8, G1/2), BSPT (R1/8, R1/4, R3/8, R1/2)
Series 1000 rapid push-on fittings can be easily installed.
The push-in locking nuts can be tightened both manually and with a spanner even in case of stiff tubes like the PA or the Hytrel Polyester.
The special shape of the guiding cone ensures that the tube cannot be accidentally cut.

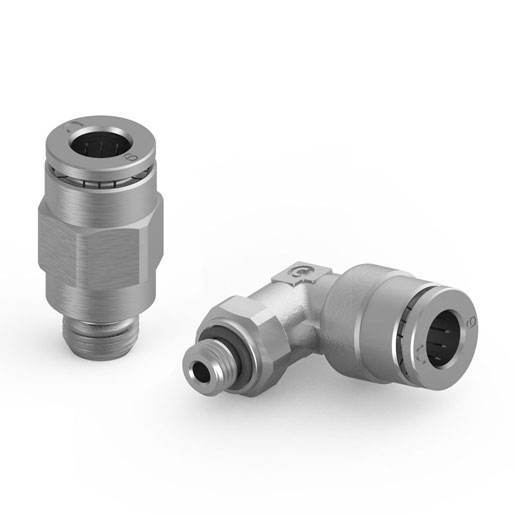

Brass super-rapid fittings for Lubrication Applications Series HP6000
Tube external diameters: 4, 6 mm ; Fittings threads: metric M5, M6x0,75, M6, M8x1, M10x1, M10, M12x1, M14x1.
ISO7 (BSPT): R1/8, R1/4. ISO-228 (BSPP): G1/8, G1/4
Series HP6000 is designed with a special collet that provides a long service life for lubrication and greasing systems for industrial and transportation applications.
Thanks to its easy connection and disconnection capability, robust and compact design as well as the materials used in its construction, these quick-connect fittings are ideal for high pressures up to 150bar.
The range is available with different threads (metric, ISO7 and ISO-228) and is suitable for use with rigid and semi-rigid tubes to meet different application needs.

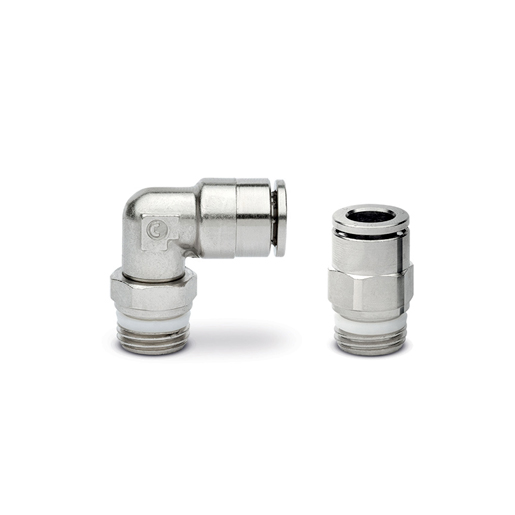

Brass super-rapid fittings for plastic tubes Series 6000
Tube external diameters: 3, 4, 5, 6, 8, 10, 12, 14, 16 mm
Fittings threads: metric (M3, M5, M6, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4), BSPT (R1/8, R1/4, R3/8, R1/2)
Series 6000 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long service life, also after connections and disconnections of the tube are repeated several times.
Many types of threads are also available: metric, BSP and BSPT.
The Sprint® models are characterized by great adaptability of male threads with BSP parallel (ISO-228) female threads even in the presence of non-flat or irregular surfaces.
This is possible thanks to a Teflon ring on the male thread, which guarantees a perfect seal between the two threads.
The wide range of these fittings includes the LF version ("Stop Fitting") which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.

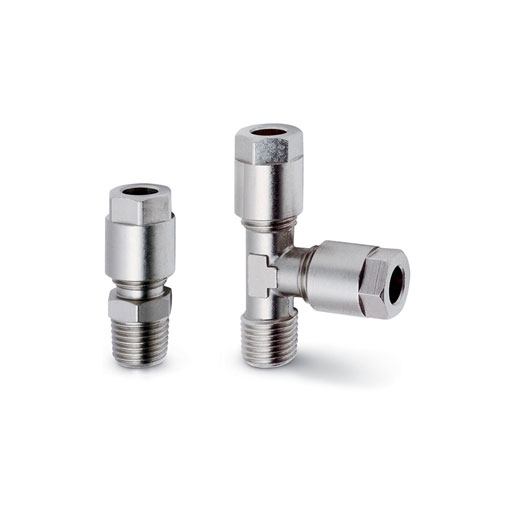

Brass universal nose fittings Series 1000
Nose fittings for plastic, copper and brass tubes: Ø 4, 6, 8, 10, 12 mm
Fittings threads: BSP (G1/8, G1/4), BSPT (R1/8, R1/4, R3/8, R1/2)
Series 1000 nose fittings are used with plastic tubes as well as with copper, brass, steel and aluminium tubes.
These fittings, which are suitable for several applications, can be used within pneumatic, oil-pressure and low-pressure hydraulic circuits.
The fittings seats, noses and nuts comply with the DIN 3870-3861 standards.

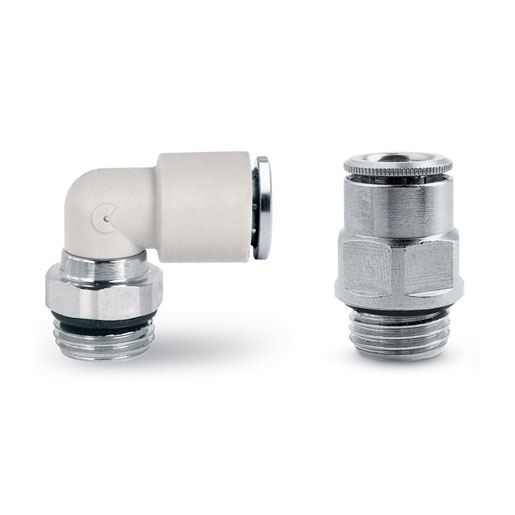

Fittings in technopolymer for water cooling applications Series 7000 Fluidics
Tube external diameters: 6, 8, 10, 12, 16 mm
Fittings threads: BSP (G1/8, G1/4, G3/8, G1/2, G3/4), M5
Series 7000 Fluidics push-in fittings enable smooth passage of fluids in cooling systems. Liquid cooling systems are considered to be better than air cooling, in terms of efficiency,
effectiveness, compactness and noise in a wide range of applications from computer servers to industrial equipment.
The Series 7000 Fluidics fitting range has been designed with a special technopolymer, based on renewable raw materials, that allows the component to resist water absorption, temperature variations and cooling liquid additives.
The material maintains constant dimensional stability in contact with different fluids and does not breakdown with age.
Advanced gripping characteristics make the Series 7000 Fluidics an excellent alternative to traditional fittings, guaranteeing a uniform tightening on the whole surface of the tube.
This enhances high reliability and resistance to repeated connections and disconnections of the tube. Reliable connection, compact dimensions and easy installation in confined spaces are only some of the features that make these new fittings an innovative solution for a wide range of cooling systems.

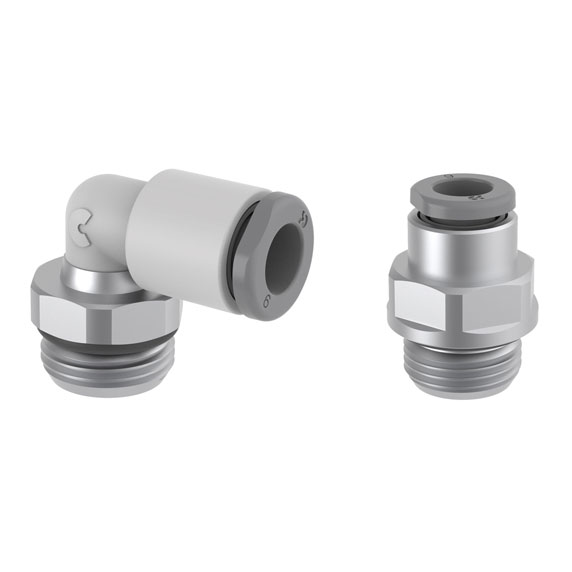

GRIPfit push-in fittings Series 7000 – Automation
Tube external diameters: 4, 6, 8, 10, 12, 16 mm
Fittings threads: ISO-965 Metric parallel (M5, M7, M10x1, M12x1,25),
ISO-7 BSPT (R1/8, R1/4, R3/8, R1/2),
ISO-228 BSPP (G1/8, G1/4, G3/8, G1/2).
Series 7000 Automation push-in fittings are made of reinforced technopolymer to meet the new market demands for reliability, ease of use and efficient solutions.
Their compact dimensions and lightweight make this new range of fittings ideal for most pneumatic applications associated with optimum gripping and sealing technologies.
