Quick exhaust valves in stainless steel Series XVSC
Quick-release couplings for the conditioning of moulds for plastics Series 5000L and 5000LT
Nominal diameters: 5, 7 mm
Couplings threads: G1/8, G1/4, G3/8
The Series 5000L and 5000LT couplings have been designed to connect tubes for water, air or oil, used within plastic injection and die casting moulds.
The Series 5000L and 5000LT couplings provide a quick connection and disconnection method for the replacement of heating and conditioning tubes directed towards the mould, as well as tubes coming from water collectors or sources.

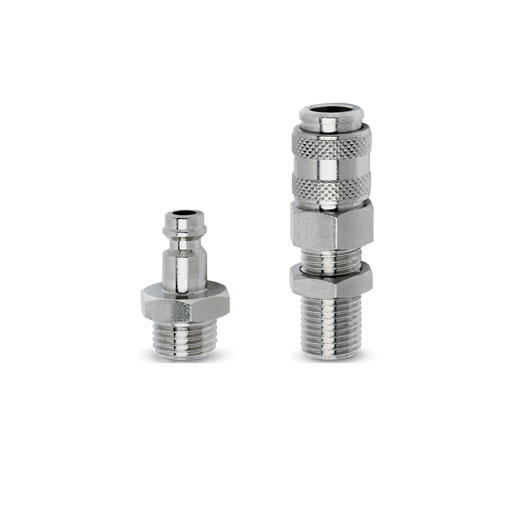

Quick-release couplings Series 5000
Nominal diameters: 5, 7 mm
Couplings threads: G1/8, G1/4, G3/8, G1/2
Plastic tubes: 6/4, 8/6, 10/8 ; rubber hoses: 6x14, 8x17, 10x19, 13x23
Series 5000 quick-release couplings are suitable in situations where, for plant engineering or safety reasons, the connection or disconnection of tubing must be repeated several times.
These operations can be performed with no need to release the pressure and therefore a considerable amount of time can be saved.
- Series 5000 quick-release couplings with mini-profile DN 5 are compatible with couplings Rectus Series 21 - 90, Legris 21.
- Series 5000 quick-release couplings with European profile DN 7 are compatible with couplings Cejn Series 320.
Rapid push-on fittings in 316L stainless steel
Super-rapid Compact fittings in technopolymer Series 7000
Tube external diameters: 4, 6, 8, 10, 12, 16 mm
Fittings threads: metric (M5, M7), BSP (G1/8, G1/4, G3/8, G1/2, G3/4)
Series 7000 super-rapid fittings are realized in technopolymer.
Compact and lightweight, they are suitable for applications where weight can be a key factor.
The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times.
The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.
Super-rapid fittings in stainless steel 316L Series X6000
Tube external diameters: 4, 6, 8, 10, 12 mm
Fittings threads: BSP (G1/8, G1/4, G3/8, G1/2), BSPT (R1/8, R1/4, R3/8, R1/2)
Series X6000 fittings have been designed to offer versatility and ease of installation without any compromise in quality or performance. They are suitable for applications in the pneumatics, fluids, chemical, medical, food and packaging industries.
Series X6000 fittings are practical and safe and allow the connection of fluids even in aggressive environments.
The collet ensures excellent grip between the fitting and tubing.
Tubes and spirals Series T
Tubes: reinforced PVC, Polyamide (PA) 12, Hytrel Polyester, Polyethylene (PE) , Polyurethane (PU).
Diameters: 4/2, 5/3, 6/4, 8/6, 10/8, 12/10, 15/12,5 mm
Camozzi offers a range of tubes and spirals with specific features which are suitable for several technical requirements.
Thanks to high-quality raw materials and with a low specific weight, these products are very small and lightweight. They also show high resistance against stress and flexural vibrations.
The high specularity of internal surfaces for the fluid passage (roughness of about 6 micron) allows to reduce the loosening of loads and to reach very high flows with same diameters.
Technopolymers used are particularly resistant to aging, thus ensuring the product a very long life.
