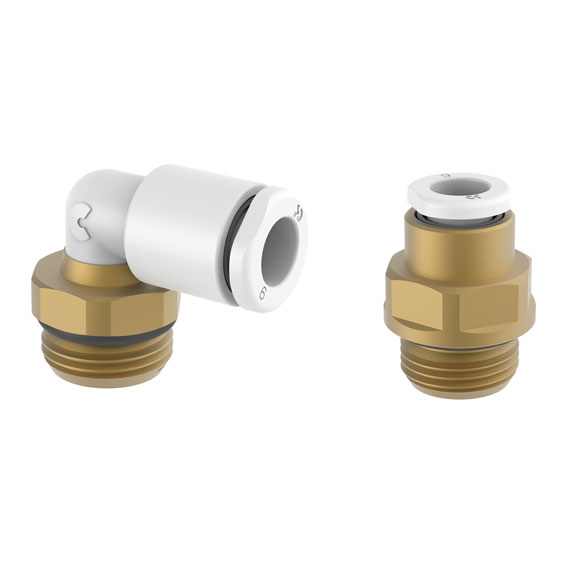

GRIPfit push-in fittings Series 7000 – Beverage and Water filtration
Tube external diameters: 4, 6, 8 mm
Fittings threads: ISO-228 BSPP (G1/8, G1/4, G3/8).
Series 7000 Beverage and Water filtration is a new range of push-in fittings made of reinforced bio-sourced technopolymer and low lead brass.
Thanks to the materials and new connection technology, these fittings are ideal for beverage dispensing and water filtration systems.

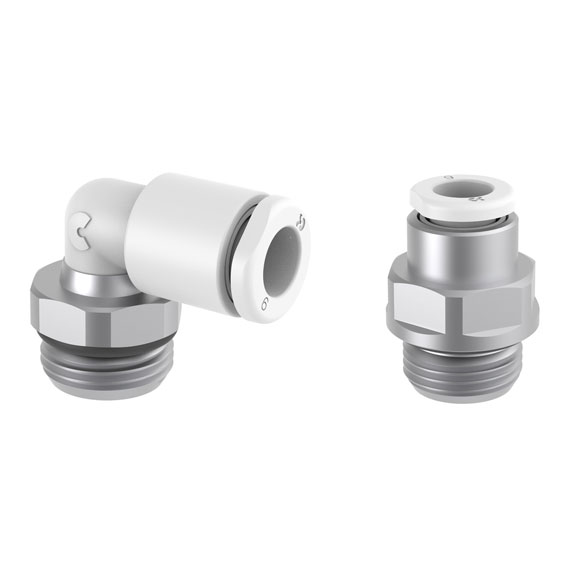

GRIPfit push-in fittings Series 7000 – Cooling
Tube external diameters: 6, 8, 10, 12, 16 mm
Fittings threads: ISO-228 BSPP (G1/8, G1/4, G3/8).
Series 7000 Cooling push-in fittings have been designed with a special technopolymer based on bio-sourced renewable raw materials that allow the component to resist water absorption, temperature variations and liquid cooling additives.

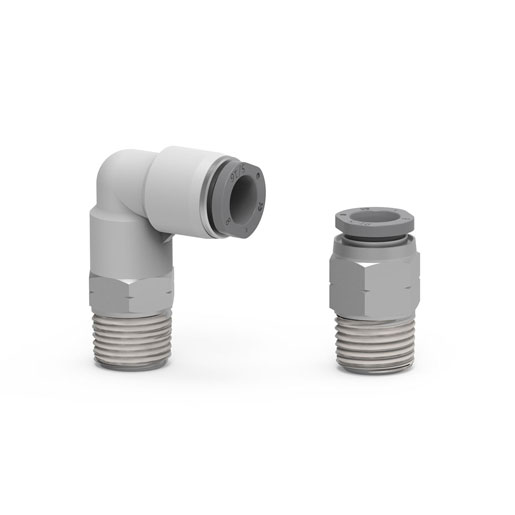

GRIPfit push-in Fittings Series 7000 – Inch
GRIPfit inch is the latest generation of push-in fittings developed to cover and satisfy the needs of industrial automation.
Made with high-performance materials, this new range of fittings is equipped with a flexible stainless steel gripping ring to facilitate the connection and disconnection of most semi-rigid tubes, limiting the effects of tube marking and guaranteeing a robust and reliable tightening on the whole surface of the tube.
GRIPfit inch is ideal for vacuum and low pressures both in static and dynamic applications, thanks to shaped sealing technology.
The materials used comply with the main standards and directives and have been designed to meet and adapt perfectly to the specific application requirements of each sector.
Reliable connection, compact dimensions and easy installation in confined spaces are only some of the features that make this new range of fittings an innovative solution for many applications.

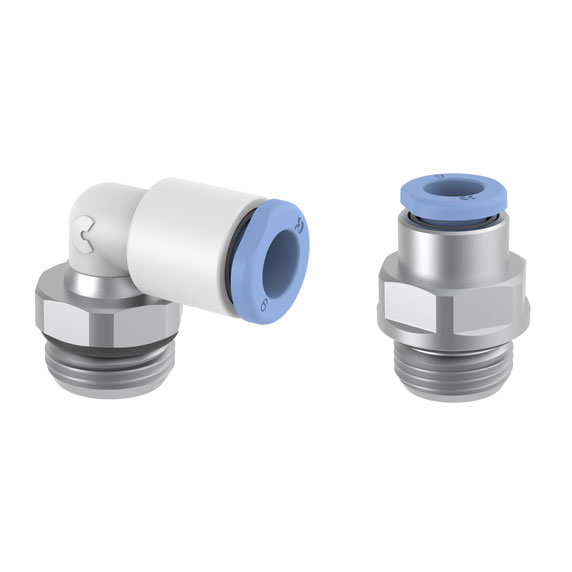

GRIPfit push-in fittings Series 7000 – Medical
Tube external diameters: 4, 6, 8, 10 mm
Fittings threads: ISO-228 BSPP (G1/8, G1/4),
ISO-965 Metric parallel (M5).
Series 7000 Medical push-in fittings are designed for the Life Science market, particularly for medical and analytical applications.
These fittings are mainly made from bio-based materials and are compatible with most medical gases and fluids.

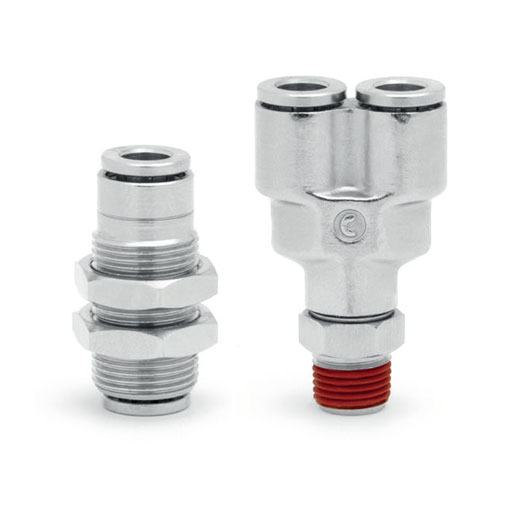

Nickel-Plated Brass DOT Fittings Series ND 6000 – Inch

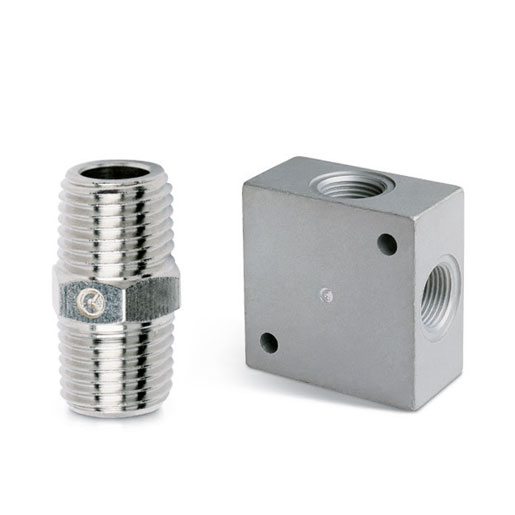

Nickel-Plated Brass Pipe Fittings Series 2000 – Inch
Thread Type: 10-32 UNF;
NPTF (1/8", 1/4", 3/8", 1/2");
Metric (M5);
BSP (G1/8, G1/4, G3/8, G1/2, G3/4, G1);
BSPT (R1/8, R1/4, R3/8, R1/2, R3/4).
When involved in factory maintenance or plant installation it is often difficult to be absolutely certain which size of fittings will be required.
Pipe fittings provide a cost effective solution to this problem.
The full range includes straight, L-shaped, T-shaped and cross piece male or female couplings and are available in a variety of thread sizes up to 3/4”.
The addition of the Camozzi Sprint® seal to twelve different models of pipe fittings eliminates the need to use liquid sealants or tape and save a considerable amount of time during installation.
The Sprint® fitting can be connected and disconnected several times.
Material: brass OT58 UNI 5705 (nickel-plated).
- T. min. - 40°C (- 40°F)
- T. max. + 120°C (250°F)

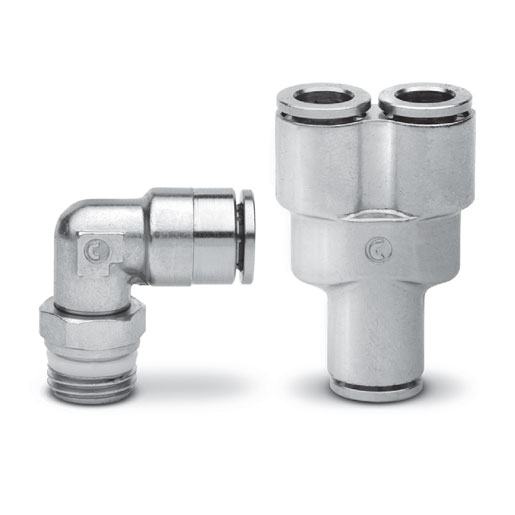

Nickel-Plated Brass Push-In Fittings Series 6000 – Inch
Tube diameter OD: 1/8", 5/32", 1/4", 5/16", 3/8", 1/2", 3, 4, 5, 6, 8, 10, 12, 14 or 16 mm
Thread type: 10-32 UNF, 1/8”, 1/4”, 3/8”, 1/2”, 3/4” NPTF, BSP, Pro-Fit® or Sprint®
(Reusable PTFE/Teflon thread seal)
Camozzi’s all metal fittings are 100% electrolytic nickel-plated brass.
Full ID tube flow is always maintained for maximum Cv ratings and quick cycle times.
“Push-in” and lock the tube quickly and effortlessly.
Fittings also available in coated thread sealant, Loctite Vibra-Seal 516 (use “C” prefix in part code, see tables for available models).
Connection and disconnection of the tube can be repeated several times and can be performed using one hand and without the use of tools.

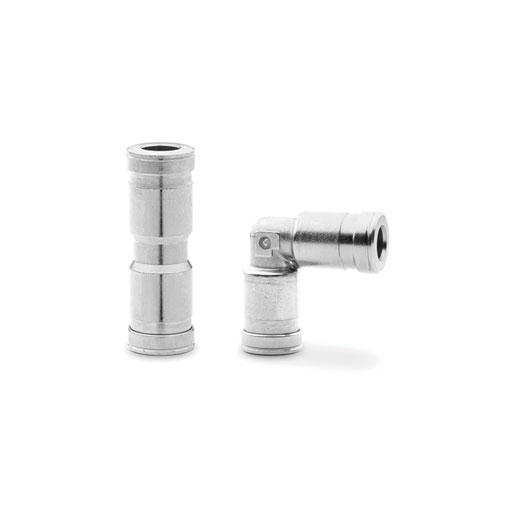

Nickel-plated dual seal super-rapid fittings Series H8000
Tube external diameters: 4, 6, 8, 10, 12 mm
Fittings threads: BSP (G1/8, G1/4, G3/8, G1/2)
Series H8000 fittings are designed to be used in particularly dirty and dusty working environments.
The patented system with double tightening on the tube guarantees a highly reliable connection and avoids any risk of leakage.
The special shape of the collar prevents the entry of impurities inside the fitting, guaranteeing performance over time, retention of the tube and easy connection and release.
Series H8000 fittings have a brass body, FKM seals for high temperatures (EPDM and NBR seals are also available) and can be used with pressures between -0.9 and 60 bar.

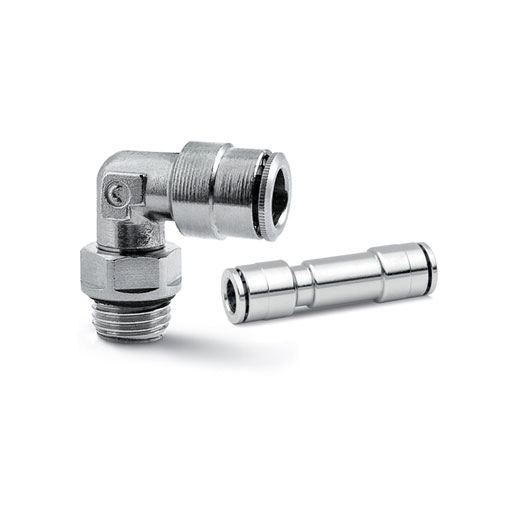

OX1 fittings and accessories for applications of medical gases Series OX1
Tube external diameters: Ø 4, 6 and 8 mm
Fittings threads: metric (M5), BSP (G1/8, G1/4), BSPT (R1/8, R1/4)
OX1 fittings are designed for the Life Science market, particularly for medical and analytical applications.
Equipment manufacturers of Ventilators, Anaesthesia devices, Oxygen Concentrators, Mass Spectrometry or Bio Medical analysers have qualified the Series OX1 fittings for many years.
- OX1 Products Cleanliness level: Non volatile residue equal to or less than 550 mg/m2.
- Level OX1: ultrasonic cleaning of components, inspection with UV black light, lubrication with a specific grease suitable to be used with oxygen.
- Serie 6000 OX1 push in fittings: Series 6000 OX1 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long service life, also after connections and disconnections of the tube are repeated several times.
- Series VNR OX1 unidirectional valves: They are available with Integrated Push-in Fittings. Thanks to their construction they operate at low pressure.
- Series 2000 OX1 brass pipe fittings: The wide range of Camozzi pipe fittings, which includes straight, L and Tee, male or female couplings, guarantees the necessary support during the design of medical and analytical systems.
