OX1 fittings and accessories for applications of medical gases Series OX1
Tube external diameters: Ø 4, 6 and 8 mm
Fittings threads: metric (M5), BSP (G1/8, G1/4), BSPT (R1/8, R1/4)
Fittings threads: metric (M5), BSP (G1/8, G1/4), BSPT (R1/8, R1/4)
OX1 fittings are designed for the Life Science market, particularly for medical and analytical applications.
Equipment manufacturers of Ventilators, Anaesthesia devices, Oxygen Concentrators, Mass Spectrometry or Bio Medical analysers have qualified the Series OX1 fittings for many years.
Equipment manufacturers of Ventilators, Anaesthesia devices, Oxygen Concentrators, Mass Spectrometry or Bio Medical analysers have qualified the Series OX1 fittings for many years.
- OX1 Products Cleanliness level:
Non volatile residue equal to or less than 550 mg/m2. - Level OX1: ultrasonic cleaning of components, inspection with UV black light, lubrication with a specific grease suitable to be used with oxygen.

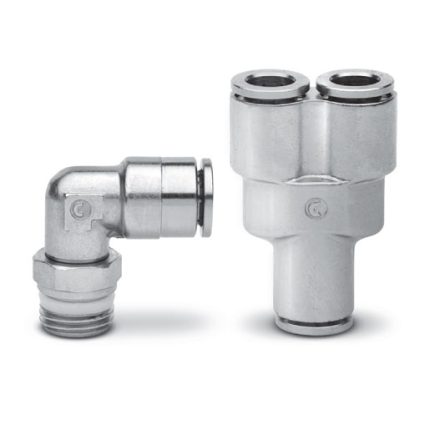

- Serie 6000 OX1 push in fittings: Series 6000 OX1 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long service life, also after connections and disconnections of the tube are repeated several times.
- Series VNR OX1 unidirectional valves: They are available with Integrated Push-in Fittings. Thanks to their construction they operate at low pressure.
- Series 2000 OX1 brass pipe fittings: The wide range of Camozzi pipe fittings, which includes straight, L and Tee, male or female couplings, guarantees the necessary support during the design of medical and analytical systems.
General Data
| Series 6000 | ||||||
| Diameter | Ø 4, 6 and 8 mm | |||||
| Threads | GAS cylindrical ISO 228 (BSP); M5 | |||||
| Temperature | -10 °C ÷ 80 °C (see the technical data of tubing used) | |||||
| Tube to connect | Polyamide (PA) 6 – 11 – 12, Polyurethane (PU), Fluoropolymer (FEP) | |||||
| Medium | Oxygen, Medical Gazes, Compressed Air or Other low pressure fluids | |||||
| Materials | Standard models: body and collet in nickel-plated brass, O-ring with FKM with Oxygen suitable grease. | |||||
| Working pressure | Standard models: min -0,9 bar – max 16 bar (see tubing) | |||||
| Series VNR | ||||||
| Valve group | Automatic valves | |||||
| Construction | Poppet-type | |||||
| Materials | Brass body Stainless steel spring FKM seals |
|||||
| Mounting | In any position | |||||
| Dimensions tube version | Ø 4, 6, 8 mm | ø 4 – 6 – 8 mm | Ø 4, 6, 8 mm | |||
| Operating temperature | 0 °C ÷ 80 °C | 0°C ÷ 80°C | ||||
| Fluid | Oxygen, Medical Gases, Compressed Air or Other low pressure fluids | |||||
| Series 2000 | ||||||
| Threads | GAS conical ISO 7 ( BSPT ) GAS cylindrical ISO 228 ( BSP ) |
|||||
| Temperature | -40 °C ÷ 120 °C | |||||
| Fluid | Oxygen, Medical Gases, Compressed Air or Other low pressure fluids | |||||
| Materials | Nickel-plated brass | |||||
| Working pressure | 80 bar | |||||
