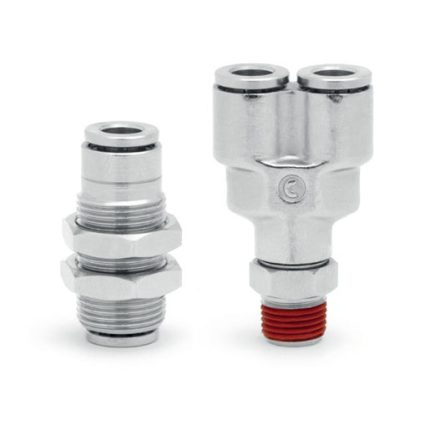

Nickel-Plated Brass Push-In Fittings Series 6000 – Inch
Tube diameter OD: 1/8″, 5/32″, 1/4″, 5/16″, 3/8″, 1/2″, 3, 4, 5, 6, 8, 10, 12, 14 or 16 mm
Thread type: 10-32 UNF, 1/8”, 1/4”, 3/8”, 1/2”, 3/4” NPTF, BSP, Pro-Fit® or Sprint®
(Reusable PTFE/Teflon thread seal)
Thread type: 10-32 UNF, 1/8”, 1/4”, 3/8”, 1/2”, 3/4” NPTF, BSP, Pro-Fit® or Sprint®
(Reusable PTFE/Teflon thread seal)
Camozzi’s all metal fittings are 100% electrolytic nickel-plated brass.
Full ID tube flow is always maintained for maximum Cv ratings and quick cycle times.
“Push-in” and lock the tube quickly and effortlessly.
Full ID tube flow is always maintained for maximum Cv ratings and quick cycle times.
“Push-in” and lock the tube quickly and effortlessly.
Fittings also available in coated thread sealant, Loctite Vibra-Seal 516 (use “C” prefix in part code, see tables for available models).
Connection and disconnection of the tube can be repeated several times and can be performed using one hand and without the use of tools.
General Data
| Material | Body and collet: nickel-plated brass, (UNI 5705 OT58) O-Ring: NBR (standard); Viton and EPDM available on request thread seal: PTFE – NBR – PA; Loctite Vibra-Seal 516 (red) |
| Threads | 10-32 UNF, 1/8”, 1/4”, 3/8”, 1/2” NPTF, Pro-Fit® M3 – M5 – M7 – G1/8 – G1/4 – G3/8 – G1/2 – G3/4 , Sprint® , GAS conical ISO 7 (BSPT), GAS cylindrical ISO 228 (BSP) *M5-M6 and other metric threads available on request |
| Pressure | min -0,9 bar – max 16 bar (28” Hg vacuum to 250 psi) (see tubing) |
| Tube to connect | Nylon 6, 11 or 12, polyethylene, PU, (Polyurethane recommended 90A durometer and above) Hytrel Polyester |
| Tube diameter | Inch tubing: 1/8” – 5/32” – 1/4” – 5/16” – 3/8” – 1/2” Metric tubing: ø 3 – 4 – 5 -6 – 8 – 10 – 12 – 14 – 16 mm |
| Fluid | compressed air (for other types of fluid, contact our engineers) |
| Temperature [°C] | -20°C – 80°C , -4 F to 175 F (see data for tubing used) Micro: -10°C – 80°C (14 F to 175 F) (see data for tubing used) |
