Stainless steel mini-cylinders Series 94 and 95
Single-acting and double-acting, magnetic
Series 94: ø 16, 20, 25 mm
Series 95: ø 25 mm, cushioned
Series 94: ø 16, 20, 25 mm
Series 95: ø 25 mm, cushioned
The Series 94 and 95 cylinders can be used in critical applications in which a high corrosion resistance is required (for example off-shore, marine, food).
Their construction enables the replacement of all seals.
Series 95 is normally equipped with adjustable end-stroke cushioning by means of a screw on the end block.
In addition both Series 94 and 95 are equipped with a mechanical cushioning in order to make the impact of the piston less noisy as it reaches the end of the stroke.
RELATED PRODUCTS
Anti-rotation guide units Series 45
Suitable for cylinders:
- DIN/ISO 6432 (Ø 12, 16, 20, 25 mm)
- ISO 15552, previous DIN/ISO 6431 (Ø 32, 40, 50, 63, 80, 100 mm)
Series 45 guide units can be used with all DIN/ISO 6432 cylinders of Ø 12 ÷ Ø 25 and ISO 15552, previous DIN/ISO 6431, cylinders of Ø 32 ÷ Ø 100.
They have been developed in order to prevent piston rod rotation and can support possible radial loads.
Series 45 guide units are available in three different models depending on the applicable loads.
The UT and HT guides with crawling supports are self lubricating, while HB guides have a ball bush.
To ensure the right choice of the loads in relation to the stroke, please refer to the graphs.
The shorter the stroke the higher will be the applicable loads.
Cylinders Aluminium profile Series 61
Single and double-acting, magnetic, cushioned
Standard, low friction, low temperatures and tandem versions
Ø 32, 40, 50, 63, 80, 100, 125 mm
Series 61 cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
A permanent magnet, mounted on the piston in these cylinders, enables information to be received regarding the piston position by means of proximity switches mounted in grooves along the cylinder profile.
These grooves can be covered with a slot cover profile.This cylinder series is equipped with adjustable end-stroke cushioning.
Moreover, they are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.
Positioning Feedback Cylinders ISO 15552 Series 6PF
Double-acting low friction, magnetic
Ø 50, 63, 80, 100, 125 mm
Series 6PF pneumatic actuators are equipped with a potentiometric linear position transducer integrated inside the rod.
This type of cylinder allows, along the entire stroke, a constant control of the rod position which is read processing the change of the transducer internal resistance.
The pistons have been equipped with a permanent magnet which enables the use of external end-stroke sensors.
The dynamic seals are specific for low friction.
Thanks to the electrical connection, realized by means of an M12 male electric round connector positioned on the rear head, these cylinders fulfil the standards of IP67 protection class.
Series 6PF cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
They are available with bores from 50mm to 125mm with standard strokes from 50mm to 1000mm with intervals of 50mm.
The sturdy design, the flexible installation and the high performance make Series 6PF suitable for use in applications with tensioning cylinders, positioning cylinders and filling, cutting and measuring systems.
Short-stroke cylinders Series QP – QPR
Series QP: single and double-acting, magnetic
Series QPR: double-acting magnetic, non-rotating
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Series QP - QPR cylinders are available in 10 bore sizes, from Ø 12 to Ø 100.
Their compact dimension allows the installation in small spaces.
Because of their particular construction, they can be mounted by means of feet or trunnion.
The guides are manufactured in the external profile parallel to the sliding axis on three sides.
These are used to locate the switches that sense the piston position.
The non rotating guides make the QPR suitable for supply operations and for handling equipment.

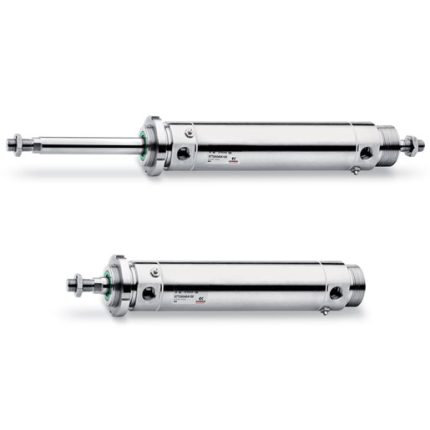

Stainless steel cylinders Series 97
Single- and double-acting, cushioned, magnetic.
Ø 32, 40, 50, 63 mm
Series 97 stainless steel cylinders can be used in critical applications where a high level of corrosion resistance is required (for example: off-shore, naval, food industries).
These cylinders are normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.
