Stainless steel cylinders Series 97
Single- and double-acting, cushioned, magnetic.
Ø 32, 40, 50, 63 mm
Ø 32, 40, 50, 63 mm
Series 97 stainless steel cylinders can be used in critical applications where a high level of corrosion resistance is required (for example: off-shore, naval, food industries).
These cylinders are normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.
RELATED PRODUCTS
Compact cylinders Series 31
Double and single-acting, double-acting non-rotating, magnetic
Ø 12, 16, 20, 25 mm
Ø 32, 40, 50, 63, 80, 100 mm UNITOP

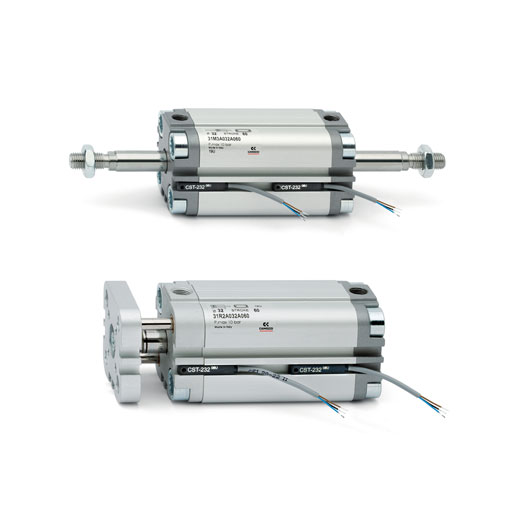

The compact dimensions allow Series 31 single and double-acting magnetic cylinders to be installed within confined spaces.
These cylinders are suitable for use with feet, brackets.These cylinders are available in 10 different bore sizes from Ø12 to Ø100.
The guides are inserted in the external profile parallel to the sliding axis on three sides.
These guides are used to locate the switches that sense the piston position.
The construction design of these cylinders provides excellent axis stability.
They are available either with a male or female thread.
These cylinders can be supplied in W version for high temperatures (140°C).
This last version is not magnetic.
Compact cylinders, Tandem and Multi-position versions Series 31
Double-acting, magnetic
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
The compact dimensions allow Series 31 cylinders to be installed within very small spaces. These cylinders are suitable for use with feet, flange and trunnion mountings.
In order to complete the compact cylinder series, two new versions have been introduced: tandem and multi-position. The new Tandem version with 2, 3 or 4 stages generates a thrust force which is 2, 3 or 4 times that of the normal cylinder (standard traction force).
The Multi-position version allows a maximum of 3 different positions which are determined by the stroke of the individual actuators.
Cylinders Series 40K
Double acting, cushioned, magnetic
Ø 160 - 200 - 250 - 320 mm
Series 40K cylinders comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
A permanent magnet on the piston of these cylinders is able to send, through proximity switches mounted on the cylinder sliding axis, electrical signals to indicate its position.This series is normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
Cylinders with integrated guide Series QC
Double-acting, magnetic piston, guided
ø 20, 25, 32, 40, 50, 63 mm
These actuators, suitable for use in very limited space, are available in two versions.
- QCT version: with sintered bronze bushes, suitable when the side loads applied to the cylinder are high.
- QCB version: with linear ball bearings, suitable for high precision and fast cycling applications.
Short-stroke cylinders Series RPA
Double-effect, magnetic
With hollow through rod and mounting stud
Bores: 20 and 30 mm
The Series RPA short stroke cylinders are double acting actuators with aluminium hollow through rod and mounting stud. Available in two sizes, Ø 20 and Ø 30 mm, with different strokes and dimensions of the mounting stud, these actuators are equipped with the non-rotating function of the rod.
The Series RPA are prepared for the mounting of magnetic sensors (Series CSD), in fact, on the external profile, along the cylinder tube, you can find sensor positioning slots.
Their compact and light design together with the adopted technical solutions make these cylinders suitable to be used, combined with suction pads, in End Of Arm Tooling (EOAT) systems, especially in the sector of plastic injection moulding.
