Showing 1–12 of 14 results
Flow control valves
Flow control valves in 316L stainless steel Series XRFU and XRFO

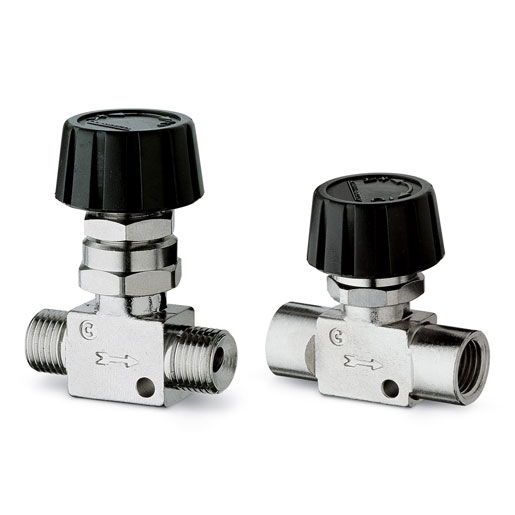

Flow control valves Series 28
Bidirectional
Ports: G1/8, G1/4, G3/8, G1/2
These are bidirectional control valves made entirely of nickel-plated brass, with NBR seals and a technopolymer control knob.
They are suitable for regulating compressed air, water or mineral oil.
For models 2810, 2820, 2819 and 2829 exists the possibility to connect plastic, brass or copper tubes, using nut Mod. 1303 and cushion sleeve Mod. 1310/1320.

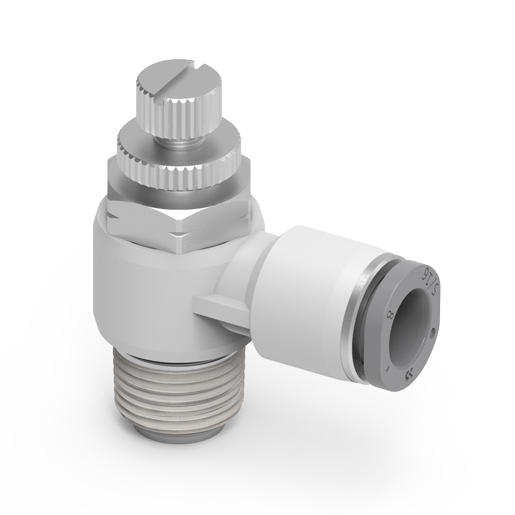

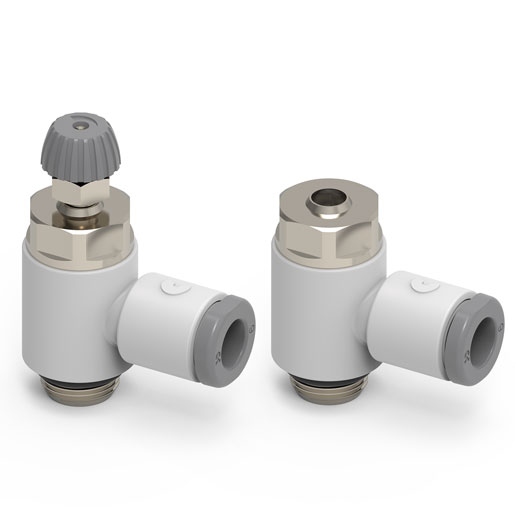

Flow control valves Series CLFB, CLFC
Unidirectional and bidirectional flow regulators with in technopolymer (G1/8, G1/4, G3/8)
Ports: M5, G1/8, G1/4, G3/8These unidirectional and bidirectional flow control valves are designed to be directly mounted on valves or cylinders with only a small footprint.
The wide range of swivel fittings allows to complete the flow control valve with the most suitable configuration based on the type of tube used.
All models are supplied with a swivel fitting.

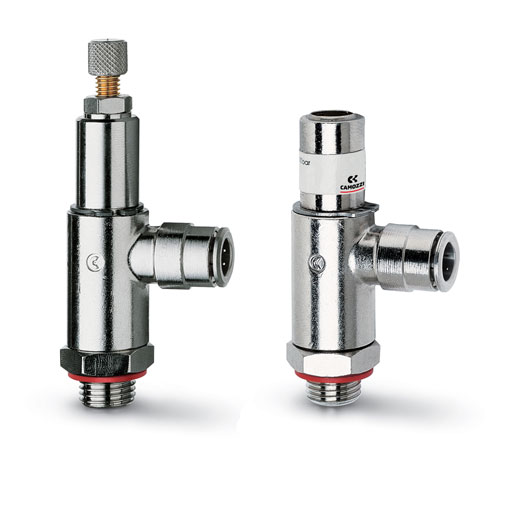

Flow control valves Series GSCU, GMCU, GSVU, GMVU, GSCO, GMCO
Unidirectional and bidirectional banjo flow controllers with nominal diameter 1,5 - 3,5 - 5 mm
Ports: M5, G1/8 and G1/4
These unidirectional and bidirectional flow controllers have been designed as small as possible to enable mounting directly on valves or cylinders.
The flow regulation range is wide and gradual, allowing the regulation to be very accurate either at minimum or maximum flow.

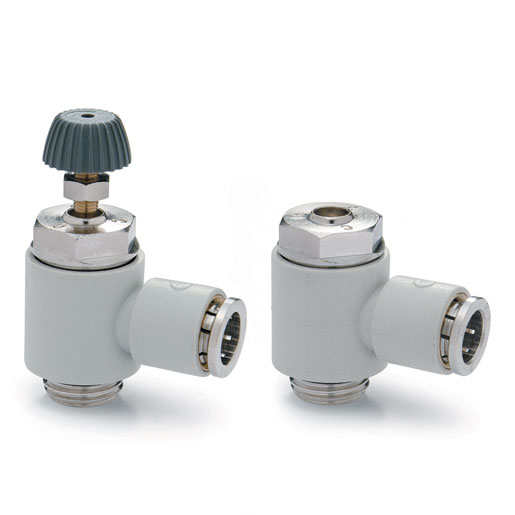

Flow control valves Series PSCU, PMCU, PSVU, PMVU, PSCO, PMCO
Unidirectional and bidirectional flow regulators with banjo in brass (M5) or in technopolymer (G1/8, G1/4, G3/8)
Ports: M5, G1/8, G1/4, G3/8
These unidirectional and bidirectional flow controllers have been designed as small as possible so as to be mounted directly on valves or cylinders.
The great variety of adjustable fittings makes it possible to complete the regulator with the most suitable system in relation to the available tube.
All models are supplied complete with banjo flow controllers.

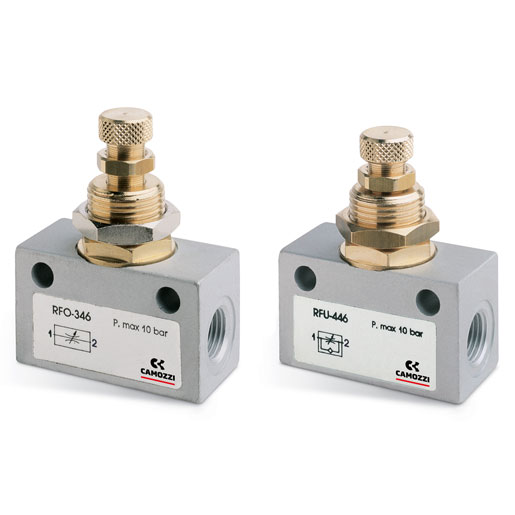

Flow control valves Series RFU and RFO
Unidirectional and bidirectional
Ports: M5, G1/8, G1/4, G3/8 and G1/2
Nominal diameters: 1,5 mm (M5), 2 and 3 mm (G1/8),
4 and 6 mm (G1/4), 7 mm (G3/8 and G1/2)
The unidirectional flow controllers are equipped with M5, G1/8, G1/4, G3/8 and G1/2 ports.
G1/8 and G1/4 ports are available with two different types of adjustment, whereas M5, G3/8 and G1/2 ports have just one type of adjustment.
All models can be panel or wall mounted or they can be mounted on cylinders, as required.To choose the most suitable model, it is recommended to:
- Calculate the quantity of air in Nl/min
- Determine the stroke time of the cylinder
- Check the flow diagrams.

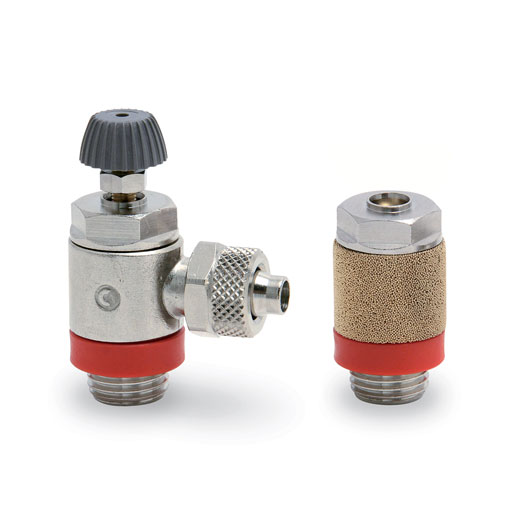

Flow control valves Series SCU, MCU, SVU, MVU, SCO, MCO
Unidirectional and bidirectional banjo flow control regulators
Ports: M5, G1/8, G1/4, G3/8, G1/2
These unidirectional and bidirectional flow controllers have been designed as small as possible so as to be mounted directly on valves or cylinders.
The great variety of adjustable fittings makes it possible to complete the regulator with the most suitable system in relation to the available tube.
Only the G1/2 model is supplied complete with banjo flow controllers.
For the other models the banjo flow controller is to be requested separately.

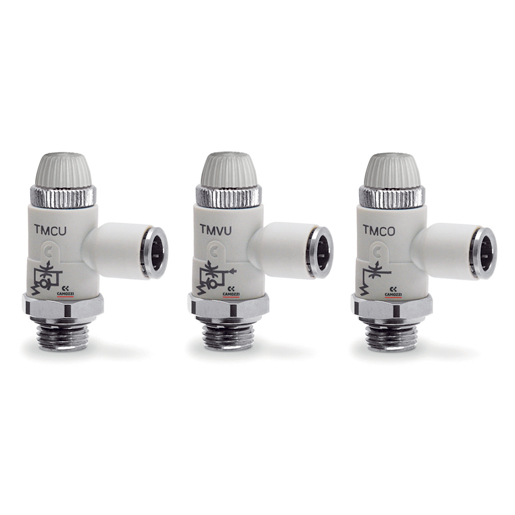

Flow control valves Series TMCU, TMVU, TMCO
Unidirectional and bidirectional banjo flow controllers with nominal diameter 2 - 3,8 - 5,8 - 8 mm
Ports: G1/8, G1/4, G3/8, G1/2
Series TMCU, TMVU, TMCO unidirectional and bidirectional flow controllers have been revised in order to decrease their dimensions and improve their flow rate characteristics. Their construction allows for easy assembly to cylinders and valves and allows the regulation adjustment to be precise and gradual.

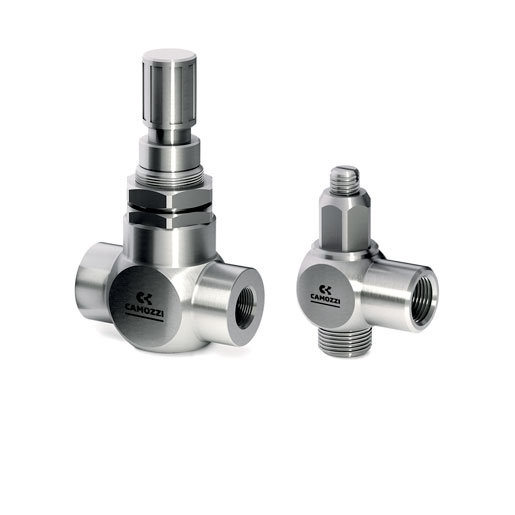

Flow regulators in 316L stainless steel Series XSCU, XSCO, XMFU and XMFO
