Gearboxes and Coupling

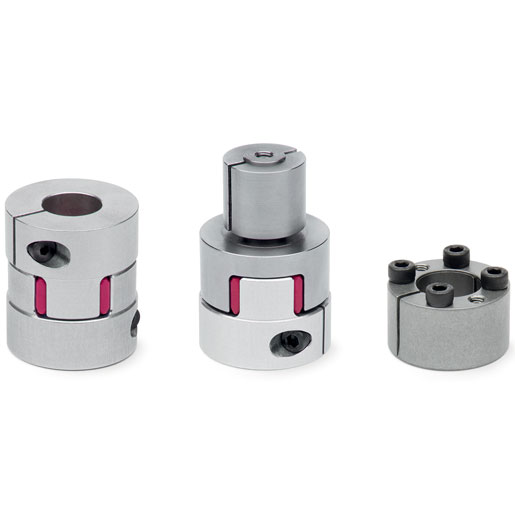

Motion transmission devices Series CO
Mod. COE: elastomer coupling with clamps
Mod. COS: elastomer coupling with expansion shaft
Mod. COT: self-centering locking-set
The motion transmission devices are necessary for a proper connection of electromechanical axes and cylinders with motors or gearboxes.
Mod. COE couplings are composed of two hubs with a high concentricity clamp and an elastomeric element.
Mod. COS couplings are composed of one hub with a high concentricity clamp, a hub with expansion shaft and an elastomeric element.
The torque transmission is performed without angular play or vibrations. Both couplings are without angular play thanks to the pretensioning of the elastomer between the two semi-couplings.
Mod. COT locking-sets are composed by an internal and an external conical ring connected with eachother by means of several screws. Through the tightening of the screws, an axial force is generated that enables the torque transmission from the shaft to the hub.

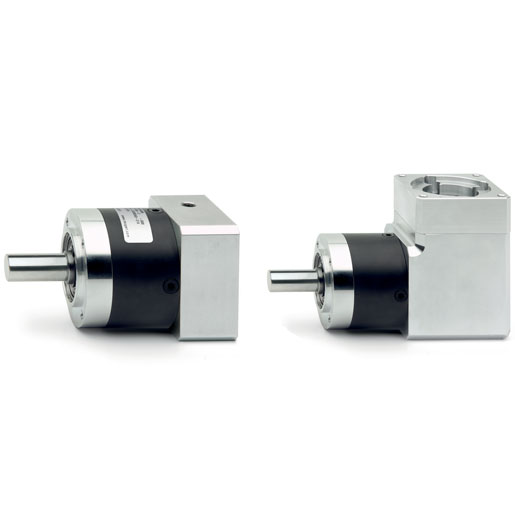

Planetary gearboxes Series GB
Available sizes: 40, 60, 80, 120
The Series GB planetary gearboxes, by means of a planetary gear system, enable the reduction of the angular speed and the increase of transmittable torque. These gearboxes can be used with the Series 5E and 5V electromechanical axes and with the Series 6E electromechanical cylinders.
Available in 4 sizes with 4 different reduction ratios, the Series GB planetary gearboxes can be supplied in two different configurations, in-line or orthogonal.
All gearboxes are equipped with interface flanges for the connection to the Camozzi Series MTB and Series MTS motors.
