Ready for Industry 4.0

New features and tools make the R-Series V position sensors ideal for Industry 4.0 applications. The new generation is, among others, characterized by the following features:



• Adaptive to a variety of applications
• Additional sensor parameters are available
• Evaluate more parameters while the application is continually running with the Sensor Smart Assistants TempoLink^® and TempoGate^®

Your benefits:

• Better understanding processes inside your application
• Better predictive maintenance schedules
• Avoidance of unplanned downtime



---

More Performance

R-Series V position sensors offer improved performance. The technology in the sensor housing has been optimized, so that more and more precise data can be retrieved from the application. Minimal resolution of 0.5 µm Jitter ± 2,5 µm Update rate up to 4 kHz PROFINET, EtherNet/IP™ , SSI, POWERLINK, EtherCAT^®, Analog Measurement of up to 30 position magnets simultaneously Your benefits: Extreme accuracy in position measurement, even in highly dynamic applications One sensor only for multi-position-measurement for compact construction for the application Increased productivity of your application.

---

Reliable

R-Series V position sensors are more robust than ever. The improved resistance is made possible by using new components and increases the reliability of the application.



• Extended operating temperature from -40...+85 °C
• Larger voltage supply range from  12...30 VDC ± 20 % (9.6...36 V)
• Increased vibration resistance up to 30 g
• Increased shock resistance up to 150 g

Your benefits:

• Precise and reliable position measurement with maximum application possibilities
• No additional actions by the customer to protect the sensor against the harsh environment



---

Compatible

R-Series V position sensors are backward compatible. This means that R-series sensors that are installed in existing applications can, if required, be replaced by sensors of the new generation.



• Proven mechanical connections and designs
• Proven electrical connection types and designs
• Well-known high performance and quality

Your benefits:

• No mechanical modifications necessary to integrate R-Series V
• No electrical modifications necessary to install R-Series V
• Benefit easily from the new features of R-Series V
• Smaller sensor housing for Industrial EtherNet sensors for compact construction of your application

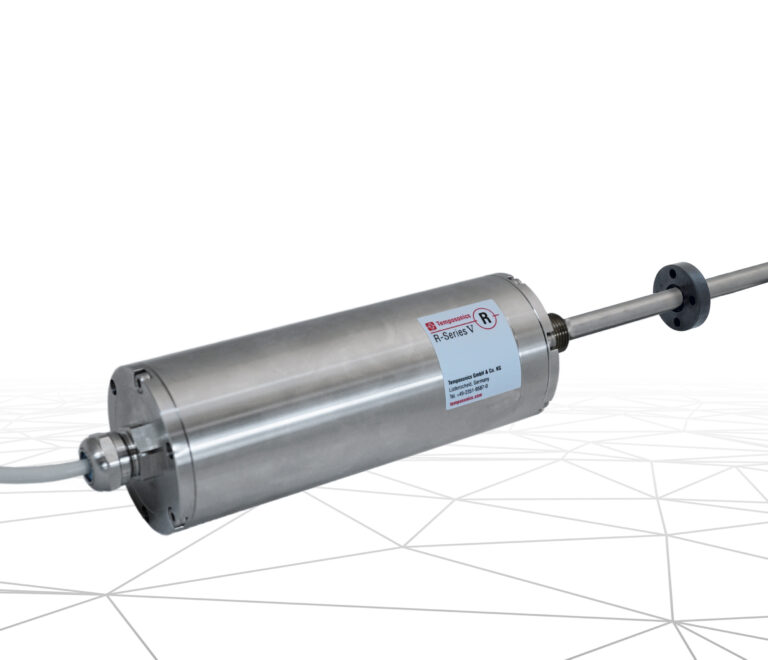

High-performance position sensor with great distance between sensor electronics and sensor rod

• Space-saving installation due to detached sensor electronics housing
• Backwards compatible with RD4 generation
• Higher Performance: Maintains the R-Series V platform benefits including Industry 4.0 diagnostics
• Higher Temperature: Sensing rod supports 120 C with electronics mounted up to 20 meters away
• Easier maintenance: Swappable spare electronics and M12 panel mount connector option
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Applications: industrial applications in harsh environment, wind mills, metal working plants

Flexible superior performance sensor for long stroke lengths up to 20,000 mm

• Flexible sensor rod
• Convenient shipping for long stroke lengths
• Backward compatible
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT^®
• Output of additional status information of the position sensor via the TempoLink^® smart assistant or TempoGate^® smart assistant

The new generation of high performance rod-style sensors for demanding in-cylinder applications

• Backward compatible
• Increased operating temperature up to +85 °C (+185 °F)
• Increased shock & vibration resistance
• Improved performance with high accuracy & reliability
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT^®
• Output of additional status information of the position sensor via the TempoLink^® smart assistant or TempoGate^® smart assistant

NOW ALSO AVAILABLE WITH FLEXIBLE SENSING ELEMENT!

For installation in cabinets - for the R-Series V

The TempoGate^® smart assistant supports the integration of the sensor into the application. It operates as smart assistant between the sensor and the user providing following information for diagnosing the sensor:

• Current parameter settings such as the resolution and the measurement direction
• Internal sensor temperature
• Total operating hours
• Distance traveled by the position magnets
• Sensor information such as the order code and serial number

The TempoGate^® smart assistant is designed for the permanent integration into control cabinets and supports all R-Series V sensors with smart diagnostics and operating statistics. Up to 24 R-Series V sensors with digital output (EtherCAT^®, EtherNet/IP™, POWERLINK, PROFINET and SSI) or, soon, up to 12 R-Series V analog sensors can be connected to the smart assistant. Once connected via power supply, the sensors and the assistant can communicate bidirectional. Via the integrated OPC UA server, this data can also be transmitted to other devices via OPC UA during operation. This allows the user to monitor additional sensor parameters and combine this information with other machine status data. In addition, the data can be tranfered via LAN or Wi-Fi to a graphical user interface on the smartphone, tablet or computer The Temposonics^® R-Series V position sensors, in conjunction with the TempoGate^®, provide the operator with detailed information to improve machine performance, optimize maintenance cycles and detect problems early to increase machine operating availability. Data Sheet (552110 Rev A) Operation Manual (552087 Rev A) TempoGate^® Firmware 1.5.26

Compact and portable - for the R-Series V

  The TempoLink^® smart assistant supports the integration of the sensor into the application. It operates as smart assistant between the sensor and the user providing following information for diagnosing the sensor:

• Current parameter settings such as the resolution and the measurement direction
• Internal sensor temperature
• Total operating hours
• Distance traveled by the position magnets
• Sensor information such as the order code and serial number

The TempoLink^® smart assistant is designed for portable use and, thanks to its compact design, fits in any pocket. It displays the user interface on the smartphone, tablet or computer via an integrated WLAN access point, so access to the company network is not necessary. The connection and communication between the sensor and the assistant is established via power supply. The Temposonics^® R-Series V position sensor, in conjunction with the TempoLink^®, provides operators with detailed information to improve machine performance, optimize maintenance cycles and detect problems early to increase the machine operating availability. Data Sheet (552070 Rev E) Operation Manual (551986 Rev E) TempoLink^® Firmware 1.5.29
