Air treatment
3/2-way quick exhaust safety valves Series MD SAFEMAX
Series MD SAFEMAX solenoid valves are equipped with an integrated sensor that detects the position of the spool and enables to quickly exhaust the system in case of emergency.
The sensor is in ON status (LED switched on, electric contact closed) when the valve is in rest position (NC).
The single channel valve is classified in category 2 and can reach Performance level D.
The double channel valve is classified in category 4 and can reach Performance level E.
The user is responsible to perform the installation in compliance with the requirements of the ISO EN 13849-1 standard.
Please note: the safety valve is not sufficient, alone, to guarantee the safety function. Its setup requires the use of a monitoring device.
The Machinery Directive (MD) 2006/42 / EC establishes the safety requirements that a machine must respect in order to protect the health of people during its use.
Series MD SAFEMAX solenoid valves comply with ISO 13849-1, regarding the safe design of control systems that perform safety functions.
3/2-way quick exhaust safety valves Series MX SAFEMAX
Ports: G1/2
Series MX SAFEMAX solenoid valves are equipped with an integrated sensor that detects the position of the spool and enables to quickly exhaust the system in case of emergency. The sensor is in ON state (closed contact) with the valve in closing position, system exhaust. The single channel valve is classified in category 2 and can reach Performance level D. The double channel valve is classified in category 4 and can reach Performance level E.
Please note: the safety valve is not sufficient, alone, to guarantee the safety function. Its setup requires the use of a monitoring device.The Machinery Directive (MD) 2006/42 / EC establishes the safety requirements that a machine must respect in order to protect the health of people during its use. Series MX SAFEMAX solenoid valves comply with ISO 13849-1, regarding the safe design of control systems that perform safety functions.
3/2-way quick exhaust safety valves with soft start valve Series MX SAFEMAX
Ports: G1/2

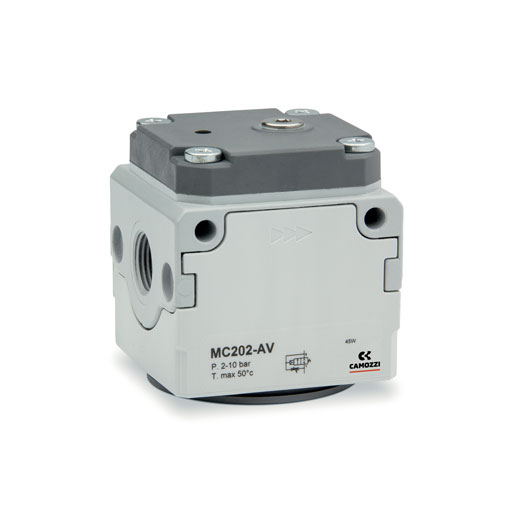

In this configuration, in addition to the characteristics of the versions with solenoid valves only, the soft start function has been integrated, which allows a gradual introduction of pressure into the system.
Its positioning upstream of the solenoid valves allows, even in the event of an anomaly, to always have the maximum discharge flow rate. Thanks to the internal construction solutions it was possible to maintain the design and dimensions of the standard product, no further interface plates are necessary.
Please note: the safety valve alone is not sufficient to guarantee the safety function. Its activation requires the use of a supervisor device.
The Machinery Directive (MD) 2006/42 / EC establishes the safety requirements that a machine must respect in order to protect the health of people during its use. Series MX SAFEMAX solenoid valves comply with ISO 13849-1, regarding the safe design of control systems that perform safety functions.
Activated carbon filters Series MC
Activated carbon filters Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
Bowl with technopolymer cover and bayonet-type mounting
Within a battery of filters the activated carbon version is placed at the end because it requires a pre-filtering like the coalescing filter.
Given the characteristic of this filter, it is recommended to replace the filter element at least every 6 months or 1000 working hours.The operating principle is based on the adsorption characteristic of the filtering element which is composed of extremely porous fibers placed on different layers.
These fibers create a cross-linked and are thus able to adsorb wet parts and contaminants remaining in the passing air, for example oil vapours/smokes, as well as odours generated from these contaminants.
Activated carbon filters Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Bowl with technopolymer cover and bayonet-type mounting
MX is the new series of air treatment components realized by Camozzi, characterized by a modern, linear and compact design, offering high performances.
The perfect integration between metal alloys and technopolymers has allowed the realization of a reliable product, light and strong at the same time.
Thanks to a new concept of modularity, moreover, the mounting of components has become easier.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
Analog pressure gauges Pressure gauges
To select the most suitable pressure gauge, the measurement range should be chosen considering the type of application according to the following criteria:
- Constant pressure or pressure with slow fluctuations should be within 75% of the maximun scale value.
- Pulsing pressure or rapid fluctuations should be within 65% of the maximum scale value.
- Pressure peaks should never exceed the maximum scale value.

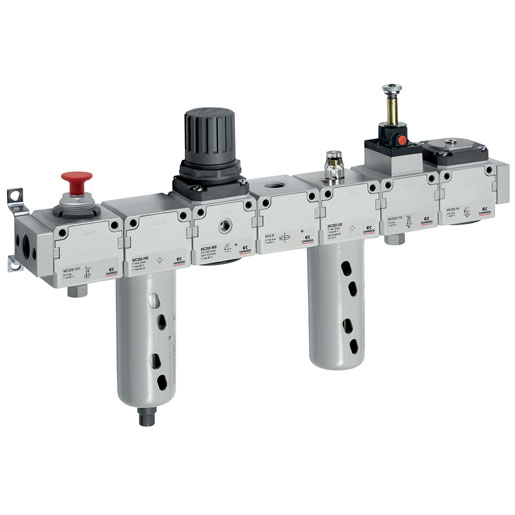

Assembled FRL Series MC
Ports G1/4, G3/8 and G1/2
The FRL Series MC in the assembled version can be easily assembled by means of modular tie rods on which it is possible to mount the single elements without any limits in the composition.
The FRL groups Series MC are available already mounted (with a single code).The connections can be made directly on the elements or on the terminal flanges (Kit A) with the advantage that in case of maintenance the group can be extracted without disconnecting the tubing.
The version with flanges is supplied without tie-rods.

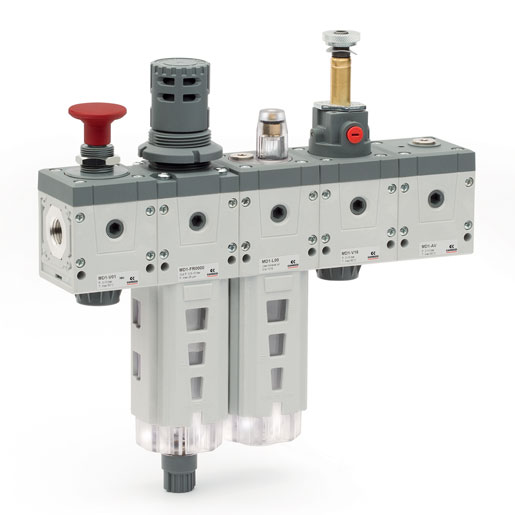

Assembled FRL Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
The Series MD offers multi-sector solutions that ensure saving in terms of installation time, space and costs.
The various functions can be connected by means of intermediate junctioning cartridges.
The regulator and the valves can be adjusted so as to have the regulation devices or the actuation in front or lower position.
There are different types of wall mounting available.Thanks to the solution adopted for the pneumatic connection, it is possible to equip the same element with interchangeable cartridges that can either be threaded, or with an integrated super-rapid fitting, both types available in different sizes. Intermediate cartridges can be also integrated to join multiple functions or with derivation to draw air.

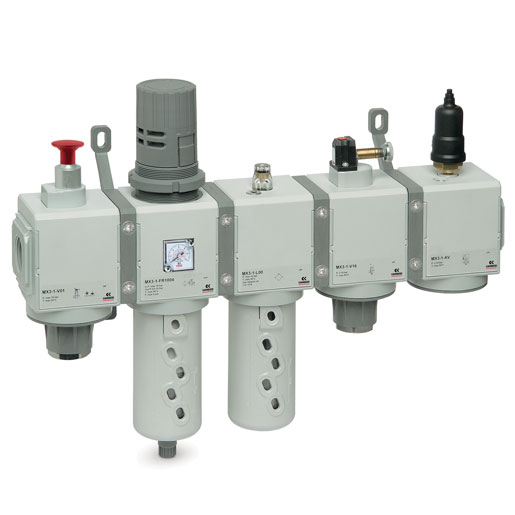

Assembled FRL Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Assembly through rapid clamps
Series MX FRL can be easily assembled through rapid clamps which allow the connection among single components creating an unlimited number of compositions.
The FRL groups Series MX are also available in the already mounted version (with a single code).
The use of three different types of rapid clamps (standard, with wall fixing screws or with brackets) allows an easy mounting of the assembled groups and to carry out maintenance operations on the single components with no need to disassemble the group.

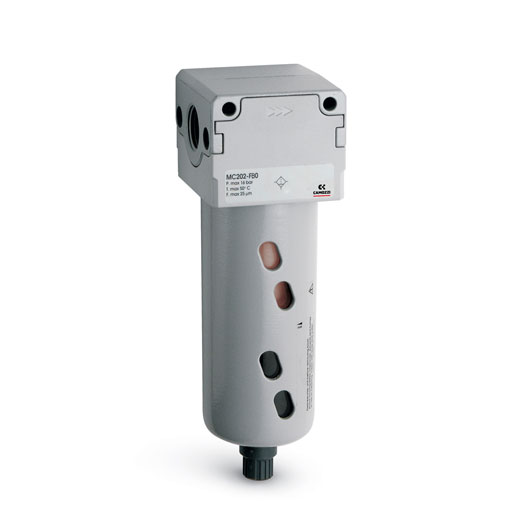

Coalescing filters Series MC
Ports G1/4, G3/8 and G1/2
Modular
Metal bowl and bayonet-type mounting
Series MC coalescing filters are available with G1/4, G3/8 and G1/2 ports.
The bowls of these filters are made of metal with a transparent sight glass and may have a condensate drain valve which can provide either a manual or semi-automatic function.
