Air treatment

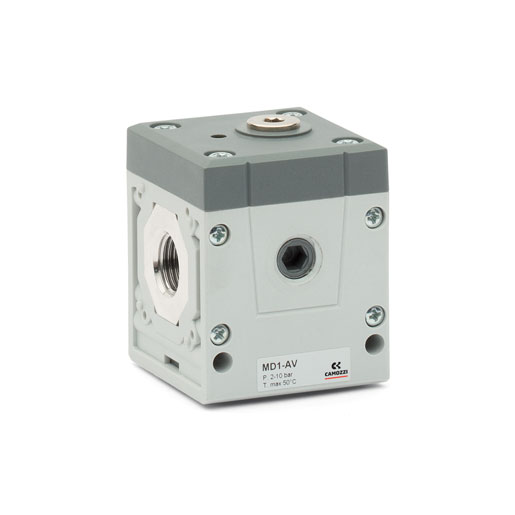

Soft start valves Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
The soft start valves are used to avoid the sudden movement of pneumatic actuators. Feeding them pneumatically is enough to begin the phase of the pressure gradual increase in the system. By means of a regulation screw, it is possible to determine the time the valve needs to reach the 50% of the inlet pressure. Once this value is reached, the valve opens completely the passage.
The blanked connection on the upper side allows either the time increase to fill the system through a small additional volume or the connection of a pressure switch.
Take-off blocks Series MC
Take-off blocks Series MD
Module with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm (5 outlets)
Intermediate junction cartridge (3 outlets)
Intermediate junction cartridge with non-return valve
The take-off block can be positioned as desired among the other blocks of the air treatment unit and allows to draw in air from different sides.
The intermediate cartridge, that can also be supplied with a non-return valve, enables to draw in a reduced quantity of air. The take-off block enables to connect two air treatment units that can be mounted on both sides of the block.
Take-off blocks Series MX
MX2 port: G1/2 - MX3 port: G1
Modular
The Take-off blocks, when equipped with a no return valve, can be used to bleed non lubricated air.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
A special configurator, available on Camozzi website at http://shop.camozzi.com (sec. Configurators), allows the customer to choose the most suitable solution for his application, selecting single components or by configuring assembled FRLs.
