Showing 13–24 of 52 results
Air treatment

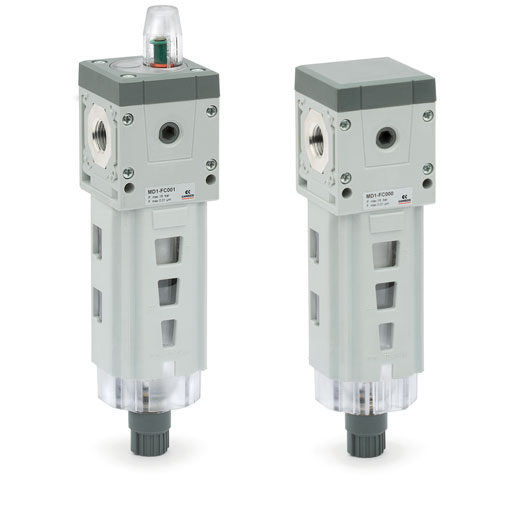

Coalescing filters Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
Bowl with technopolymer cover and bayonet-type mounting
The coalescing filter is a fine oil separator filter that removes the solids with dimensions from 0,1 to 5 µm and oil vapours with a concentration from 0,01 to 0,1 mg/m³.
For a correct fucntioning they require a pre-filtering.
Given the characteristic of this filter, it is recommended to replace the filter element at least every 12 months or 8000 working hours.Thanks to the solution adopted for the pneumatic connection, it is possible to equip the same element with interchangeable cartridges that can either be threaded, or with an integrated super-rapid fitting, both types available in different sizes.
Intermediate cartridges can be also integrated to join multiple functions or with derivation to draw air.
An additional air intake, with the same characteristic of the outlet air, is available on the front side and on the rear one.
This intake can be used by utilities with limited consumption.

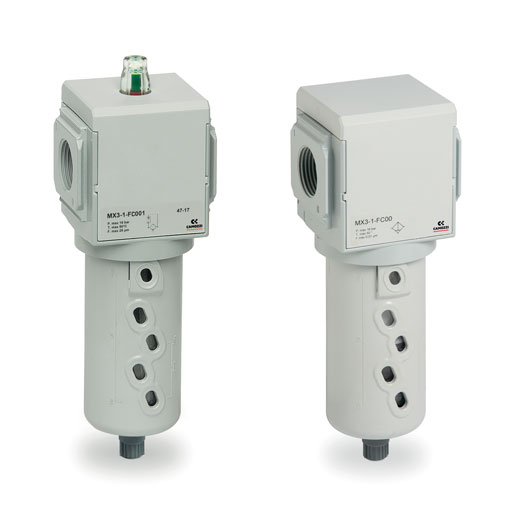

Coalescing filters Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Bowl with technopolymer cover and bayonet-type mounting
The Series MX air treatment components are characterized by a modern, linear and compact design, offering high performances.
The perfect integration between metal alloys and technopolymers has allowed the realization of a reliable product, light and strong at the same time.
Thanks to a new concept of modularity, moreover, the mounting of components has become easier.The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
Compact electronic pressure switches / vacuum switches Series SWMN and SWMS
Ports: G1/8, M5 thread or Ø 4, 6 mm plug-in tube
Measuring range: 0 ÷ -1 bar, 0 ÷ 1 bar with analog output,
0 ÷ -1 bar, 0 ÷ 6 bar with digital PNP output
The Series SWMN and SWMS vacuum/ pressure switches can be installed directly at the measuring point or pressure/ vacuum determination point in handling systems, thanks to its highly compact dimensions.
Its reduced weight (only 50 grams with a 2 meter cable) and robust construction allow its installation on applications with high accelerations.
The four types of connection enable a high flexibility and an easy installation inside machines or pneumatic cabinets.
Digital pressure gauges Series PG
Possibility of a direct mounting with rear or panel connection
The new Series PG digital pressure gauges meet the need of an even more precise pressure adjustment, above all in proportional control.
Thanks to the IP65 protection class these pressure gauges are particularly suitable for applications where the highest environmental protection is required.

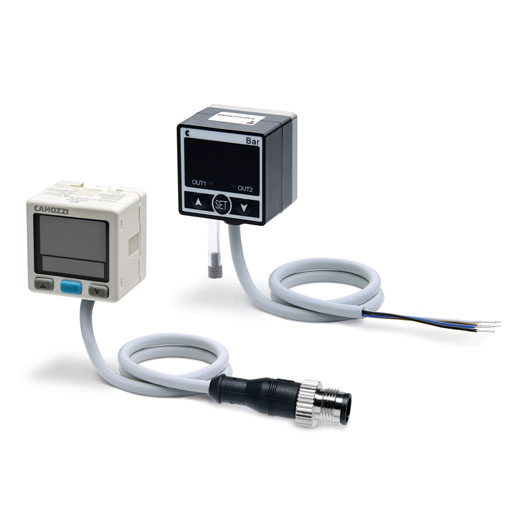

Electronic vacuum/pressure switches Series SWCN
With digital display
High precision, easy to use
Applications:
- Electronic vacuum/pressure switch for safety monitoring, optimization of cycle times or energy saving devices;
- It can be installed directly on the gripping point of a handling system;
- Setting of the limit vacuum value and continuous vacuum control;
- Perfectly suitable for customer needs.
- The device is available with hardwired cable of 2 meters or can be supplied with M8 connector.
- Accessories and extensions have to be ordered separately. Codes can be found at the end of this section.

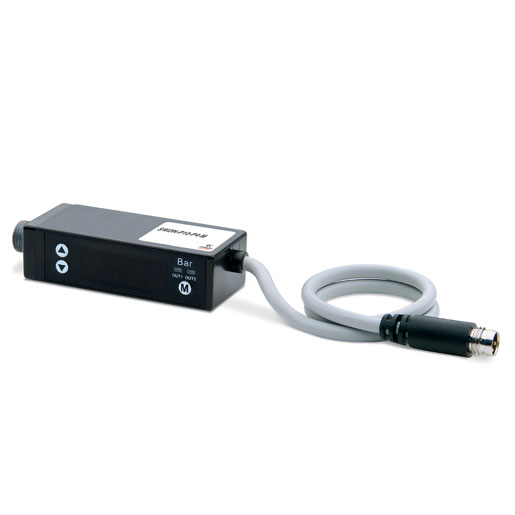

Electronic vacuum/pressure switches Series SWDN
With digital display
High precision, easy to use
Applications:
- Electronic vacuum/pressure switch for safety monitoring, optimization of cycle times or energy saving devices;
- It can be installed directly on the gripping point of a handling system;
- Setting of the limit vacuum value and
- Continuous vacuum control;
- Perfectly suitable for customer needs.
Filter-regulators Series MC

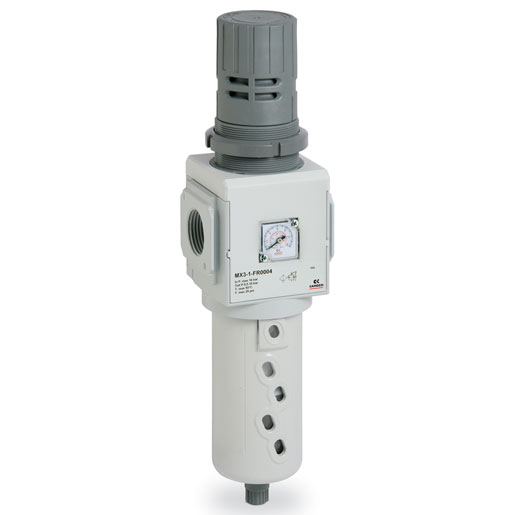

Filter-regulators Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Bowl with technopolymer cover and bayonet-type mounting
Series MX filter-regulators integrate filter and pressure reducer in one unit.
They are, therefore, compact and suitable for pre-filtering functions.
Available with or without draining (relieving), they are equipped with a valve diaphragm for a direct pressure regulation and with an integrated condensate drainer, manual or automatic.
Moreover, they are equipped with a built-in pressure gauge.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
Filter-regulators Series N
Ports G1/8, G1/4
Series N filter-regulator is available with G1/4 and G1/8 ports.
Its design incorporates a self relieving diaphragm.
The transparent filter bowl allows an easy monitoring of the condensate level.
The semi-automatic manual drain makes both the manual and automatic condensate exhaust easier when there is no pressure.The version with metal bowl is particularly suitable for applications subject to impacts or in the presence of aggressive agents that could damage the PA12 bowl.

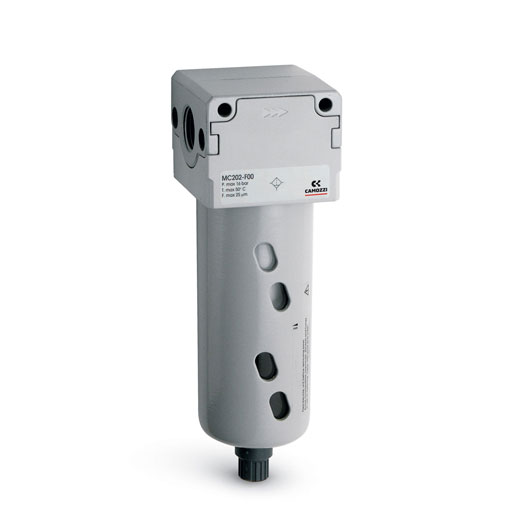

Filters Series MC

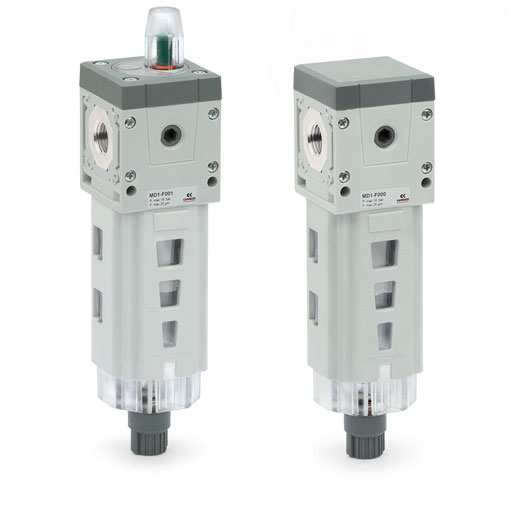

Filters Series MD
Ports with interchangeable cartridges: threaded (1/8, 1/4, 3/8) or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Modular assembly
Bowl with technopolymer cover and bayonet-type mounting
The Series MD air preparation product line is characterized by a modern and linear design as well as high performance.
The technopolymer structure has allowed to create a simplified, product, lightweight and robust at the same time.Thanks to the solution adopted for the pneumatic connection, it is possible to equip the same element with interchangeable cartridges that can either be threaded, or with an integrated super-rapid fitting, both types available in different sizes.
Intermediate cartridges can be also integrated to join multiple functions or with derivation to draw air.
An additional air intake, with the same characteristic of the outlet air, is available on the front side and on the rear one.
This intake can be used by utilities with limited consumption.

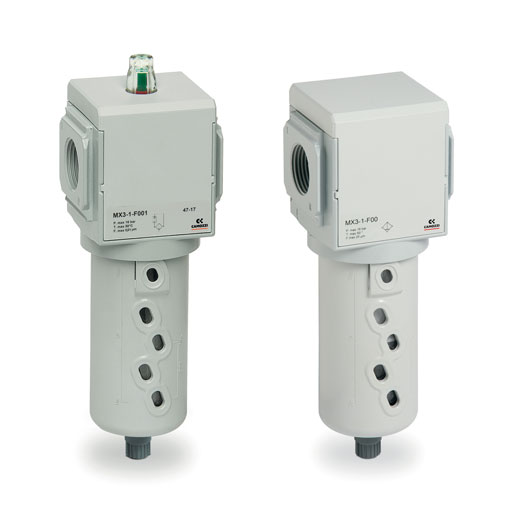

Filters Series MX
MX2 ports: G3/8, G1/2, G3/4 - MX3 ports: G3/4, G1
Modular
Bowl with technopolymer cover and bayonet-type mounting
The Series MX air treatment components are characterized by a modern, linear and compact design, offering high performances.
The perfect integration between metal alloys and technopolymers has allowed the realization of a reliable product, light and strong at the same time.
Thanks to a new concept of modularity, moreover, the mounting of components has become easier.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
