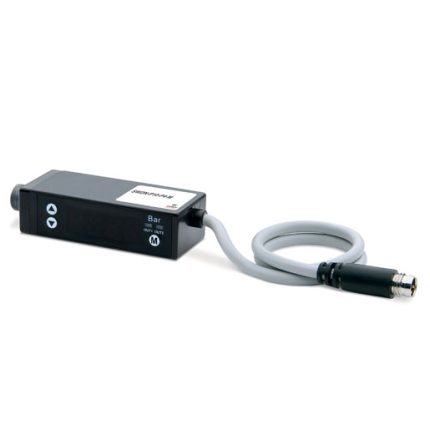

Electronic vacuum/pressure switches Series SWCN
With digital display
High precision, easy to use
High precision, easy to use
Applications:
- Electronic vacuum/pressure switch for safety monitoring, optimization of cycle times or energy saving devices;
- It can be installed directly on the gripping point of a handling system;
- Setting of the limit vacuum value and continuous vacuum control;
- Perfectly suitable for customer needs.
Electric connection:
- The device is available with hardwired cable of 2 meters or can be supplied with M8 connector.
- Accessories and extensions have to be ordered separately. Codes can be found at the end of this section.
