Cylinders ISO 15552 Series 63
Single and double-acting, magnetic, cushioned
Ø 32, 40, 50, 63, 80, 100, 125 mm
Ø 32, 40, 50, 63, 80, 100, 125 mm
The Series 63 pneumatic cylinders have been developed to guarantee high performance and versatility.
Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block.Besides the standard version, which can be used in many sectors, specific solutions have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications.
There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.
Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block.Besides the standard version, which can be used in many sectors, specific solutions have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications.
There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.
RELATED PRODUCTS

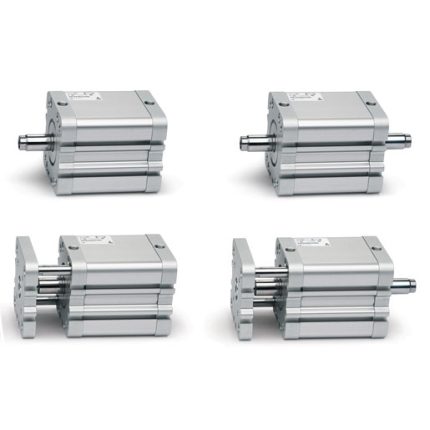

Compact cylinders ISO 21287 Series 32
