Electromechanical axis

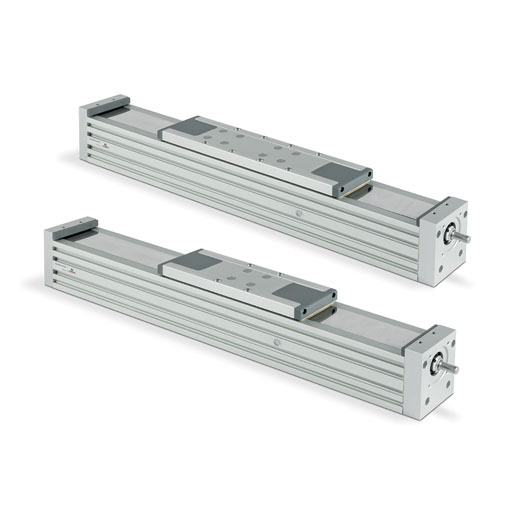

electromechanical axis Series 5ES…BS
Series 5ES...BS axes are mechanical linear actuators in which the rotary movement generated by a motor is converted into a linear movement by means of a recirculating ball screw.
Series 5E is designed with a special self-supporting square profile with a recirculating ball guide integrated within the actuator, providing exceptional stiffness and resistance to external loads.
A stainless steel plate protects against the ingress of contaminating agents from the surrounding environment, especially dust and dirt.
The axis is available in three sizes; 50, 65 and 80. They can be combined in different configurations to create multi-axis systems. Thanks to the wide range of accessories, assembly is simple and intuitive, reducing assembly and commissioning times considerably.
The axis equipped with recirculating ball screw is particularly suitable for applications requiring a high repeatability and a high load capacity.

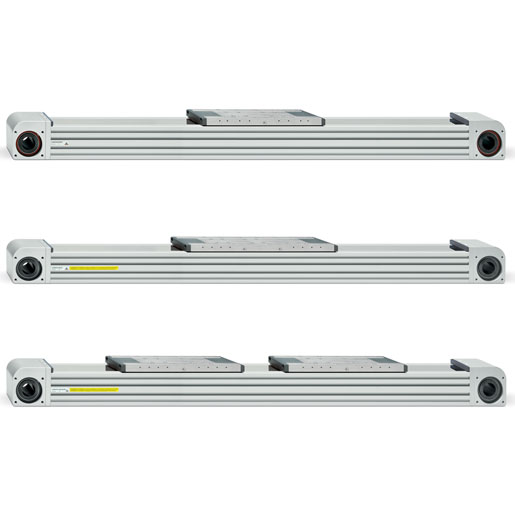

Electromechanical axis Series 5ES…TBL
Sizes 50, 65, 80
Available versions: standard axis, support axis, reinforced axis
Series 5E axes are mechanical linear actuators in which the rotary movement generated by a motor is converted into a linear movement by means of a toothed belt.
The Series 5E, available in 3 sizes, 50, 65 and 80, is realized by means of a special self-supporting square profile, in which the components have been completely integrated, assuring compactness and light weight.
The presence of a recirculating ball guide grants high stiffness and resistance to external loads.To protect the internal elements from potential contaminants from the external environment, the profile has been closed with a stainless steel plate. The axis is equipped with a magnet that makes it possible to use external proximity switches (Series CSH), allowing operations like homing or extra-stroke readings to be performed. Moreover, these actuators also have accessories in order to be used with inductive sensors.
The Series 5E is equipped with specific interface kits making it possible to connect the motor on 4 sides. The use with high dynamics and the possibility to realize multi-axis systems, make the Series 5E particularly suitable for the packaging and assembly sectors.
