Showing 1–12 of 14 results
Solenoid, pneumatic and manifold valves
Angle seat valves Series ASP
2/2-way - Normally Closed (NC) and Normally Open (NO)
2/2-way - Double Acting (DA)
The Series ASP angle seat valves are an efficient and cost-effective solution for fluid control. Their robustness is suitable for the most varied applications with inert gases and liquids, with steam or with fluids having solid particulates in suspension. Available with 3/8" to 2-1/2" threaded connections.
The operation is determined by the pneumatic drive of a single acting, guided piston actuator with spring return.
There are also models available with double acting actuators, without spring.
For liquid media we recommend the models with flow direction under the seat.
For gas or steam we recommend the models with flow direction above the seat.
Angle seat valves Series ASX
2/2-way - Normally Closed (NC) and Normally Open (NO)
2/2-way - Double Acting (DA)
Angle seat valves are available in different versions with regard to nominal diameter, type of fluid and process connections.
They are able to manage media that are corrosive or contain suspended solid particulate matter and can be used in applications with high operating temperatures.
The operation is determined by the pneumatic drive of a single acting, guided piston actuator with spring return.
There are also models available with double acting actuators, without spring.
For liquid media we recommend the models with flow direction under the seat.
For gas or steam we recommend the models with flow direction above the seat.
Pneumatic operated cartridge valves Series 8
2/2-way - Normally Closed (NC)
3/2-way - Normally Closed (NC)
Series 8 pneumatic operated valves are particularly suitable for applications requiring high flow combined wtih compact design.
The valve is pneumatic operated by electro-pilots which are dimensioned according to the size.
The cartridge design, which is ideal for manifold assembly, allows to reduce both dimensions and the number of pneumatic connections.
The standard function of the valve is 2/2-way NC.
It can however fulfill the 3/2-way NC function if inserted in a proper seat.

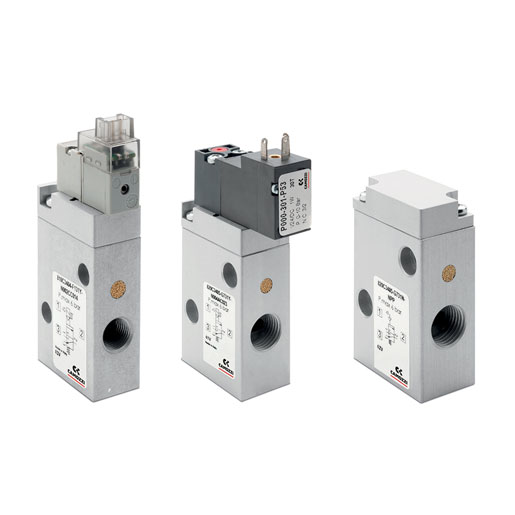

Pneumatically and electropneumatically operated valves Series 8
2/2-way - Normally Closed (NC)
3/2-way - Normally Closed (NC)
The Series 8 enlarges the range of versions available with the cartridge valve directly integrated in an anodized aluminium body comprising also the pilot solenoid valve. The new bodies enable to have pneumatically operated versions with external piloting or electropneumatically operated versions with both external and internal piloting.

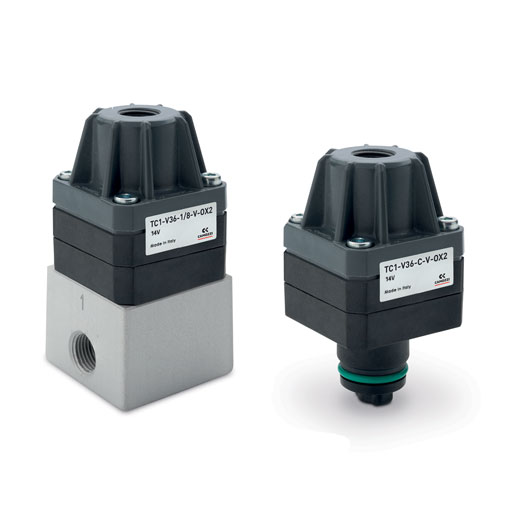

Shut-off micro-valves Series TC
2/2-way - Normally Closed (NC)
The principle of the Series TC1-V shut-off micro-valves is based on the actuation of a poppet by means of an operating pressure applied above it.
The poppet, once actuated, moves away from the tightening seal, permitting the flow of the intercepted fluid.
By removing the actuation pressure, the poppet repositions itself on the tightening seal by means of a spring positioned below that closes the flow of the fluid.
For its realization the most suitable materials for contact with fluids were selected. The body in PPS and the FKM tightening seals guarantee full compatibility with a wide range of gaseous fluids.

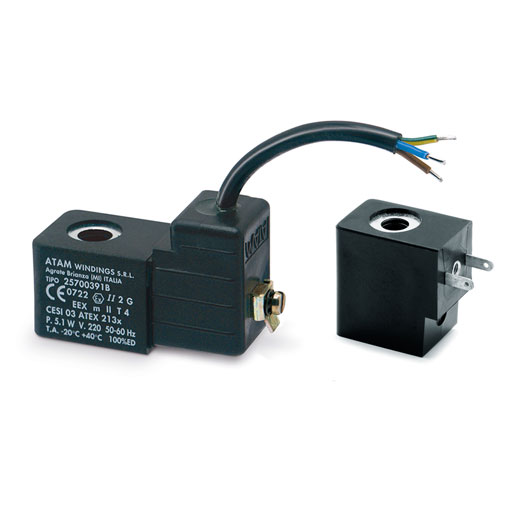

Solenoids GP… – B7… – G93 – U7… – U7…EX – G7… – A8… – B8… – H8… – B9…

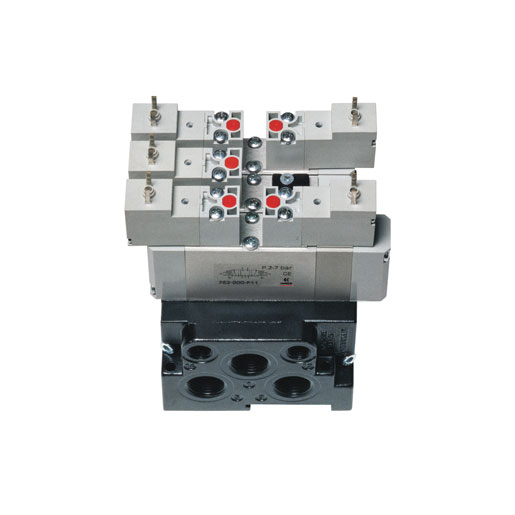

Valves and solenoid valves (ISO 15407-1) Series 7
Size: 18 mm (VDMA 24563-02), 26 mm (VDMA 24563-01)
5/2 - 5/3-way CC CO CP
VDMA 24563 (ISO 15407-1)
The Series 7 solenoid valves with ISO 26 mm and 18 mm interface which have electropneumatic actuation and return are suitable for mounting on a sub-base.
For electrical actuation, 2 types of solenoid Series W and Series P (available with a wide range of voltages, on request).
The Series 7 solenoid valves with ISO 26 mm and 18 mm interface which have pneumatic actuation and return are suitable for mounting on a sub-base.
For the correct use of the valve, the pilot pressure must be the same or higher than the operating pressure.

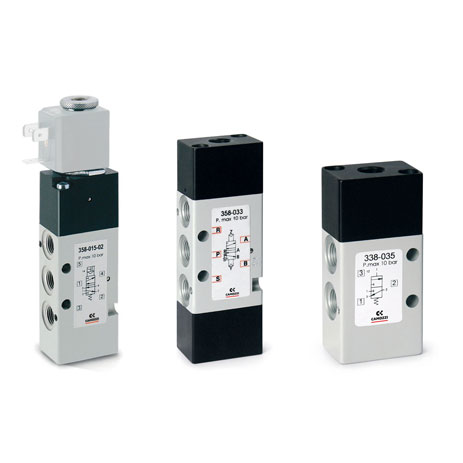

Valves and solenoid valves Series 3
2x3/2, 3/2, 5/2 and 5/3-way CC CO CP
Ports: G1/8 and G1/4
Series 3 solenoid valves with G1/8 and G1/4 ports have been designed in the 3/2, 2 x 3/2, 5/2, 5/3 versions and with the following two devices of actuation:
- Electropneumatically actuated with mechanical spring return
- Electropneumatically actuated with external and internal air pressure supply

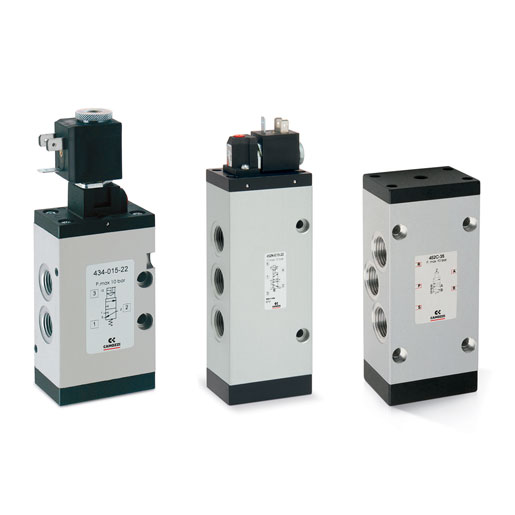

Valves and solenoid valves Series 4
3/2, 5/2 and 5/3-way CC, CO
Ports: G1/8, G1/4, G3/8, G1/2
Series 4 solenoid valves have been designed in the 3/2, 5/2, 5/3 versions and with the following two devices of actuation:
- electropneumatically actuated with mechanical spring return
- electropneumatically actuated and return with external and internal air pressure supplySeries 4 valves are equipped with a manual override which allows a stable
operation and they are particularly suitable for mounting in arduous conditions.
All these valves can be operated by solenoids Series U, G A8 and H8.
Pneumatically actuated valves 3/2 NC become NO when the supply is on connection 3.

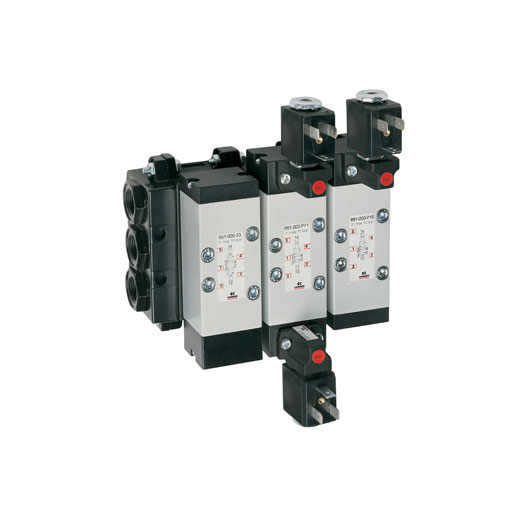

Valves and solenoid valves Series 9

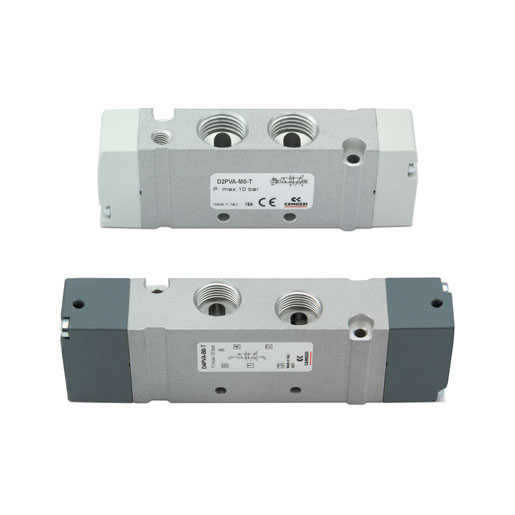

Valves and solenoid valves Series D VA version
3/2; 2x3/2; 5/2; 5/3-way
With outlets on the body - For individual or manifold assembly
Size 10,5 - 16 - 25 mm
Camozzi has developed a new series of valves for applications with limited installation space where it is necessary to have the control elements as close to the actuator as possible.
Valves with threads on the body can be used individually or assembled on manifold. The sub-base version allows a better cleaning of the application.
Thanks to the extreme robust aluminium body, the Series D valves guarantee maximum reliability even under difficult operating conditions.

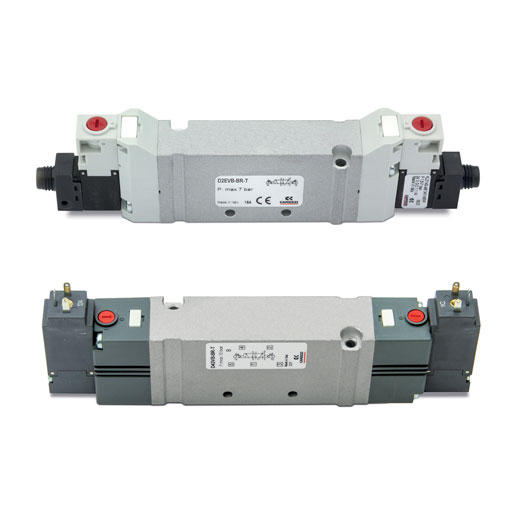

Valves and solenoid valves Series D VB version
2x3/2; 5/2; 5/3-way
Manifold assembly
Size 10,5 - 16 - 25 mm
Camozzi has developed a new series of valves for applications with limited installation space where it is necessary to have the control elements as close to the actuator as possible.
Thanks to the extreme robust aluminium body, the Series D valves guarantee maximum reliability even under difficult operating conditions.
