Pneumatic operated cartridge valves Series 8
2/2-way – Normally Closed (NC)
3/2-way – Normally Closed (NC)
3/2-way – Normally Closed (NC)
Series 8 pneumatic operated valves are particularly suitable for applications requiring high flow combined wtih compact design.
The valve is pneumatic operated by electro-pilots which are dimensioned according to the size.
The cartridge design, which is ideal for manifold assembly, allows to reduce both dimensions and the number of pneumatic connections.
The valve is pneumatic operated by electro-pilots which are dimensioned according to the size.
The cartridge design, which is ideal for manifold assembly, allows to reduce both dimensions and the number of pneumatic connections.
The standard function of the valve is 2/2-way NC.
It can however fulfill the 3/2-way NC function if inserted in a proper seat.
General Data
| TECHNICAL FEATURES | |
| Function | 2/2 NC – 3/2 NC |
| Operation | Pneumatic operated poppet type |
| Pneumatic connections | Cartridge seat in manifold |
| Orifice diameter | 5 … 9 mm |
| Nominal flow | 420 … 1480 Nl/min (air at 6 bar ∆P 1 bar) |
| Flow coefficient kv (l/min) | 6.5 … 23 |
| Operating pressure | 3 ÷ 6 bar (0 ÷ 6 bar with external pilot supply) |
| Piloting pressure | 3 ÷ 6 bar |
| Operating temperature | 0 ÷ 50°C |
| Fluid | Filtered air class [5:4:4] according to ISO 8573-1:2010 (max oil viscosity 32 cSt), inert gas, oxigen |
| Installation | In any position |
| MATERIALS IN CONTACT WITH THE MEDIUM | |
| Body | PPS – brass |
| Internal parts | Aluminium |
| Seals | FKM |
Coding Example
| 8 | 10 | C5 | 1 | 00 | – | F1 | 3 | 2 | – | OX2 |
| 8 | SERIES |
| 10 | SIZE 10 = Size 1 – Ø 10.0 mm 20 = Size 2 – Ø 14.5 mm 30 = Size 3 – Ø 22.0 mm |
| C5 | BODY DESIGN C5 = Cartridge |
| 1 | NUMBER OF WAYS – FUNCTIONS 1 = 2/2 or 3/2-way – NC NOTE: the function 2/2 o 3/2-way depends on the seat used |
| 00 | PNEUMATIC CONNECTIONS 00 = Cartridge |
| F1 | ORIFICE DIAMETER F1 = Ø 5.0 mm – size 1 only G7 = Ø 6.6 mm – size 2 only K1 = Ø 9.0 mm – size 3 only |
| 3 | SEAL MATERIAL 3 = FKM |
| 2 | BODY MATERIAL 2 = Brass B = PPS – size 2 and size 3 only |
| OX2 | OX2 = for use with oxygen – cleanliness level according to ASTM G93-03 Standard Level B
NOTE: The OX2 suffix must be added also in case of use with air/gas. |
RELATED PRODUCTS
Compact cylinders ISO 21287 Series 32
Single and double-acting, non-rotating, auto-cushioned
ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 mm
Series 32 cylinders, thanks to their compactness, are suitable for installation in confined spaces.
Being in compliance with the ISO 21287 Standard, the cylinders Series 32 can be used in conjunction with mountings/accessories suitable with ISO 15552 standard.

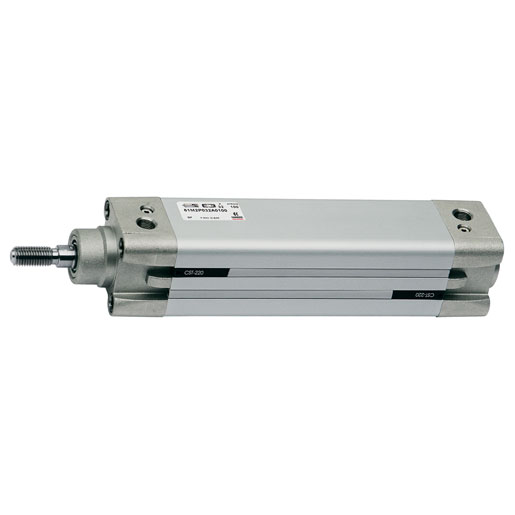

Cylinders Aluminium profile Series 61
Single and double-acting, magnetic, cushioned
Standard, low friction, low temperatures and tandem versions
Ø 32, 40, 50, 63, 80, 100, 125 mm
Series 61 cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
A permanent magnet, mounted on the piston in these cylinders, enables information to be received regarding the piston position by means of proximity switches mounted in grooves along the cylinder profile.
These grooves can be covered with a slot cover profile.This cylinder series is equipped with adjustable end-stroke cushioning.
Moreover, they are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.

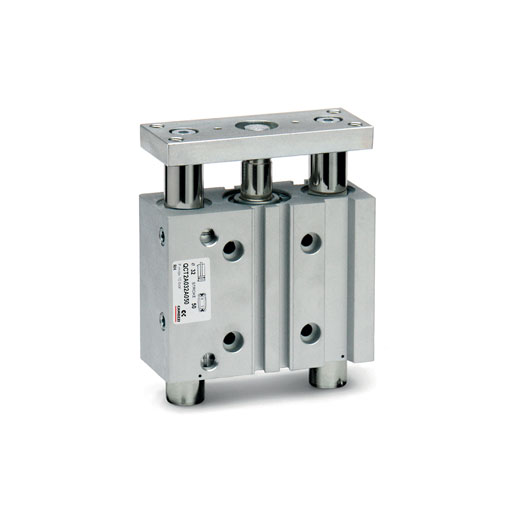

Cylinders with integrated guide Series QC
Double-acting, magnetic piston, guided
ø 20, 25, 32, 40, 50, 63 mm
These actuators, suitable for use in very limited space, are available in two versions.
- QCT version: with sintered bronze bushes, suitable when the side loads applied to the cylinder are high.
- QCB version: with linear ball bearings, suitable for high precision and fast cycling applications.

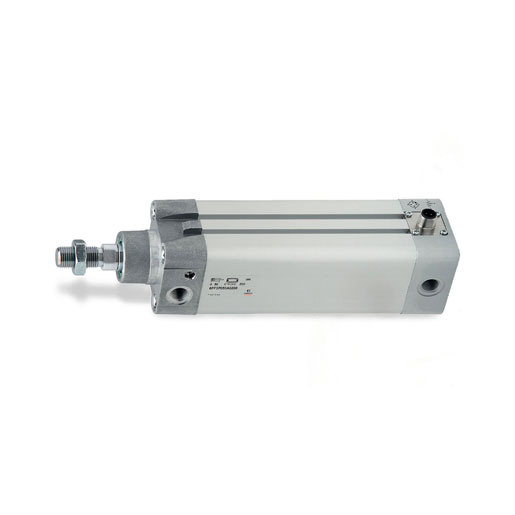

Positioning Feedback Cylinders ISO 15552 Series 6PF
