Showing all 12 results
Suction pads
Bellows suction pads (oval) for Packaging – 1,5 folds Series VPOL
Suction pads in Elastodur ED-65 or Silicone.
Dimensions from 60x20 to 100x40 mm with thread size G1/8 and G1/4, both male and female.
Series VPOL suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of packagings like rigid cardboard boxes or trays.
Common applications are:
- Palletising and de-palletising processes.
- Heavy-duty applications in terms of hold and wear.
- Loading from the top and from the side in cartoning machines.

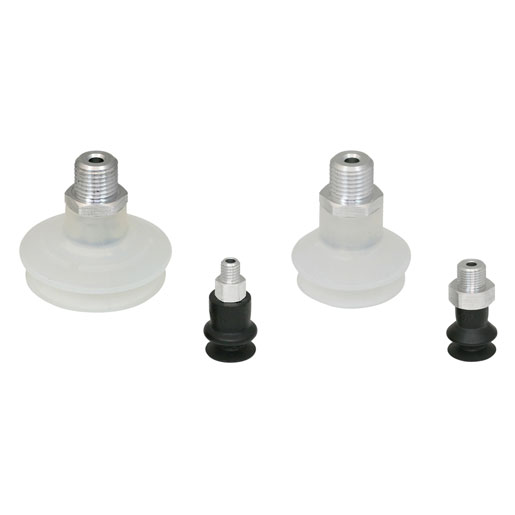

Bellows suction pads (round) – 1,5 folds Series VTCL
Series VTCL bellows suction pads available in NBR or Silicone which allow an optimal damping when placed on the workpiece. Diameters from 4 to 53 mm with thread size M3, M5, G1/8, G1/4, both male and female.
Series VTCL bellows suction pads (1,5 folds) have a rugged design and consist of a nipple and rubber part.
The nipples are inserted directly into the rubber part.
The rubber parts can also be ordered separately without nipples as spare parts.
Materials: NBR or SiliconeApplications:
- Handling of even or uneven workpieces such as planels for car bodies, tubes, cardboard boxes
- Handling of fragile workpieces such as electronics components, injection moulded pieces, etc
- Handling of welded pieces.
- Silicone version for handling high temperatures pieces.

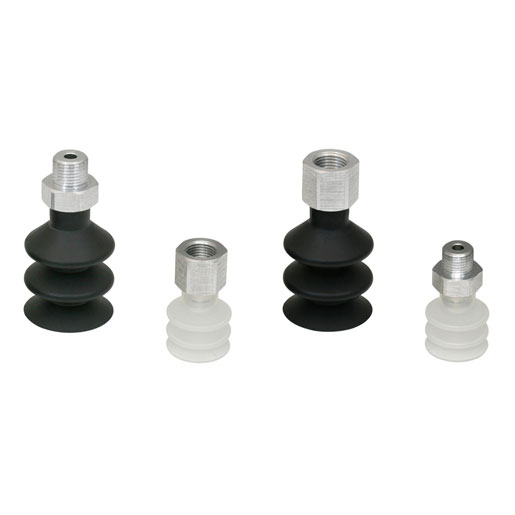

Bellows suction pads (round) – 2,5 folds Series VTCN
Series VTCN bellows suction pads, available in NBR or Silicone.
Diameters from 5 to 52 mm with thread size M3, M5, G1/8, G1/4, both male and female.
Series VTCN bellows suction pads (2,5 folds) have a rugged design and consist of a nipple and rubber part.
The nipples are inserted directly into the rubber part. The rubber parts can also be ordered separately without nipples as spare parts.
Materials: NBR or SiliconeApplications:
- Handling of even or uneven workpieces such as plates for car bodies, tubes, cardboard boxes.
- Handling of fragile workpieces such as electronics components, injection moulded pieces, etc.
- Handling of welded pieces.
- Silicone version for handling of pieces at high temperatures.

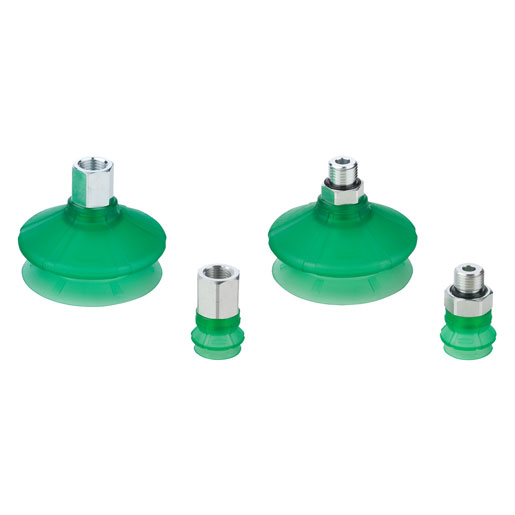

Bellows suction pads (round) for Packaging – 1,5 folds Series VPCL
Suction pads in Elastodur ED-65.
Diameters from 10 to 80 mm with thread size M5, G1/8 and G1/4, both male and female.
Series VPCL suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of packagings like rigid cardboard boxes or trays.
Common applications are:
- Palletising and de-palletising processes.
- Heavy-duty applications in terms of hold and wear.
- Loading from the top and from the side in cartoning machines.

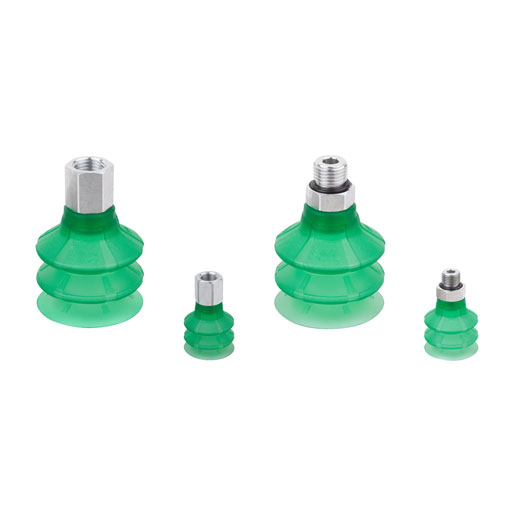

Bellows suction pads (round) for Packaging – 2,5 folds Series VPCM
Suction pads in Elastodur ED-65.
Diameters from 20 to 50 mm with thread size G1/8 and G1/4, both male and female.
Series VPCM suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of packagings like rigid (empty or filled) cardboard boxes and trays.
Common applications are:
- Palletising and de-palletising processes.
- Heavy-duty applications in terms of hold and wear.
- Loading from the top and from the side in cartoning machines.
- Applications in which a high compensation in height is needed between the workpieces to handle.

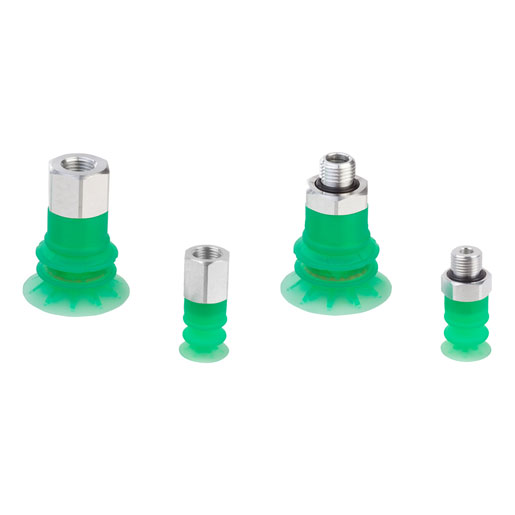

Bellows suction pads (round) for Packaging – 2,5 folds Series VPCN
Suction pads in Silicone.
Diameters from 15 to 50 mm with thread size G1/8, G1/4, G3/8 and G1/2, both male and female.
Series VPCN suction pads consist of a nipple and rubber part which are delivered
assembled. Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of flexible products such as pouches and other flexible, plastic film packaging (like candy bags).
Common applications are:
- Handling of pouches filled with solid, powder-form or liquid substances with low filling
- Quick packaging processes, mainly with a Delta Robot.

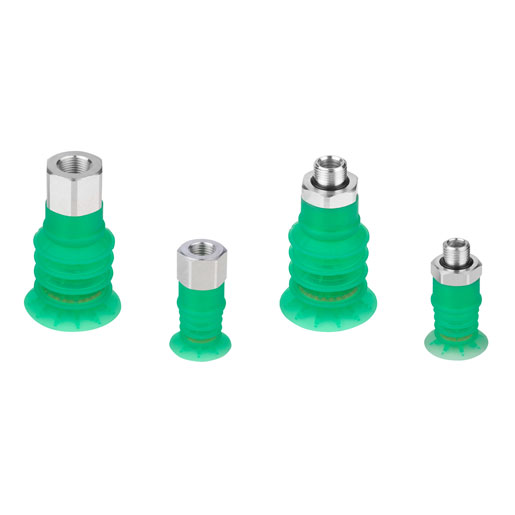

Bellows suction pads (round) for Packaging – 4,5 folds Series VPCO
Suction pads in Silicone.
Diameters from 30 to 50 mm with thread size G1/8, G1/4 and G3/8 and G1/2 both male and female.
Series VPCO suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of flexible products such as pouches and other flexible, plastic film packaging (like candy bags).
Common applications are:
- Handling of pouches filled with solid, powder-form or liquid substances with low filling
- Quick packaging processes, mainly with a Delta Robot.

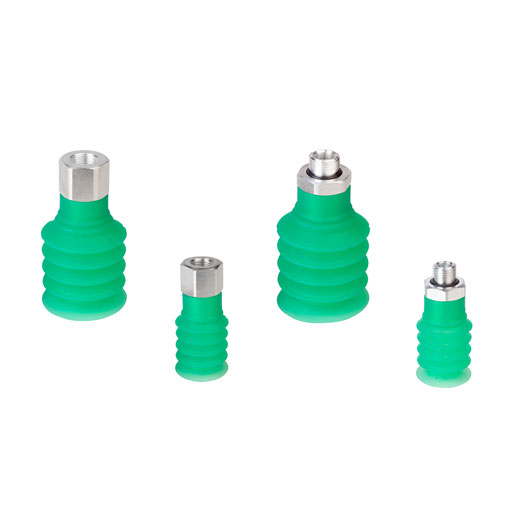

Bellows suction pads (round) for Packaging – 4,5 folds Series VPCQ
Suction pads in Silicone.
Diameters from 20 to 50 mm with thread size G1/8, G1/4, G3/8 and G1/2 both male and female.
Series VPCQ suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of flexible products such as pouches and other rigid, plastic film packaging (like frozen food bags).
Common applications are:
- Handling of pouches filled with solid, powder-form or liquid substances with a good level of filling
- Quick packaging processes, mainly with a Delta Robot.
Flat suction pads (oval) Series VTOF
Flat suction pads in NBR or Silicone.
Diameters from 4x2 to 90x30 mm with thread size M3, M5, G1/8, G1/4, both male and female.
Series VTOF flat oval suction pads consist of a nipple and rubber part.
The nipples are inserted directly into the rubber part.
Pads size 30x10 and larger are further equipped with a special clip in order to avoid unwanted rotation during operation.
The suction pads can also be ordered separately without nipples as spare parts.Applications:
- Handling of narrow workpieces with small undulated gripping surface such as plates, extruded profiles plastic components, etc.
- Handling of frame elements as for example doors, windows, etc.
- Silicone version for the handling of pieces at high temperatures.
Flat suction pads (round) for Packaging Series VPCF
Suction pads in Elastodur ED-65.
Diameters from 1 to 65 mm with thread size M5, G1/8 and G1/4, both male and female.
Series VPCF flat suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
These suction pads are very suitable for the handling of packagings like rigid cardboard boxes and trays in the pharmaceutical, cosmetics and food industries.
Common applications are:
- Palletising and de-palletising processes.
- Heavy-duty applications in terms of hold and wear.
- Loading from the top and from the side in cartoning machines.

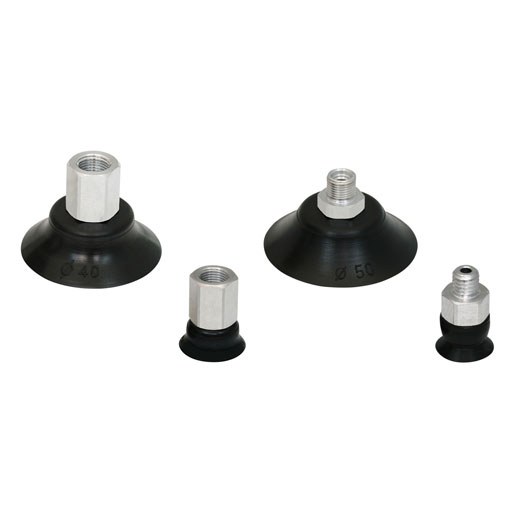

Flat suction pads (round) Series VTCF
Universal suction pads in NBR or Silicone.
Diameters from 3,5 to 95 mm with thread size M3, M5, G1/8, G1/4, both male and female.
Series VTCF flat suction pads consist of a nipple and rubber part which are delivered separately.
In fact, both components can be ordered separately as spare parts.
From diameter 60 mm and up a mounting plate is vulcanised into the rubber part to which the nipple should be mounted.
These suction pads are generally used for handling of objects with smooth or slightly curved surfaces such as sheets of different materials, extruded profiles, cardboard boxes, plastic components, wood panels etc.
Applications:
- Handling of flat parts with smooth or slight rough surfaces.
- Silicone version for the handling of parts at high temperatures.

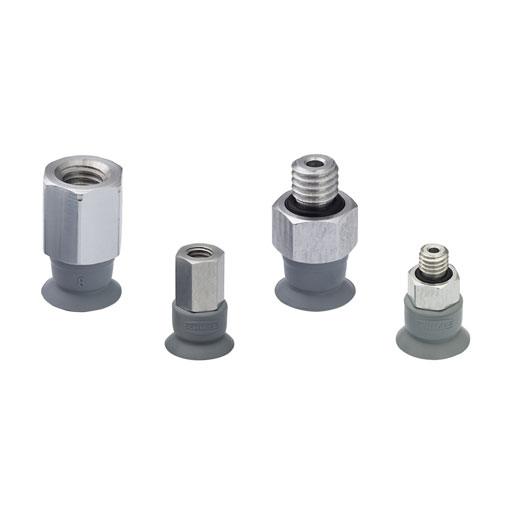

Flat suction pads Series VSCF
Universal suction pads in NBR or Silicone.
Diameters from 1 to 100 mm with thread size M3, M5, G1/8, G1/4, both
male and female.
Series VSCF flat suction pads consist of a nipple and rubber part which are delivered assembled.
Both components can be ordered separately as spare parts.
From diameter 60 mm and up a mounting plate is vulcanised into the rubber part to which the nipple should be mounted.
These suction pads are generally used for handling objects with smooth or slightly curved surfaces such as sheet metals, extruded profiles, cardboard boxes, glass plates, plastic components, wood panels etc.
Applications:
- Handling of parts with flat or slightly curved surfaces like sheet metal for car body workshops, tubes, cardboard boxes, etc.
- Silicone version for the handling of parts at high temperatures
