Cylinders not according standards

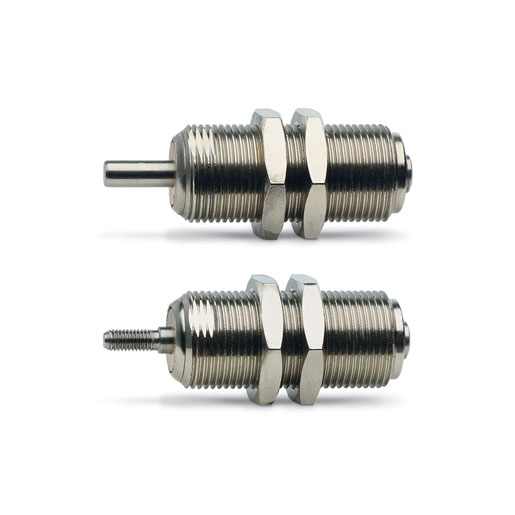

Compact mini-cylinders Series 14
Single-acting
Bores ø 6, 10, 16 mm and strokes 5, 10, 15 mm
With super-rapid fitting ø 4 and M5 port
Series 14 single-acting compact mini-cylinders have been designed for installation in very small spaces. The design allows the cylinders to be inserted into threaded blocks incorporated in the machine.
All the minicylinders are supplied with a super-rapid fitting incorporated in a tube ø 4 or with a M5 thread. They are available in two versions with either a threaded or a non threaded piston rod.

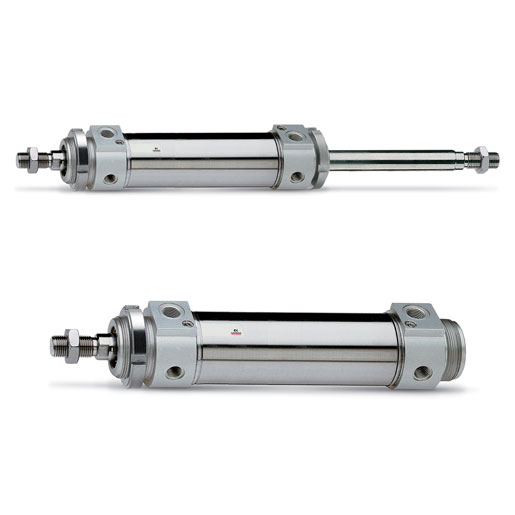

Cylinders Series 42
Single and double-acting, magnetic, cushioned
Ø 32, 40, 50, 63 mm
Series 42 cylinders have been designed without tie rods to assure an extremely clean design.
Stainless steel has been used for the tube and the rod, while the end cover is made in anodized Aluminium. These cylinders are normally equipped with adjustable end-stroke cushioning and with a mechanical cushioning in order to make the impact of the piston less noisy as it reaches the end of the stroke.

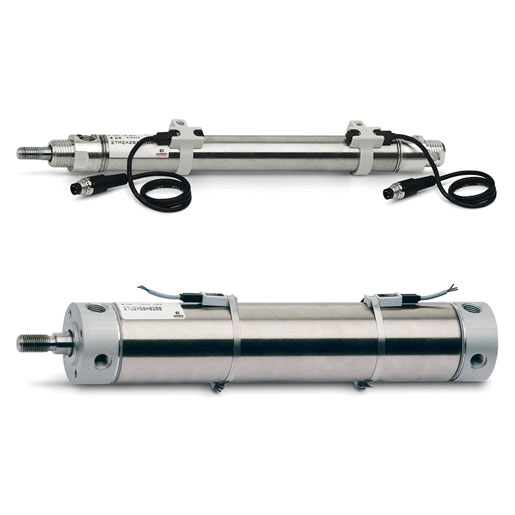

Roundline cylinders Series 27
Double-acting, magnetic
ø 20, 25, 32, 40, 50, 63 mm
Series 27 has been designed to reduce the cylinders sizes as much as possible. These cylinders have been constructed with clean lines using stainless steel for both the tube and the rod and Aluminium for the end-blocks.
The choice of material and other design features have allowed to create a range of versatile and reliable cylinders.
The precise method of securing the tube to the end block ensures that all the parts are perfectly aligned.
Mechanical cushioning has been fitted on these cylinders in order to reduce noise produced by the piston impact on the end-blocks.
Cylinders Series 27 are suitable for assembling with magnetic sensors.
Various mounting bracket accessories enable the cylinders to be fitted to suit the requirements of a particular application.
