Flow control valves in 316L stainless steel Series XRFU and XRFO
The unidirectional and bidirectional flow controllers are equipped with G1/8, G1/4, G3/8 and G1/2 ports. All models can be used in environments with aggressive fluids or gases.
RELATED PRODUCTS

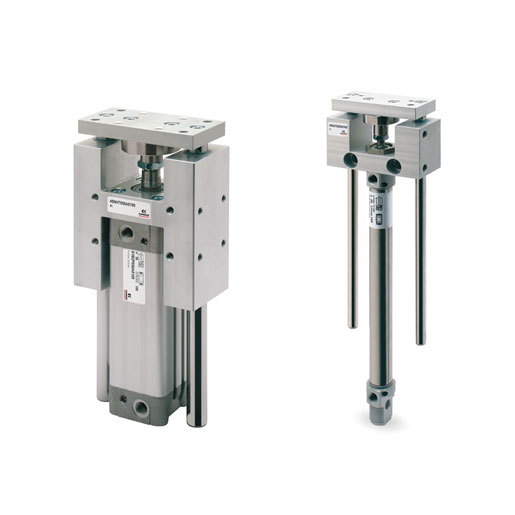

Anti-rotation guide units Series 45
Suitable for cylinders:
- DIN/ISO 6432 (Ø 12, 16, 20, 25 mm)
- ISO 15552, previous DIN/ISO 6431 (Ø 32, 40, 50, 63, 80, 100 mm)
Series 45 guide units can be used with all DIN/ISO 6432 cylinders of Ø 12 ÷ Ø 25 and ISO 15552, previous DIN/ISO 6431, cylinders of Ø 32 ÷ Ø 100.
They have been developed in order to prevent piston rod rotation and can support possible radial loads.
Series 45 guide units are available in three different models depending on the applicable loads.
The UT and HT guides with crawling supports are self lubricating, while HB guides have a ball bush.
To ensure the right choice of the loads in relation to the stroke, please refer to the graphs.
The shorter the stroke the higher will be the applicable loads.

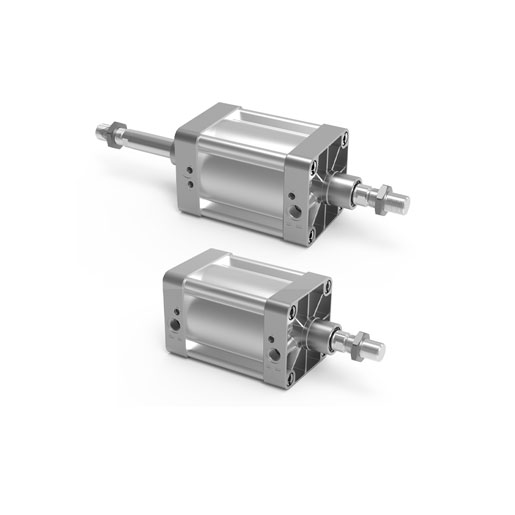

Cylinders aluminium profile Series 41K
Double-acting, cushioned, magnetic Ø 160 - 200 mm
Series 41K cylinder comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
The mounting brackets used on the end-blocks tube are designed in an extremely secure way, making use of cylinder tie-rods positioned internally and not visible on the assembled cylinder.
This cylinder series is normally equipped with adjustable endstroke cushioning by means of a screw positioned on the end-block.

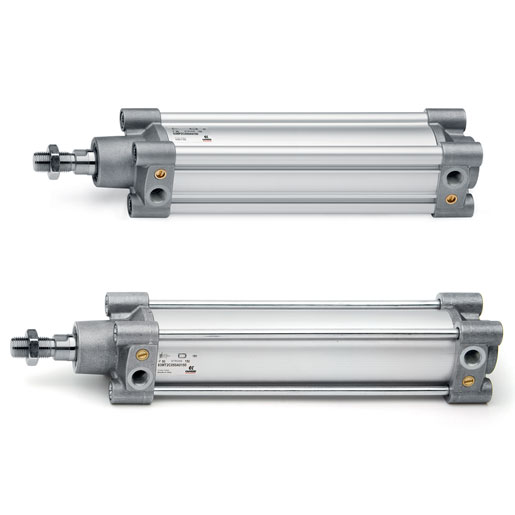

Cylinders ISO 15552 Series 63
Single and double-acting, magnetic, cushioned
Ø 32, 40, 50, 63, 80, 100, 125 mm
The Series 63 pneumatic cylinders have been developed to guarantee high performance and versatility.
Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block.Besides the standard version, which can be used in many sectors, specific solutions have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications.
There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.

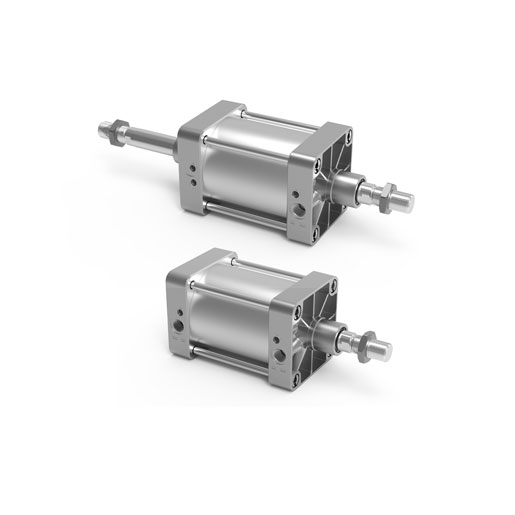

Cylinders Series 40K
Double acting, cushioned, magnetic
Ø 160 - 200 - 250 - 320 mm
Series 40K cylinders comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
A permanent magnet on the piston of these cylinders is able to send, through proximity switches mounted on the cylinder sliding axis, electrical signals to indicate its position.This series is normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
Hydrochecks Series 43
Bore ø 40 mm
Regulated thrust or return stroke
Skip-Stop function
Series 43 hydrocheck units are available with two different types of control: regulated outward movement and fast return; or fast outward movement and regulated return.
These hydrochecks come complete with an oil surge tank which ensures automatic equalisation.
Speed variation is obtained by means of an incorporated flow regulator designed to allow comprehensive and constant use.Upon request, they can be supplied with an incorporated stop valve or an acceleration valve or both.
To restore oil when the minimum level in the surge tank is reached, use the following oil and pump Mod. 43N-PMP:
hydraulic oil, class H, ISO symbol HG 46, viscosity 4.5 E. at 40°C.
