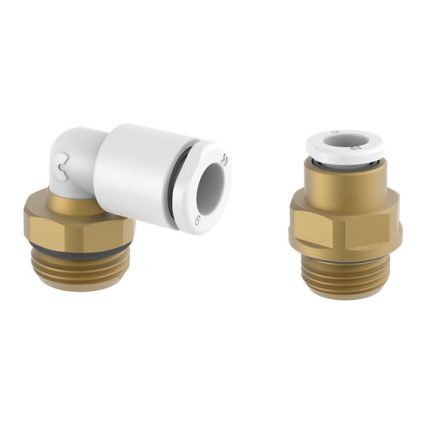

GRIPfit push-in fittings Series 7000 – Cooling
Tube external diameters: 6, 8, 10, 12, 16 mm
Fittings threads: ISO-228 BSPP (G1/8, G1/4, G3/8).
Fittings threads: ISO-228 BSPP (G1/8, G1/4, G3/8).
Series 7000 Cooling push-in fittings have been designed with a special technopolymer based on bio-sourced renewable raw materials that allow the component to resist water absorption, temperature variations and liquid cooling additives.
General Data
| Diameter | Ø 6 mm | Ø 8 mm | Ø 10 mm | Ø 12 mm | Ø 16 mm | |
| Maximum working pressure | – 20° / + 40° + 40° / + 70° + 70° / + 100° |
16 bar 14 bar 12 bar |
16 bar 12 bar 10 bar |
16 bar 10 bar 8 bar |
||
| Minimum working pressure | -0,9 bar | |||||
| Temperature | – 20 ÷ + 100 (See characteristics of tubes used) | |||||
| Threads | GAS cylindrical ISO-228 BSPP | |||||
| Connecting tube | Polyurethane (PU), Polyethylene (PE), Polyamide (PA), Fluoropolymer (PTFE), Polyester (HY3L), rigid metal pipe with smooth grooved metal end | |||||
| Fluid | Industrial water and cooling fluids (for other fluids consult our technicians) | |||||
| Materials | (A) Body = Technopolymer (PA11), Brass with chemical nickel plating (B) Button = Technopolymer (PA66) (C) Gripping ring = Stainless steel (AISI 301) (D) Seals = EPDM (E) Thread = Brass with chemical nickel plating |
|||||
