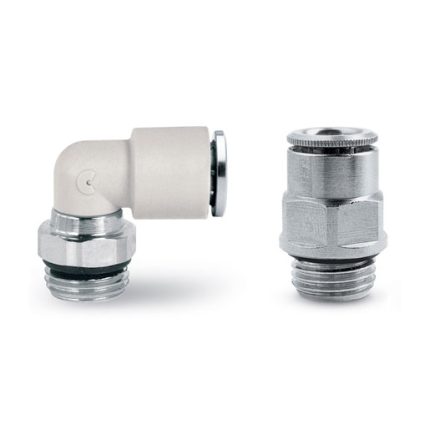

GRIPfit push-in fittings Series 7000 – Medical
Tube external diameters: 4, 6, 8, 10 mm
Fittings threads: ISO-228 BSPP (G1/8, G1/4),
ISO-965 Metric parallel (M5).
Fittings threads: ISO-228 BSPP (G1/8, G1/4),
ISO-965 Metric parallel (M5).
Series 7000 Medical push-in fittings are designed for the Life Science market, particularly for medical and analytical applications.
These fittings are mainly made from bio-based materials and are compatible with most medical gases and fluids.
These fittings are mainly made from bio-based materials and are compatible with most medical gases and fluids.
