Silencers Series 29
Series: 2901 - 2903 - 2921 - 2931 - 2928 - 2929 - 2905
Ports: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1
Ø 4, 6, 8, 10, 12 mm
The silencers are indispensable elements for eliminating or reducing the characteristic noise of compressed air during discharge operations.
They should always be placed on the outlets of 3/2, 5/2 or 5/3-way valves.
When carrying out maintenance, the silencers should be degreased using white spirit or paraffin and compressed air blown through them in the opposite direction to operation.Flow rate: determined with inlet supply 6 bar and output in atmosphere.
Noise level: determined through a test which is carried out using a phonometer.
Placing the phonometer one meter away from the application at the same height for a period of ten seconds gives an average reading of the noise generated.
Solenoid valves Series CFB
2/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Normally Closed (NC)
Series CFB solenoid valves for general purpose are available in the NC and NO version, 2/2 and 3/2-way.
Special versions are available on demand for the protection against the water hammer or with specific traitments for the interception of aggressive fluids.The valve function is determined by a poppet or by a diaphragm with operation direct or indirect.
Different versions are available according to the nominal diameter and to the threaded ports, as shown in the following tables.
They can thus satisfy various requirements in terms of flow rates and working pressures.
Solenoids GP… – B7… – G93 – U7… – U7…EX – G7… – A8… – B8… – H8… – B9…
Stainless steel solenoid valves Series CFB
2/2-way - Normally Closed (NC)
3/2-way - Normally Closed (NC)
Series CFB Stainless Steel direct acting solenoid valves for general purpose, 2/2-way and 3/2-way NC, are the ideal solution for a wide range of applications whereby the environment and fluids used can be particularly aggressive and contaminating.
Special versions are available on demand.
The valve function is determined by a poppet and the operation is direct.
Different versions are available according to the nominal diameter and to the threaded ports, as shown in the following tables.
They can thus satisfy various requirements in terms of flow rates and working pressures.
Unidirectional valves in 316L stainless steel Series XVNR

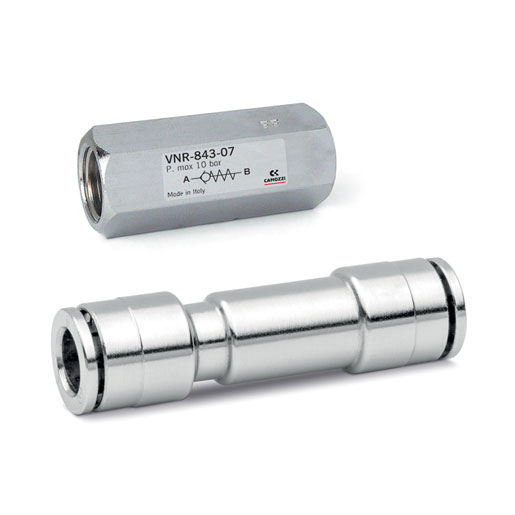

Unidirectional valves Series VNR
Valves and solenoid valves (ISO 15407-1) Series 7
Size: 18 mm (VDMA 24563-02), 26 mm (VDMA 24563-01)
5/2 - 5/3-way CC CO CP
VDMA 24563 (ISO 15407-1)
The Series 7 solenoid valves with ISO 26 mm and 18 mm interface which have electropneumatic actuation and return are suitable for mounting on a sub-base.
For electrical actuation, 2 types of solenoid Series W and Series P (available with a wide range of voltages, on request).
The Series 7 solenoid valves with ISO 26 mm and 18 mm interface which have pneumatic actuation and return are suitable for mounting on a sub-base.
For the correct use of the valve, the pilot pressure must be the same or higher than the operating pressure.
Valves and solenoid valves Series 3
2x3/2, 3/2, 5/2 and 5/3-way CC CO CP
Ports: G1/8 and G1/4
Series 3 solenoid valves with G1/8 and G1/4 ports have been designed in the 3/2, 2 x 3/2, 5/2, 5/3 versions and with the following two devices of actuation:
- Electropneumatically actuated with mechanical spring return
- Electropneumatically actuated with external and internal air pressure supply
Valves and solenoid valves Series 4
3/2, 5/2 and 5/3-way CC, CO
Ports: G1/8, G1/4, G3/8, G1/2
Series 4 solenoid valves have been designed in the 3/2, 5/2, 5/3 versions and with the following two devices of actuation:
- electropneumatically actuated with mechanical spring return
- electropneumatically actuated and return with external and internal air pressure supplySeries 4 valves are equipped with a manual override which allows a stable
operation and they are particularly suitable for mounting in arduous conditions.
All these valves can be operated by solenoids Series U, G A8 and H8.
Pneumatically actuated valves 3/2 NC become NO when the supply is on connection 3.
Valves and solenoid valves Series 9
Valves and solenoid valves Series D VA version
3/2; 2x3/2; 5/2; 5/3-way
With outlets on the body - For individual or manifold assembly
Size 10,5 - 16 - 25 mm
Camozzi has developed a new series of valves for applications with limited installation space where it is necessary to have the control elements as close to the actuator as possible.
Valves with threads on the body can be used individually or assembled on manifold. The sub-base version allows a better cleaning of the application.
Thanks to the extreme robust aluminium body, the Series D valves guarantee maximum reliability even under difficult operating conditions.
Valves and solenoid valves Series D VB version
2x3/2; 5/2; 5/3-way
Manifold assembly
Size 10,5 - 16 - 25 mm
Camozzi has developed a new series of valves for applications with limited installation space where it is necessary to have the control elements as close to the actuator as possible.
Thanks to the extreme robust aluminium body, the Series D valves guarantee maximum reliability even under difficult operating conditions.
