Flow control valves Series RFU and RFO
Unidirectional and bidirectional
Ports: M5, G1/8, G1/4, G3/8 and G1/2
Nominal diameters: 1,5 mm (M5), 2 and 3 mm (G1/8),
4 and 6 mm (G1/4), 7 mm (G3/8 and G1/2)
The unidirectional flow controllers are equipped with M5, G1/8, G1/4, G3/8 and G1/2 ports.
G1/8 and G1/4 ports are available with two different types of adjustment, whereas M5, G3/8 and G1/2 ports have just one type of adjustment.
All models can be panel or wall mounted or they can be mounted on cylinders, as required.To choose the most suitable model, it is recommended to:
- Calculate the quantity of air in Nl/min
- Determine the stroke time of the cylinder
- Check the flow diagrams.
Flow control valves Series SCU, MCU, SVU, MVU, SCO, MCO
Unidirectional and bidirectional banjo flow control regulators
Ports: M5, G1/8, G1/4, G3/8, G1/2
These unidirectional and bidirectional flow controllers have been designed as small as possible so as to be mounted directly on valves or cylinders.
The great variety of adjustable fittings makes it possible to complete the regulator with the most suitable system in relation to the available tube.
Only the G1/2 model is supplied complete with banjo flow controllers.
For the other models the banjo flow controller is to be requested separately.
Flow control valves Series TMCU, TMVU, TMCO
Unidirectional and bidirectional banjo flow controllers with nominal diameter 2 - 3,8 - 5,8 - 8 mm
Ports: G1/8, G1/4, G3/8, G1/2
Series TMCU, TMVU, TMCO unidirectional and bidirectional flow controllers have been revised in order to decrease their dimensions and improve their flow rate characteristics. Their construction allows for easy assembly to cylinders and valves and allows the regulation adjustment to be precise and gradual.
Flow regulators in 316L stainless steel Series XSCU, XSCO, XMFU and XMFO
Foot operated pedal Electrical and pneumatic Series 3 and Series 2
Series 3: G1/4, 5/2-way - NC / NO contacts
Series 2: M5; 4/2 tube; 3/2-way NC
The pedals can be supplied in either a pneumatic or electrical foot operated version.
The pneumatic type is available with a 5/2 valve and G1/4 front ports, which allow the fittings and silencers to be assembled conveniently on the front face.
A 3/2 operation can be obtained by closing an outlet port.
The electrical type is available with a single-pole changeover contact microswitch and a front wire outlet (PG9).
The pedal can be operated as bistable or monostable, by switching the selector placed under the small red protection flap, as shown in the drawing.
Hand valve – Union straight Mod. CL29 – Inch
Indirect acting solenoid valves Series K8B
2/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Normally Closed (NC) and Normally Open (NO)
Series K8B pilot operated solenoid valves represent the evolution of Series K8 which has been equipped with a flow amplifier.
Their particular design makes these valves ideal for use in applications requiring very compact solutions and high flow.
Thanks to their low power consumption and light weight Series K8B solenoid valves are particularly suitable for use with portable equipment too.

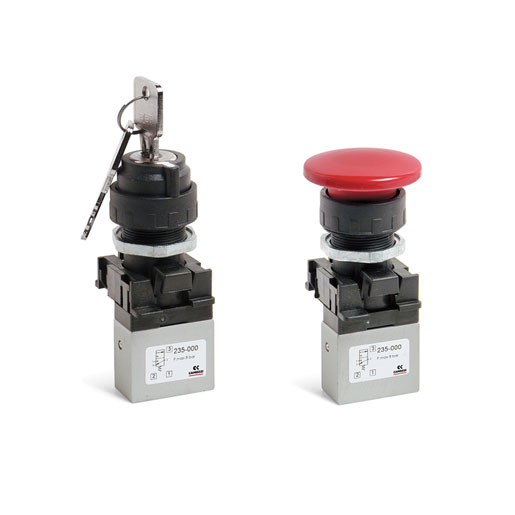

Manually operated console minivalves Series 2
3/2 NC, NO
Ports M5, cartridge Ø4
This series of miniature valves has been especially designed to satisfy all the application requirements of the controls industry with particular attention paid to the operating characteristics required from these components:
- Short operational stroke;
- Small dimensions.

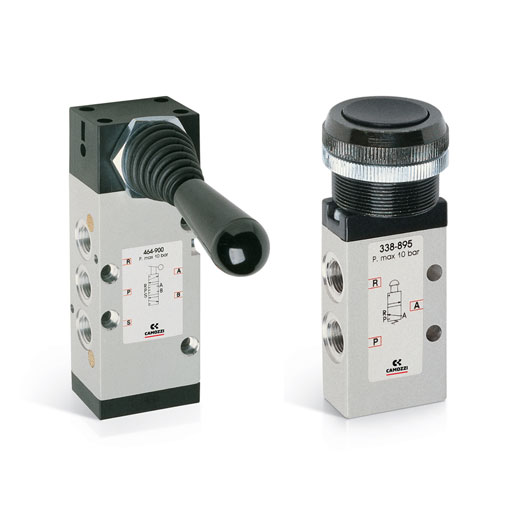

Manually operated valves Series 1, 3, 4 and VMS
Series 1, 3 and 4: 3/2-, 5/2- and 5/3-way CC, CO; ports G1/8, G1/4
Series VMS: 3/2-way; ports M5, G1/8, G1/4, G3/8, G1/2 and G3/4

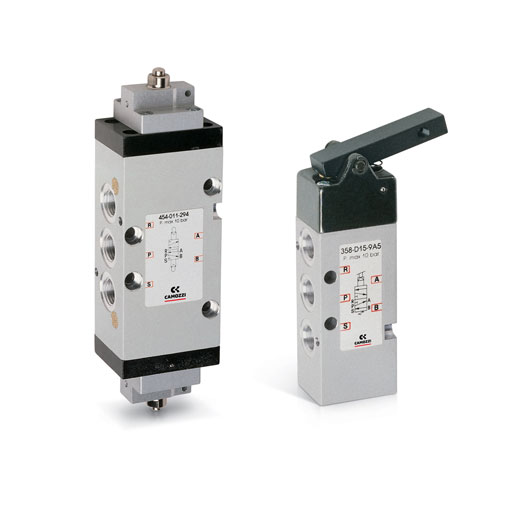

Series 3 manual valves (G1/8) and Series 4 (G1/4), 3/2-, 5/2- and 5/3-way, are available with several devices designed to satisfy different needs.
Series 1 is provided with two devices: pushbutton (3/2-way) and lever (3/2 and 5/2-way).
Series VMS valves are 3/2-way slide valves which are available with ports M5, G1/8, G1/4, G3/8, G1/2 and G3/4.
The 3/2-way valves Series 3 and 4 are normally closed when 1 is the inlet and they can also be normally open when 3 is the inlet.
Series 3 and 4 5/2-way valves can be supplied via ports 3 and 5 with two different pressures, if a cylinder has to be operated using a delivery pressure which is different from the return pressure.

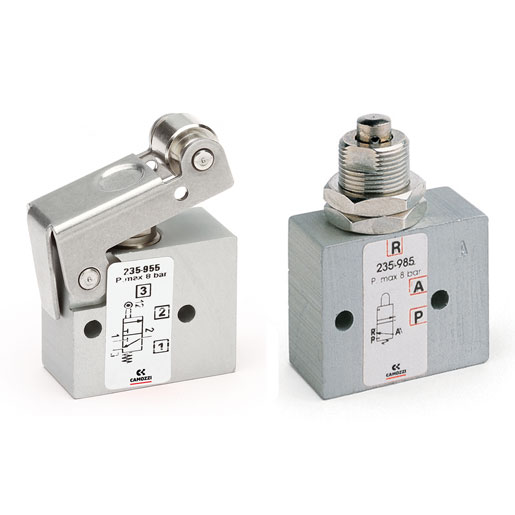

Mechanically operated minivalves Series 2
Mechanically operated sensor valves Series 3 and 4
3/2 and 5/2-way
Ports G1/8, G1/4
The particular mechanical device allows these end-stroke valves to operate with very low actuating forces.
Series 3 has been designed with a mechanical lever device which works in negative pressure. To increase sensitivity it is possible to add to the lever a steel extension with Ø3 mm.
