PLICSCOM
Pluggable display and adjustment module for plics® sensors
Measured value indication and adjustment of plics® sensors
Application area
Universal display and adjustment module suitable for all sensors of the VEGA plics® family, VEGABAR series 50/60/80, VEGADIF 65/85, VEGACAL series 60, VEGAFLEX series 60/80, VEGAPULS series 60, VEGASON series 60, PROTRAC as well as VEGADIS series 80.
Your benefit
- Simple to detach, hence use also with other sensors
- Simple and reliable adjustment of the plics® sensors through clear text indication with comprehensive graphic support
- Minimum time expenditure through reliable function and clear, graphic-capable LC display with 4-key operation as well as integrated lighting
- Optional possibility of wireless operation via Bluetooth with smartphone/tablet/PC as well as magnetic pen operation in case of housing lid with inspection window

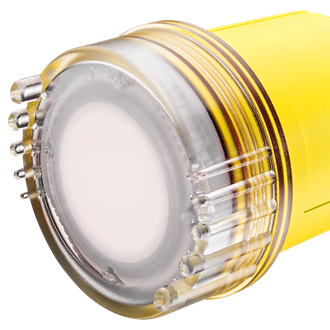

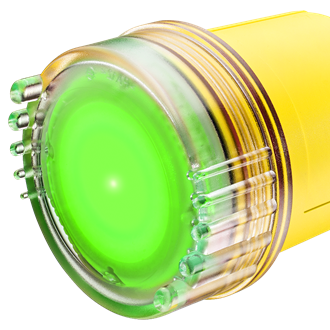

PLICSLED
Pluggable display module (switching status) for plics® sensors
Display module for plics® sensors with relay output
Your benefit
- Mininum time required for installation because no external wiring necessary
- Clearly visible switching state indication even by strong daylight
- Universal use
- High protection through module integrated in plics® sensor housing
PLICSMOBILE B81
External battery or accumulator unit for PLICSMOBILE
for supply of PLICSMOBILE and the connected HART sensors
Application area
External battery or accumulator unit for power supply of PLICSMOBILE and the connected HART sensors. Suitable for power supply and capacitance monitoring in conjunction with the external radio unit PLICSMOBILE.
Your benefit
- Economical solution for autarcic operation of PLICSMOBILE by battery or accumulator power supply
- Increased service life of the accumulator supply through external charging connection and connection of external solar panels
- Easy handling through use of standard batteries and accumulators (type D)
PLICSMOBILE S81
Solar panel
for charging the external battery unit PLICSMOBILE B81
Application area
External solar module for charging the external accumulator unit PLICSMOBILE B81 for autarkic measurements.
Your benefit
- Economical solution for autarcic operation of PLICSMOBILE by automatically charging of the accumulator unit
- Easy installation by use of standard solar panels including mast mounting bracket
PLICSMOBILE T81
External radio unit for remote monitoring
Measured data enquiry and remote parameter adjustment for a HART sensor
Application area
Application area The PLICSMOBILE T81 is a compact radio unit for recording and transmitting measured values via the mobile phone network (2G/3G/4G-LTE). Typical applications include the remote monitoring of levels in storage tanks and silos. Ideal for self-sufficient applications thanks to optional battery pack or rechargeable battery with solar panel. Connection of up to 15 sensors via HART multidrop. VEGA service package IoT connectivity tariff and embedded SIM included for subscribers to the VEGA Inventory System Hosting service.
Your benefit
- Monitoring of up to 15 sensors with one device
- Pre-configured data transmission for quick commissioning
- Self-sufficient installation possible without mains power supply
Profibus PA/DP segment coupler
Segment coupler from Profibus DP to Profibus PA
Application area
For use in conjunction with Profibus DP/PA bus systems. The segment coupler is suitable for coupling and power supply of Profibus PA networks. The Ex version ensures Ex intrinsic safety in conjunction with Ex circuits.
Your benefit
- Simple setup because no own GSD, DTM or EDD file or address must be used
- Reliable connection to Ex circuits by standardized FISCO procedure
- Economical, compact version with up to 10 Ex or 32 non-Ex field devices

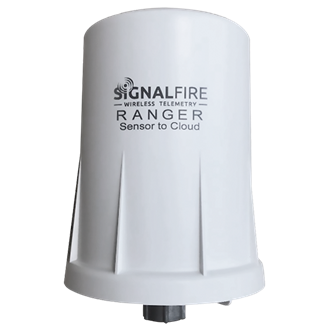

SignalFire Ranger
Application area
The SignalFire Ranger is an IIoT (Industrial Internet of Things) cellular transmitter using the latest LTE CAT M1 or NB-IoT technology for level and pressure sensors. It provides battery power to the sensor and cellular data transmission to the VEGA Inventory System (VIS) in remote locations.
Your benefit
- Simple setup and connectivity of a sensor to the cloud over cellular networks.
- Optimized for battery life using the latest cell modern technology LTE CAT M1 or NB-IOT.
- Cloud monitoring and alerting services through VIS hosting solution.
VEGA Inventory System – Local server version
On-premises software solution for inventory monitoring
Application area
VEGA Inventory System is a web-based software for data acquisition and visualization of level data, for example in storage tanks and silos. The local server version is particularly suitable for level monitoring within a company.
Your benefit
- Better transparency
- Simplified administration
- Optimized inventory management
- Data remain in the own company

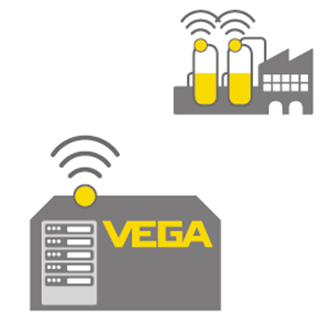

VEGA Inventory System – VEGA Hosting
VEGA hosted software solution of remote and inventory monitoring
Application area
VEGA Inventory System is a web-based software for data acquisition and visualization of level data, e.g. in storage tanks and silos. This service is suitable for level monitoring within a company and for Vendor Managed Inventory (VMI) applications.
Your benefit
- Better transparency
- Simplified administration
- Optimized logistics
- Secure supply
VEGA Tools App
Application area
The VEGA Tools app enables wireless adjustment of VEGA devices equipped with Bluetooth. Via smartphone or tablet, convenient access to VEGA device adjustment is made possible and the intuitive adjustment structure ensures easy setup and configuration of VEGA devices. An optimised display and diagnostic function is available especially in the VEGA Tools app, which can be used, for example, to visualise the measured value or sensor status quickly and easily. By scanning the data matrix code or the barcode on the type label or by entering the serial number, all relevant information on VEGA devices can be accessed.
VEGABOX 03
Breather housing with ventilation filter
Application area
The VEGABOX 03 serves the electrical connection and the ventilation of the hydrostatic submersible pressure transmitter, e.g. VEGAWELL 52.
Your benefit
- Reliable use even under rough ambient conditions thanks to robust housing materials
- Simple and quick connection through integrated spring-loaded terminals
- Protection against moisture through high quality ventilation filter
VEGACONNECT
Interface adapter between PC and communication-capable VEGA instruments
Application area
The VEGACONNECT is an interface adapter for connection of communication-capable VEGA instruments to the USB interface of a PC or laptop. In conjunction with PACTware and VEGA DTM, the VEGACONNECT can be also used as universal HART modem for HART sensors also of other manufacturers.
Your benefit
- Simple use on plics® series instruments
- Simple voltage supply through USB interface
- Manifold connection possibilities to different sensors by various attached connection cables, adapters and HART resistors
- There are magnets and hooks on the junction box for convenient work in the field
