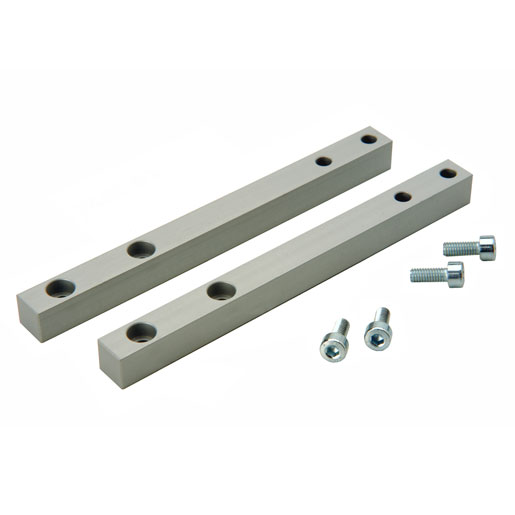

Vertical foot Mod. YA1K-B2
RELATED PRODUCTS
Anti-rotation guide units Series 45
Suitable for cylinders:
- DIN/ISO 6432 (Ø 12, 16, 20, 25 mm)
- ISO 15552, previous DIN/ISO 6431 (Ø 32, 40, 50, 63, 80, 100 mm)
Series 45 guide units can be used with all DIN/ISO 6432 cylinders of Ø 12 ÷ Ø 25 and ISO 15552, previous DIN/ISO 6431, cylinders of Ø 32 ÷ Ø 100.
They have been developed in order to prevent piston rod rotation and can support possible radial loads.
Series 45 guide units are available in three different models depending on the applicable loads.
The UT and HT guides with crawling supports are self lubricating, while HB guides have a ball bush.
To ensure the right choice of the loads in relation to the stroke, please refer to the graphs.
The shorter the stroke the higher will be the applicable loads.
Cylinders ISO 15552 Series 63
Single and double-acting, magnetic, cushioned
Ø 32, 40, 50, 63, 80, 100, 125 mm
The Series 63 pneumatic cylinders have been developed to guarantee high performance and versatility.
Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block.Besides the standard version, which can be used in many sectors, specific solutions have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications.
There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.
Cylinders with integrated guide Series QCTF – QCBF
Double-acting, magnetic, with double bearings and flanges
Ø 20, 25, 32, 40 mm
These cylinders have been designed to be used in applications where space is limited.
Regarding the bearings, the Slide Units are available in two versions, one with double sintered bronze bushes (Mod. QCTF) and the other with double linear ball bearings (Mod. QCBF).
The QCTF version would normally be selected when the side loads applied to the slide unit are high. Mod. QCBF is suitable for fast cycles (less side load) and higher precision.
The end cushioning is available in three different variants:
- Fixed mechanical cushion (standard);
- With two shock absorbers located on the body;
- With one shock absorber located central on the rear flange.
Short-stroke cylinders Series RPA
Double-effect, magnetic
With hollow through rod and mounting stud
Bores: 20 and 30 mm
The Series RPA short stroke cylinders are double acting actuators with aluminium hollow through rod and mounting stud. Available in two sizes, Ø 20 and Ø 30 mm, with different strokes and dimensions of the mounting stud, these actuators are equipped with the non-rotating function of the rod.
The Series RPA are prepared for the mounting of magnetic sensors (Series CSD), in fact, on the external profile, along the cylinder tube, you can find sensor positioning slots.
Their compact and light design together with the adopted technical solutions make these cylinders suitable to be used, combined with suction pads, in End Of Arm Tooling (EOAT) systems, especially in the sector of plastic injection moulding.
Stopper cylinders Series ST
Single and double-acting, magnetic, non-rotating
Sizes 20, 32, 40, 50 mm
The Series ST Stopper cylinders are pneumatic actuators with rod, complying with UNITOP and ISO 21287 standards, where rod and bushing have been specifically enlarged to ensure high resistance to radial loads and shocks.
These cylinders are available in two versions, double-acting and single-acting, and with rear spring.
The non-rotating rod version is also available.
The detection of the piston position is enabled by means of proximity switches (Mod. CST or CSH) which are mounted in slots along three sides of the cylinder profile.
It is possible to cover the slots with a proper profile (Mod. S-CST-500).
The high resistance to shocks and radial loads and the easy mounting makes Series ST particularly suitable for use in transport/conveyor lines where it is required to stop the transit of workpieces and workpiece-holder pallets.
