Multi-serial module Series CX
Interface with: PROFIBUS, CANopen, DeviceNet, EtherNet/IP, PROFINET, EtherCAT
Compatible with all Camozzi valve islands
Compatible with all Camozzi valve islands

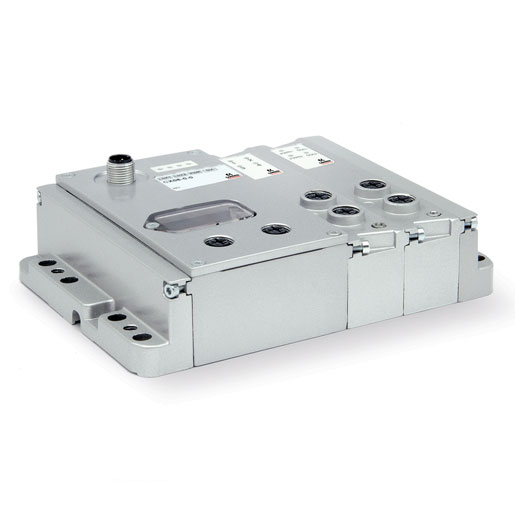

The Series CX serial module, with IP65 protection class, interface with all major serial communication protocols as well as the new generation EtherCAT, EtherNet/IP and PROFINET protocols. The highly resistant aluminium structure makes it suitable for mountings even in hard application conditions.
This serial module can be coupled with electric input and output modules and is able to handle up to a maximum of 1024 I/O. Its interface modules enable direct connection to Series F, HN and 3 valve islands. Through a subnet the connection system can be extended to remote valve islands.
Manuals, instruction sheets and configuration files can be found on shop.camozzi.com or on the QR code on the lable of the product.
RELATED PRODUCTS
Positioning Feedback Cylinders ISO 15552 Series 6PF
Double-acting low friction, magnetic
Ø 50, 63, 80, 100, 125 mm
Series 6PF pneumatic actuators are equipped with a potentiometric linear position transducer integrated inside the rod.
This type of cylinder allows, along the entire stroke, a constant control of the rod position which is read processing the change of the transducer internal resistance.
The pistons have been equipped with a permanent magnet which enables the use of external end-stroke sensors.
The dynamic seals are specific for low friction.
Thanks to the electrical connection, realized by means of an M12 male electric round connector positioned on the rear head, these cylinders fulfil the standards of IP67 protection class.
Series 6PF cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
They are available with bores from 50mm to 125mm with standard strokes from 50mm to 1000mm with intervals of 50mm.
The sturdy design, the flexible installation and the high performance make Series 6PF suitable for use in applications with tensioning cylinders, positioning cylinders and filling, cutting and measuring systems.
Series 16, 23, 24 and 25
Series 16: Ø 8, 10, 12 mm - non-magnetic
Series 23: Ø 16, 20, 25 mm - magnetic, auto-cushioned
Series 24: Ø 10, 12, 16, 20, 25, 32 mm - magnetic
Series 25: Ø 16, 20, 25, 32 mm - magnetic, cushioned
Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432. It is possible to choose from three different types of cushioning: mechanical (standard bumper on Series 16 and 24), adjustable pneumatic cushioning (Series 25) and pneumatic auto-cushioning (Series 23).
This last version, thanks to a patented system, automatically adjusts the cushioning in order to provide optimal deceleration during the entire cushioning phase.
The cylinder enjoys smooth, jolt-free movement, reducing vibrations and noise, while also guaranteeing high reliability and constant performance over time.
The adopted technical solutions and the choice of materials have provided the basis for a complete range of versatile and very reliable mini-cylinders.
They are suitable to be used in a multitude of industrial applications, especially where operating conditions undergo changes over time like for example wear of machine components.
Various mounting accessories are available to fix the cylinders in different ways.
Series 16, 24 and 25 Mini-Cylinders (DIN/ ISO 6432)
Series 16, 24 and 25 mini-cylinders are designed according to the European Standard Specifications CETOP RP52-P and DIN/ISO 6432.The choice of materials and other design features have provided the basis for a complete range of versatile and very reliable cylinders.The precise method of crimping the barrel at the head and cap ensures that all the parts are perfectly aligned. Since the Series 16 and 24 may operate at very high speeds, bumpers are attached to the piston as standard in order to reduce noice and wear resulting from high impact loads. Series 24 and 25 are suitable for mounting magnetic proximity switches.Series 25 has an adjustable pneumatic cushion and a magnetic piston. Various mounting accessories are available to enable the cylinders to function in a variety of applications.
Stainless steel mini-cylinders Series 94 and 95
Single-acting and double-acting, magnetic
Series 94: ø 16, 20, 25 mm
Series 95: ø 25 mm, cushioned
The Series 94 and 95 cylinders can be used in critical applications in which a high corrosion resistance is required (for example off-shore, marine, food).
Their construction enables the replacement of all seals.
Series 95 is normally equipped with adjustable end-stroke cushioning by means of a screw on the end block.
In addition both Series 94 and 95 are equipped with a mechanical cushioning in order to make the impact of the piston less noisy as it reaches the end of the stroke.
Stopper cylinders Series ST
Single and double-acting, magnetic, non-rotating
Sizes 20, 32, 40, 50 mm
The Series ST Stopper cylinders are pneumatic actuators with rod, complying with UNITOP and ISO 21287 standards, where rod and bushing have been specifically enlarged to ensure high resistance to radial loads and shocks.
These cylinders are available in two versions, double-acting and single-acting, and with rear spring.
The non-rotating rod version is also available.
The detection of the piston position is enabled by means of proximity switches (Mod. CST or CSH) which are mounted in slots along three sides of the cylinder profile.
It is possible to cover the slots with a proper profile (Mod. S-CST-500).
The high resistance to shocks and radial loads and the easy mounting makes Series ST particularly suitable for use in transport/conveyor lines where it is required to stop the transit of workpieces and workpiece-holder pallets.
