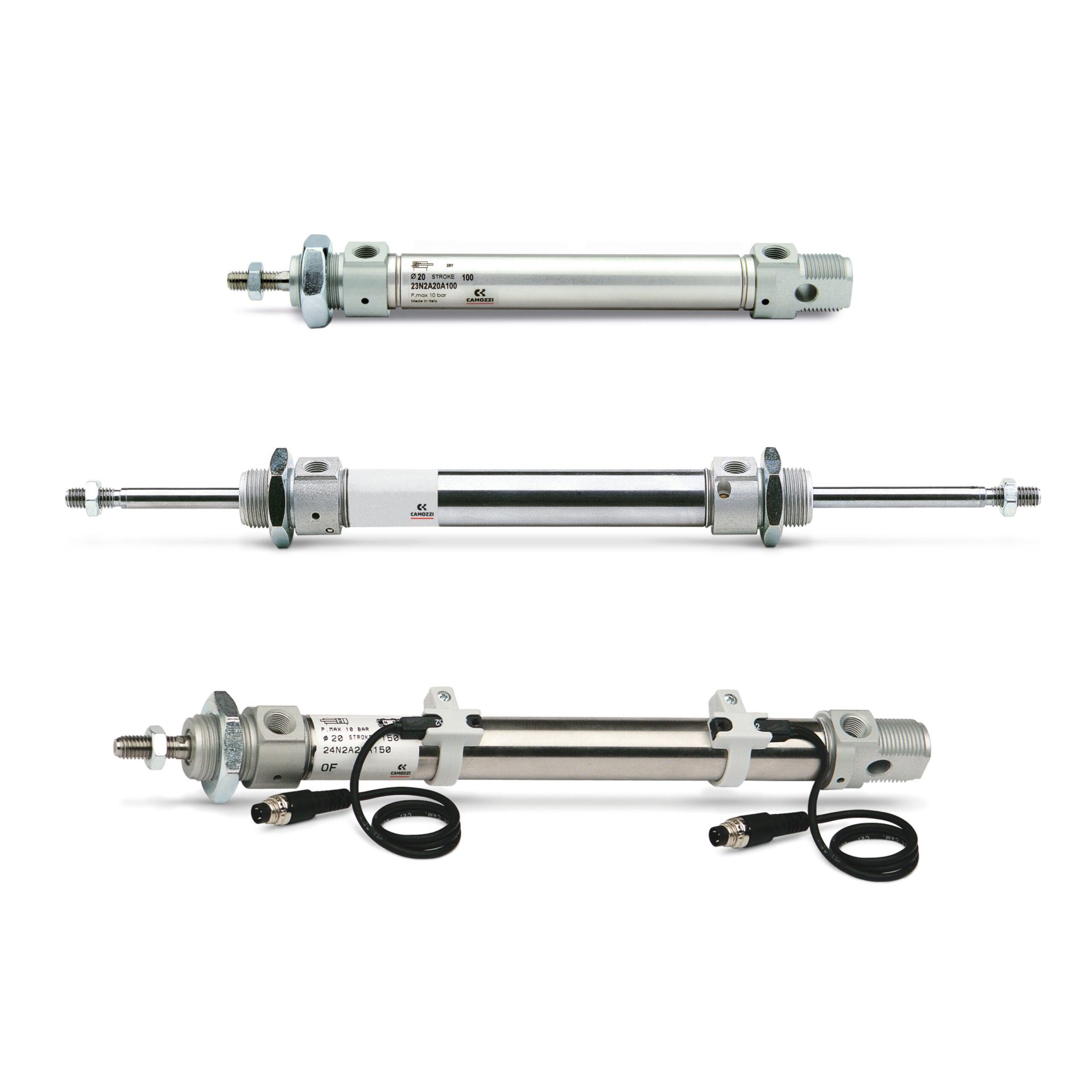

Series 16, 23, 24 and 25
Series 16: Ø 8, 10, 12 mm – non-magnetic
Series 23: Ø 16, 20, 25 mm – magnetic, auto-cushioned
Series 24: Ø 10, 12, 16, 20, 25, 32 mm – magnetic
Series 25: Ø 16, 20, 25, 32 mm – magnetic, cushioned
Series 23: Ø 16, 20, 25 mm – magnetic, auto-cushioned
Series 24: Ø 10, 12, 16, 20, 25, 32 mm – magnetic
Series 25: Ø 16, 20, 25, 32 mm – magnetic, cushioned
Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432. It is possible to choose from three different types of cushioning: mechanical (standard bumper on Series 16 and 24), adjustable pneumatic cushioning (Series 25) and pneumatic auto-cushioning (Series 23).
This last version, thanks to a patented system, automatically adjusts the cushioning in order to provide optimal deceleration during the entire cushioning phase.
The cylinder enjoys smooth, jolt-free movement, reducing vibrations and noise, while also guaranteeing high reliability and constant performance over time.
The adopted technical solutions and the choice of materials have provided the basis for a complete range of versatile and very reliable mini-cylinders.
They are suitable to be used in a multitude of industrial applications, especially where operating conditions undergo changes over time like for example wear of machine components.
Various mounting accessories are available to fix the cylinders in different ways.
RELATED PRODUCTS

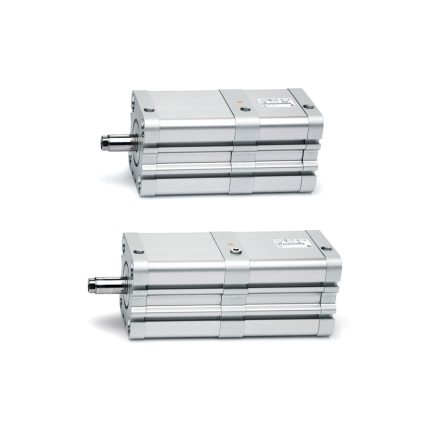

Compact cylinders, Tandem and Multi-position versions Series 31
