Valve islands, Multipole and Fieldbus Series HN
Multipole connection with 25 or 37 pins
Serial connection with the most common communication protocols
Valve functions: 2×2/2; 2×3/2; 5/2; 5/3 CC
Serial connection with the most common communication protocols
Valve functions: 2×2/2; 2×3/2; 5/2; 5/3 CC

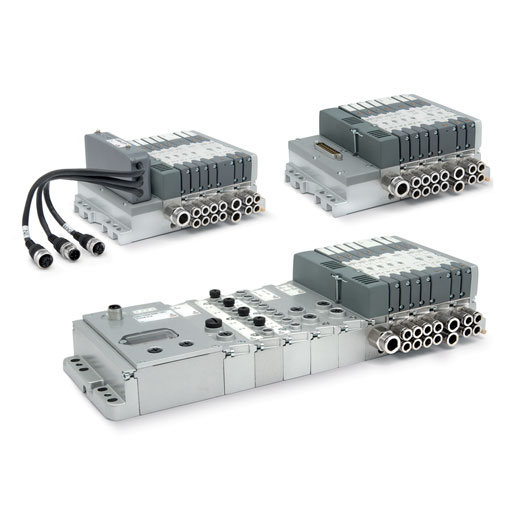

Thanks to the large range of options available, the Series HN valve islands represent an excellent solution for different applications, particularly in automation systems.
Small dimensions, high flow, pneumatic and electric modularity, electric connections on boards, possibility to interface with the multi-serial node Series CX, optimization of the signal distribution thanks to subbases for monostable and bistable solenoid valves are only some of the features that make this series a particularly innovative product.
Manuals, instruction sheets and configuration files can be found on shop.camozzi.com or on the QR code on the lable of the product.
RELATED PRODUCTS
Compact cylinders Series 31
Double and single-acting, double-acting non-rotating, magnetic
Ø 12, 16, 20, 25 mm
Ø 32, 40, 50, 63, 80, 100 mm UNITOP
The compact dimensions allow Series 31 single and double-acting magnetic cylinders to be installed within confined spaces.
These cylinders are suitable for use with feet, brackets.These cylinders are available in 10 different bore sizes from Ø12 to Ø100.
The guides are inserted in the external profile parallel to the sliding axis on three sides.
These guides are used to locate the switches that sense the piston position.
The construction design of these cylinders provides excellent axis stability.
They are available either with a male or female thread.
These cylinders can be supplied in W version for high temperatures (140°C).
This last version is not magnetic.
Cylinders Aluminium profile Series 61
Single and double-acting, magnetic, cushioned
Standard, low friction, low temperatures and tandem versions
Ø 32, 40, 50, 63, 80, 100, 125 mm
Series 61 cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
A permanent magnet, mounted on the piston in these cylinders, enables information to be received regarding the piston position by means of proximity switches mounted in grooves along the cylinder profile.
These grooves can be covered with a slot cover profile.This cylinder series is equipped with adjustable end-stroke cushioning.
Moreover, they are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.
Hydrochecks Series 43
Bore ø 40 mm
Regulated thrust or return stroke
Skip-Stop function
Series 43 hydrocheck units are available with two different types of control: regulated outward movement and fast return; or fast outward movement and regulated return.
These hydrochecks come complete with an oil surge tank which ensures automatic equalisation.
Speed variation is obtained by means of an incorporated flow regulator designed to allow comprehensive and constant use.Upon request, they can be supplied with an incorporated stop valve or an acceleration valve or both.
To restore oil when the minimum level in the surge tank is reached, use the following oil and pump Mod. 43N-PMP:
hydraulic oil, class H, ISO symbol HG 46, viscosity 4.5 E. at 40°C.
Short-stroke cylinders Series QN
Single-acting, non magnetic
ø 8, 12, 20, 32, 50, 63 mm
Series QN single-acting short-stroke cylinders have been designed so that they can be installed in very small spaces.
Due to the compactness and sturdiness of these cylinders, they are mainly suitable for positioning and locking.The available strokes are indicated in the tables.
Stainless steel cylinders Series 90
Single- and double-acting, cushioned, magnetic
ø 32, 40, 50, 63, 80, 100 and 125 mm
The Series 90 cylinders can be used in critical applications in which a high corrosion resistance is required (for example off-shore, marine, food).
This series of cylinders is normally equipped with end of stroke buffers with adjustable pneumatic cushioning.
Moreover, they are equipped with a mechanical cushioning that makes the impact of the piston less noisy as it reaches the end of the stroke.
