Valve islands, Individual and Multipole Series Y

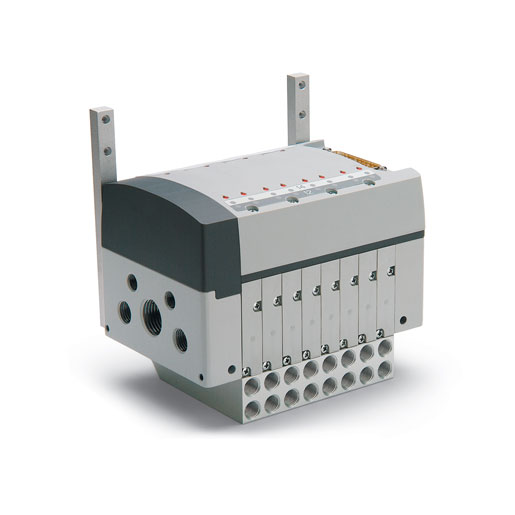

Valve island with integrated Pneumatics and Electronics.
Available versions: Individual, Multipole.
Valve functions: 2×2/2; 2×3/2; 5/2; 5/3 CC
Available versions: Individual, Multipole.
Valve functions: 2×2/2; 2×3/2; 5/2; 5/3 CC
Sub-bases and valve bodies are integrated in a sole “module”.
Different kinds of cartridges and spools are inserted in the module to configure the desired valve function.
The valve island can be expanded and modified and its maintenance is easy and safe.Manuals, instruction sheets and configuration files can be found on shop.camozzi.com or on the QR code on the label of the product.
Different kinds of cartridges and spools are inserted in the module to configure the desired valve function.
The valve island can be expanded and modified and its maintenance is easy and safe.Manuals, instruction sheets and configuration files can be found on shop.camozzi.com or on the QR code on the label of the product.
RELATED PRODUCTS
Compact cylinders Series 31
Double and single-acting, double-acting non-rotating, magnetic
Ø 12, 16, 20, 25 mm
Ø 32, 40, 50, 63, 80, 100 mm UNITOP
The compact dimensions allow Series 31 single and double-acting magnetic cylinders to be installed within confined spaces.
These cylinders are suitable for use with feet, brackets.These cylinders are available in 10 different bore sizes from Ø12 to Ø100.
The guides are inserted in the external profile parallel to the sliding axis on three sides.
These guides are used to locate the switches that sense the piston position.
The construction design of these cylinders provides excellent axis stability.
They are available either with a male or female thread.
These cylinders can be supplied in W version for high temperatures (140°C).
This last version is not magnetic.
Cylinders with integrated guide Series QC
Double-acting, magnetic piston, guided
ø 20, 25, 32, 40, 50, 63 mm
These actuators, suitable for use in very limited space, are available in two versions.
- QCT version: with sintered bronze bushes, suitable when the side loads applied to the cylinder are high.
- QCB version: with linear ball bearings, suitable for high precision and fast cycling applications.
Positioning Feedback Cylinders ISO 15552 Series 6PF
Double-acting low friction, magnetic
Ø 50, 63, 80, 100, 125 mm
Series 6PF pneumatic actuators are equipped with a potentiometric linear position transducer integrated inside the rod.
This type of cylinder allows, along the entire stroke, a constant control of the rod position which is read processing the change of the transducer internal resistance.
The pistons have been equipped with a permanent magnet which enables the use of external end-stroke sensors.
The dynamic seals are specific for low friction.
Thanks to the electrical connection, realized by means of an M12 male electric round connector positioned on the rear head, these cylinders fulfil the standards of IP67 protection class.
Series 6PF cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
They are available with bores from 50mm to 125mm with standard strokes from 50mm to 1000mm with intervals of 50mm.
The sturdy design, the flexible installation and the high performance make Series 6PF suitable for use in applications with tensioning cylinders, positioning cylinders and filling, cutting and measuring systems.
Series 16, 24 and 25 Mini-Cylinders (DIN/ ISO 6432)
Series 16, 24 and 25 mini-cylinders are designed according to the European Standard Specifications CETOP RP52-P and DIN/ISO 6432.The choice of materials and other design features have provided the basis for a complete range of versatile and very reliable cylinders.The precise method of crimping the barrel at the head and cap ensures that all the parts are perfectly aligned. Since the Series 16 and 24 may operate at very high speeds, bumpers are attached to the piston as standard in order to reduce noice and wear resulting from high impact loads. Series 24 and 25 are suitable for mounting magnetic proximity switches.Series 25 has an adjustable pneumatic cushion and a magnetic piston. Various mounting accessories are available to enable the cylinders to function in a variety of applications.
Stainless steel cylinders Series 97
Single- and double-acting, cushioned, magnetic.
Ø 32, 40, 50, 63 mm
Series 97 stainless steel cylinders can be used in critical applications where a high level of corrosion resistance is required (for example: off-shore, naval, food industries).
These cylinders are normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.
