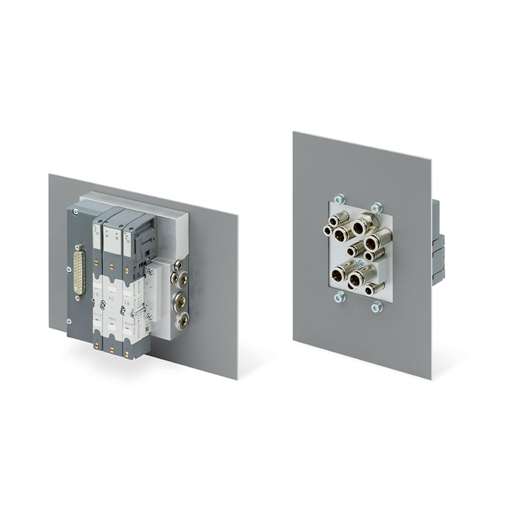

Valve islands Cabinet Version Series HC
Multipole connection with 25 or 37 pins
Valve functions: 2×2/2, 2×3/2, 5/2, 5/3 CC
Valve functions: 2×2/2, 2×3/2, 5/2, 5/3 CC
In applications which are subject to washing or operate in particularly dirty environments, having a specific solution represents a distinct advantage.
With the Series HC it is possible to exploit the subbase and relative perimetric seal to close the passage window of all tubings.
n this way the external environment is isolated from the internal part of the cabinet, guaranteeing a high protection level against solid and liquid particles that, upon entering, may damage the components.
With the Series HC it is possible to exploit the subbase and relative perimetric seal to close the passage window of all tubings.
n this way the external environment is isolated from the internal part of the cabinet, guaranteeing a high protection level against solid and liquid particles that, upon entering, may damage the components.
All pneumatic connections are immediately available avoiding operations for the installation of panel mount fittings.

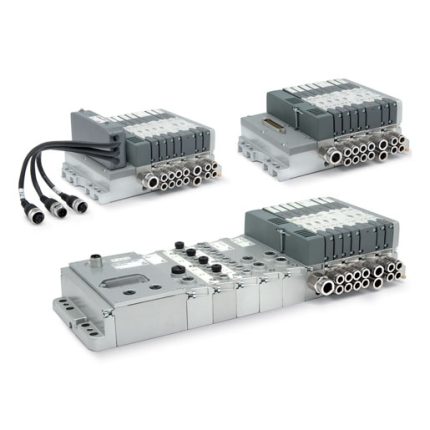

Series HC uses the same valve functions as those available in Series HN.
Thanks to a particularly flexible use of the valve positions, different configurations can be realized (further details can be found on the following pages regarding the correct management of electrical signals).
