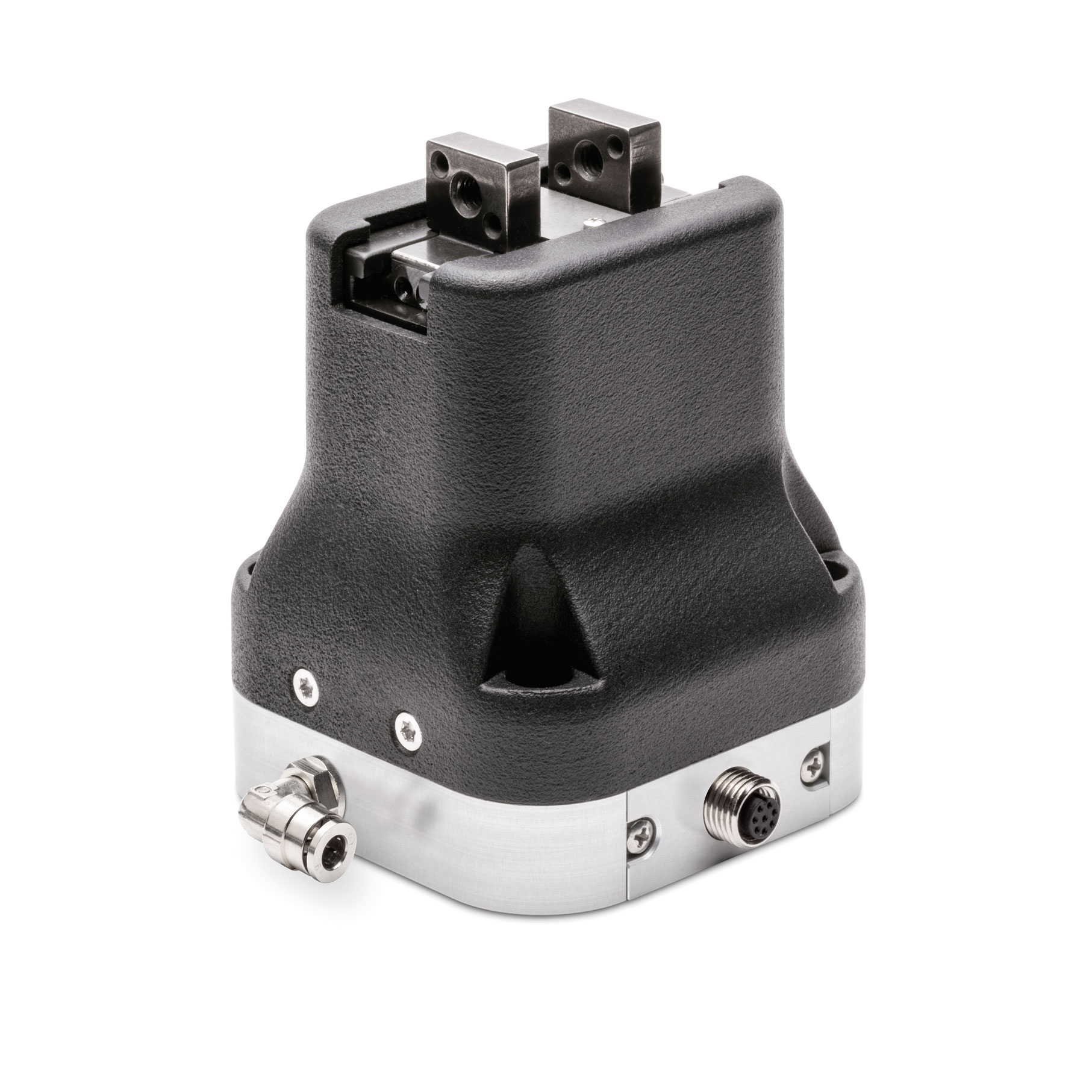

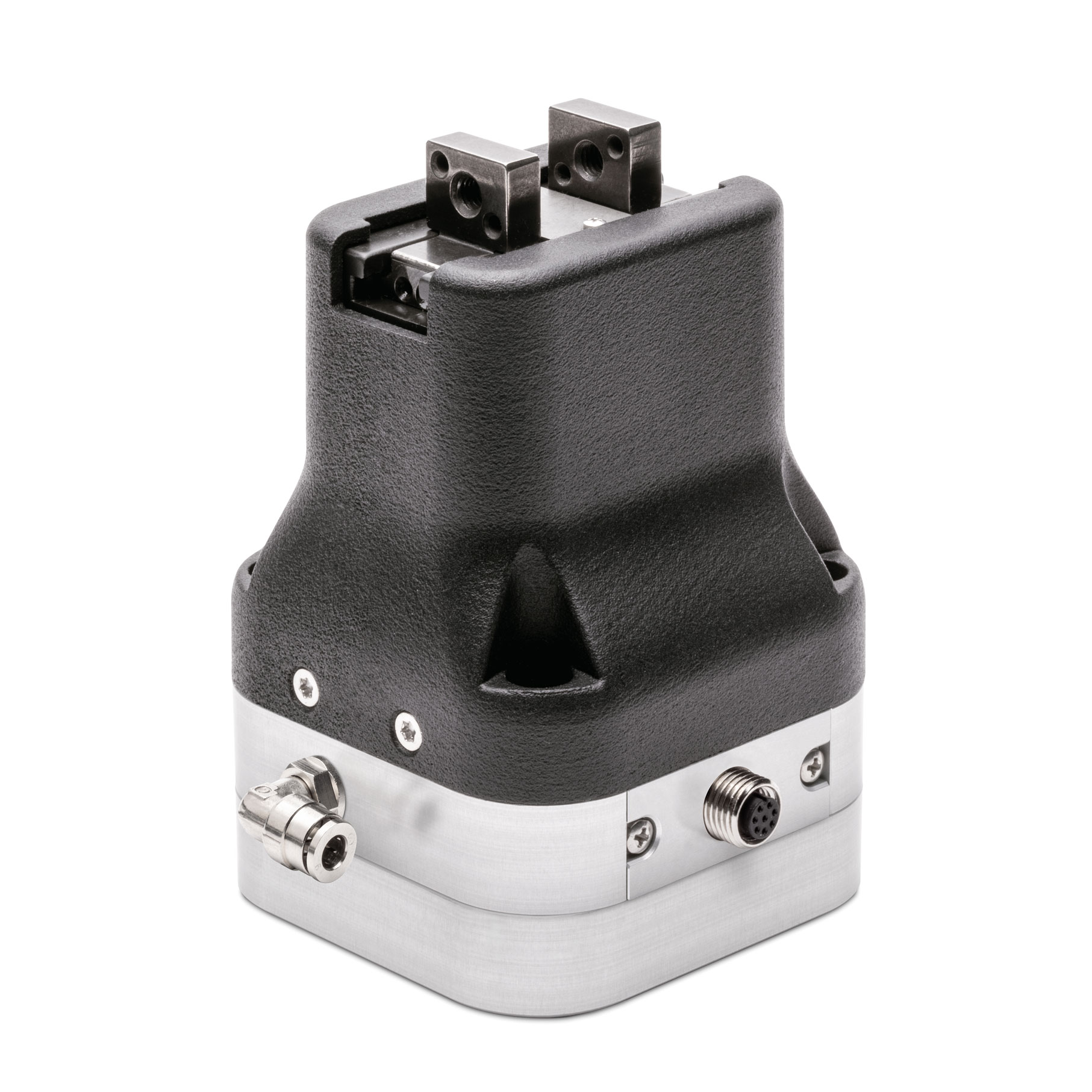

Collaborative Robot Gripper Series CSSP
Size 40

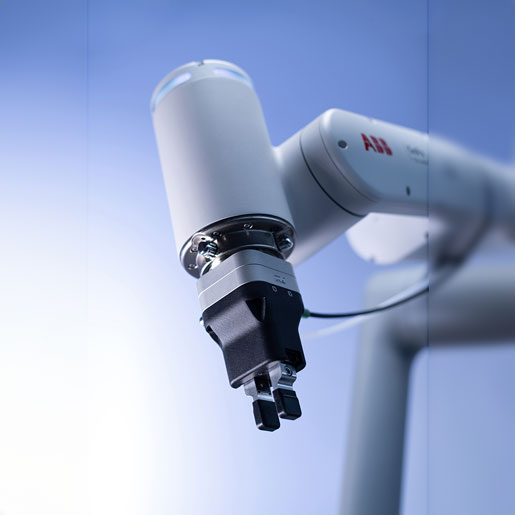

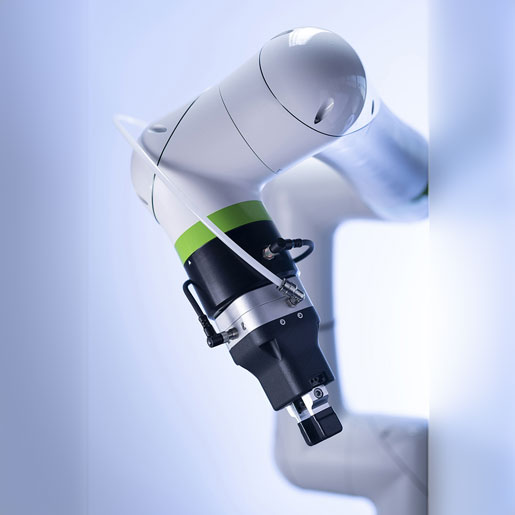

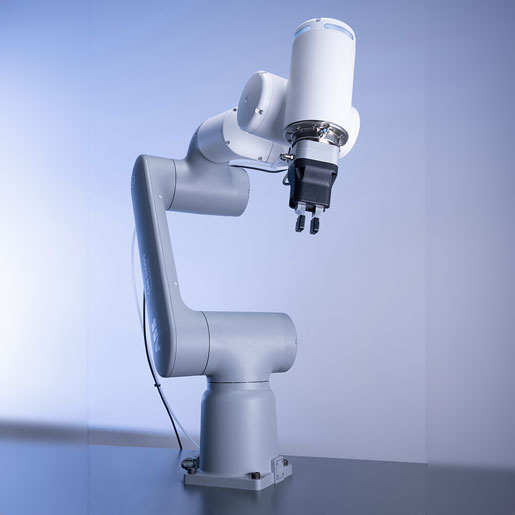

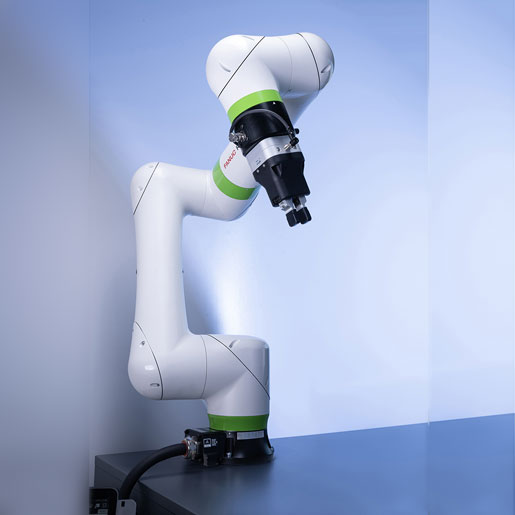

The Seseri CSSP pneumatic gripper provides an innovative solution for cobots used in industrial process applications such as machine tool tending, end-of-line packaging, and assembly.
Its lightweight and compact design optimises available space and cobot payload, ensuring flexibility, safety, ease of use, and efficiency.
