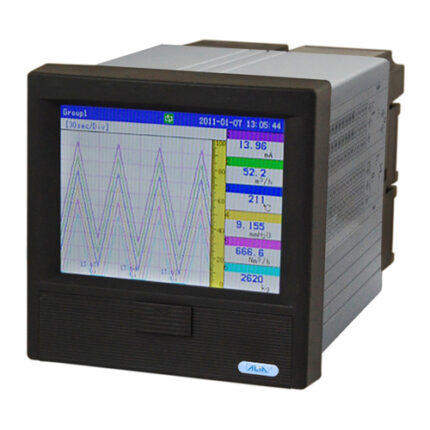

ARC1000 Series
The ARC1000 Series Paperless Recorder features the most advanced technology. It highlights in various channels, complete function, easy operation, high accuracy, low consumption and high performance, overcoming the disadvantages of old paperless recorder of limited channels and large occupancy if several recorders are to be installed.
Features
- DIN (288 * 288 mm), 800 * 600 Pixels, TFT truecolor (LCD)
- 500 MB built-in memory card, support long-term data record
- Common input signal: mA, include VDC, T/C, RTD, Hz etc.
- High Accuracy +/-0.15% of Reading
- Max. 24 points relay output, Max. 8 points 4-20 mA output, Max. 6 points 24 VDC output
- Can receive input signals of Max. 48 channels
- 24 VDC Aux. power supply, 2-Wire system
- Display / Record Single-point, Multi-point, Trend, Totalizer and Bargraph
- Records can be saved in USB memory & SD card and transferred to PC
- Ethernet communication, RS485 / RS232 function
Specification
| Number of Inputs | : | 1-48 channels |
| Input | : | T/C (K, S, B, E, J, N, T, R, N, etc.) |
| : | RTD, CU50, CU53, BA1, BA2 | |
| : | DCA (4-20 mA, 0-10 mA, 0-20 mA) | |
| : | DCV (0-5 V, 1-5 V, 0-10 V, 20 mV, 100 mV) | |
| : | Frequency (1 Hz-5 kHz) (4-24 VDC) | |
| : | Resistance (0-175 Ω, 0-400 Ω) | |
| Accuracy | : | +/-0.15% of Span |
| Response Time | : | 50 ms |
| Alarm Types | : | High & Low alarm, Incr.& Decr. alarm |
| Output | : | 4-20 mA * 8 points (Max. ), load 800 Ω |
| : | Relay, 3 A / 250 V * 24 points (Maximum) | |
| : | 24 VDC, 60 mA * 6 points (Maximum) | |
| Decimal Point | : | 2 Digits to the most |
| Storage Memory | : | 500 MB (on board) |
| Cycling Mode | : | Newest Data overwrites oldest data |
| Recording Data Shift | : | USB memory (32 GB) / SD Card (32 GB) |
| Display Update Rate | : | 1 s |
| Keypad | : | 12 Keys (Page, Left, Righ, Up, Down, Enter) for programming and display |
| control | ||
| Parameter Storage | : | Operation parameters are stored by |
| EEPROM for more than 10 years |
| Display | : | 10.4″ color-screen LCD |
| Trend & Bargraph | : | Vertical / Horizontal |
| Digital | : | 4-1/2 Digits programmable |
| Engineering Unit | : | 66 different engineering units |
| Parameter Protection | : | Password entry (6 Digits) |
| Logging Rate | : | 1-1800 Seconds Per Data |
| Recording Capability | : | 144 Hours (48 Points, 1 Data/Second) |
| : | 355 Years (8 Point, 1 Data/5 Hours) | |
| PC Software | : | Windows 2000 / XP / Vista / 7 / 8 |
| Display | : | Trend, Numerical, Circular, Alarm, |
| Bargraph, Totalizer | ||
| Convert Function | : | Saved as excel files |
| Protection Class | : | IP65 |
| Weight | : | Max. 7.5 kg |
| Dimensions | : | 288 mm (W) *288 mm (H) *254 mm (D) |
| Ambient Temperature | : | -10~60 °C |
| Ambient Humidity | : | 10-85% RH (5-40 °C) |
| Power Supply | : | 85-260 VAC, 50/60 Hz |
| Vibration Test | : | 10-60 Hz ,10 m/s2 for 3 hours |
| Power Consumption | : | ≤20 W |
| Communication | : | RS232 / RS485 (MODBUS protocol) |
| Ethernet |
