AVF7000 Series
The AVF7000 Series is a Vortex Flowmeter based on Von Karman’s theory of vortices generated by a bluff body in the pipe. The number of vortices is linearly proportional to the volumetric flow in the pipe. The AVF7000 is a versatile flowmeter widely used for Gases, Steam & Liquid applications. There are no moving parts and comes with either flange or wafer connection. Standard configuration has local indication for flowrate and total flow as well as 4-20 mA with HART signal and pulse output functions. The microprocessor design can filter out erroneous signals as well as interference caused by pipe vibration.
Features
- Simplified setup and self-diagnostic functions
- Auto. Temperature & Pressure compensation
- 4-20 mA with HART signal and pulse outputs, user selectable
- A very wide selection of sizes
- Wide temperature range up to 420 °C
- Non-volatile memory for setup and calibration
Specification
| Size | : | 15, 20, 25, 32, 40, 50, 65, 80, 100, |
| 125, 150, 200, 250, 300, 350, 400, 450, 500 mm | ||
| Measuring Range | : | Steam_1.6~540,000 kg/hr |
| : | Gas_3~46,000 m3/hr | |
| : | Liquid_0.3~4950 m3/hr | |
| Material | : | Stainless Steel 301 / 304 / 316 |
| Accuracy Liquid | : | +/-0.7% value of reading |
| Gas & Steam | : | +/-1.0% value of reading |
| Unit | : | Nm3/hr, Nm3/min, m3/hr, m3/min, |
| L/hr, L/min, L/s, t/d, t/hr, t/min, kg/hr, kg/m, kg/s, USgal/min, | ||
| UKgal/min, Scf/hr, cf/hr, Ib/hr, bbl/d… | ||
| Repeatability | : | +/-0.2% value of reading |
| Process Connection | : | Flange / Wafer |
| Flange Type | : | JIS 10K / JIS 20K / JIS 40K |
| ANSI 150# /ANSI 300# /ANSI 600# | ||
| DIN PN10 / PN16 / PN25 / PN40 | ||
| Temperature | : | -40~280 °C (Standard) |
| : | -40~420 °C (Option) | |
| Ambient Temperature | : | -20~60 °C |
| Pressure | : | 78 kgf/cm2 (Max.) |
| Protection Class | : | IP67 |
| : | Intrinsically Safe, Eex ia IIC T4 | |
| : | Explosion Proof, Ex d IIC T6 |
| Local Display | : | 2 or 3 lines LCD |
| : | 6 Digit flowrate | |
| : | 8 Digit Totalizer | |
| Current Output | : | 4-20 mA (2-Wire) with HART signal |
| Load | : | Rohm= (VDC-12) * 50 |
| Pulse Output | : | Scaled Pulse |
| Load | : | 1000-5000 Ω |
| Communication | : | HART (Compatible) |
| or RS485 (MODBUS Protocol) | ||
| Data Storage | : | Operation parameter and totalizer |
| figures are stored by EEPROM for more | ||
| than 10 years | ||
| Housing Material | : | Aluminum Alloy |
| Cable Entry | : | Standard: M20 * 1.5 Option: 1/2″ NPTF |
| Power Supply | : | 12-32 VDC |
| : | Ni-MH Battery (3 years working hours) | |
| KeyPad | : | 3 Internal keys for programming |
| and display control | ||
| Option | ||
| Pressure Sensor | : | Pressure compensation |
| Signal Output | : | 0-35 mVDC (20 μA Power Supply) |
| Temperature Sensor | : | Temperature compensation |
| Signal Output | : | PT1000 (2-Wire) |
RELATED PRODUCTS
AMF100 Series
The AMF100 Series is an insertion-type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 150-6000 mm.
AMF100 is widely used for tap water, waste water, food & beverage, pulp & paper and many other industrial fluid.
AMF100 Series electromagnetic flowmeter can be used in compact or remote type with AMC Series converter of electromagnetic flowmeter.
AMF900 Series
The AMF900 Series is a flange-type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 10A to 2000 mm.
AMF900 is widely used for sewage, industrial waste, chemical, solvent, food & beverage, pulp & paper and many other industrial fluids.
AMF900 Series electromagnetic flowmeter can be used in compact or remote model with AMC Series converter of electromagnetic flowmeter.
ASF7100 Series

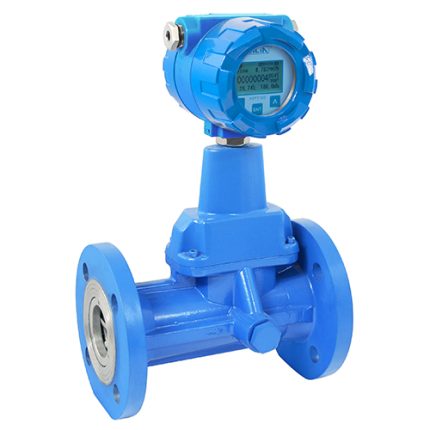

The ASF7100 Series Swirl Flowmeter is a gas flow meter that combines turbine & vortex flow measurement technologies to provide a reliable, high-accuracy, robust, maintenance-free flow meter. The turbine-shaped flow inlet causes the process flow to rotate causing a vortex core to form & a subsequent secondary rotation causes thread-like spirals to be formed. These resulting secondary pressure frequencies are linear & proportional & are measured by dual piezo-electric sensors. The resulting measurements are processed & pressure & temperature compensated and then converted to the flow measurement display. ASF7100 Series Swirl Flowmeter can be widely used in petroleum, chemical, electricity, metallurgy, coal and other industries.
