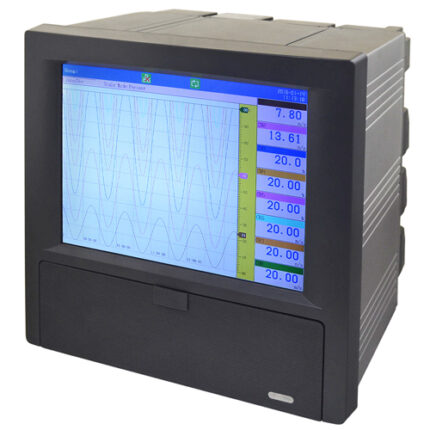

ARC900 Series
The ARC900 Series Paperless Recorder features the most advanced technology. It can be applied across a broad scope of industrial applications. ARC900 is the product which with multi-channels, complete functions, easy operation, high accuracy, low power but high performance. And the series overcome the old-fashioned paperless recorder, which has less channels, multiple installation and space-consuming problem.
Features
- Panel type DIN Size (144 * 144 mm), 320 * 240 Pixels, TFT truecolor (LCD)
- 128 MB memory installed inside, applied to long terms data record
- Common input signal, mA, Include VDC, T/C, RTD, Hz etc.
- High accuracy +/-0.15% of Reading
- Maximum 12 points Relay, 4 point 4-20 mA output and 24 VDC output
- 16 channels maximum input
- 24 VDC Aux. power supply available for 2-Wire system
- Display / Record single point, Multi-point, Trend, Totalizer, Bargraph
- The recorded data could be stored in USB memory & SD memory card and transferred to computer for soft analysis
Specification
| Number of Inputs | : | 1-16 Channels |
| Input | : | T/C (K, S, B, E, J, N, T, R, N, etc) |
| : | RTD, CU50, CU53, BA1, BA2 | |
| : | DCA (4-20 mA, 0-10 mA, 0-20 mA) | |
| : | DCV (0-5 V, 1-5 V, 0-10 V, 20 mV, 100 mV) | |
| : | Frequency (1 Hz-5 kHz) | |
| : | Resistance (0-175 Ω, 0-400 Ω) | |
| Accuracy | : | +/-0.15% of Span |
| Response Time | : | 50 ms |
| Alarm Type | : | High & Low alarm, Incr. & Decr. alarm |
| Output | : | 4-20 mA * 4 points Maximum, Load: 800 W |
| : | Relay, 3 A / 250 V * 12 points Maximum | |
| : | 24 VDC, 65 mA * 4 points Maximum | |
| Digit Input | : | 2 Points Maximum |
| Storage Memory | : | 128 MB (on board) |
| Recycling Mode | : | Newest Data overwrites to oldest data |
| Recording Data Shift | : | USB memory (32 GB) / SD Card (32 GB) |
| Display update Rate | : | 1 Second |
| Keypad | : | 6 Keys (Page, Left, Right, Up, Down, Enter) |
| for programming and display control | ||
| Parameter Storage | : | Operation parameters are stored by |
| EEPROM for more than 10 years | ||
| Option | : | Temperature & Pressure Compensation |
| Display | : | 5.6″ Color-screen LCD |
| Trend & Bargraph | : | Vertical / Horizontal |
| Digital | : | 4-1/2 Digits programmable |
| Engineering Unit | : | 66 Different engineering units |
| Parameter Protection | : | Password entry (6 Digits) |
| Logging Rate | : | 1-1800 Seconds Per Data |
| Recording Capability | : | 120 Hours (16 Points, 1 Data/Second) |
| : | 789 Years (1 Point, 1 Data/Hour) | |
| PC Software | : | Compatible with Windows 2000 / XP / Vista |
| Display | : | Trend, Digital, Circular, Alarm, Bargraph |
| Totalizer | ||
| Convert function | : | Saved as excel files |
| Protection Class | : | NEMA 3 / IP54 |
| Weight | : | 2.6 kg maximum |
| Dimensions | : | 144 mm (W)*144 mm (H)*219 mm (D) |
| Ambient Temperature | : | -10~60 °C |
| Ambient Humidity | : | 10-85% RH (at 5-40 °C) |
| Power Supply | : | 85-260 VAC, 50/60 Hz |
| Vibration Test | : | 10-60 Hz, 10 m/s2 for 3 hours |
| Power Consumption | : | ≤20 W |
| Communication | : | RS232 / RS485 (MODBUS Protocol) |
| Ethernet Port |
