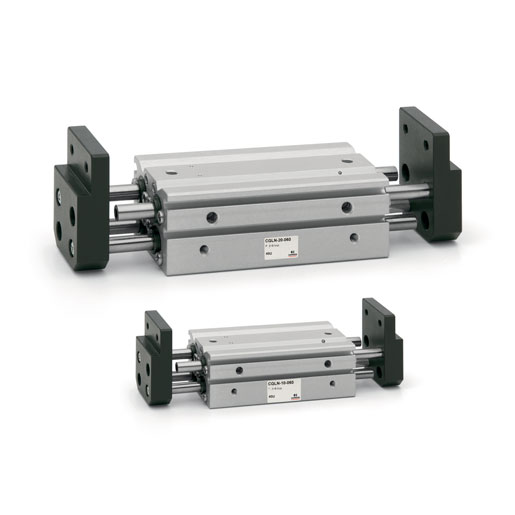

Wide opening parallel grippers Series CGLN
Double acting, magnetic, self-centering
Bores: ø 10, 16, 20, 25, 32 mm
Bores: ø 10, 16, 20, 25, 32 mm
Series CGLN’s double piston ensures a high gripping force from within a compact unit.
The body of the gripper is complete of grooves to mount magnetic proximity switches (Series CSC).
The body of the gripper is complete of grooves to mount magnetic proximity switches (Series CSC).
The wide range of bores and strokes available allows to meet technical requirements at its best.
Repositioning of the gripper is made easier by the 2 calibrated holes provided in the jaws and by the 2 locating pins in the base.
RELATED PRODUCTS
Positioning Feedback Cylinders ISO 15552 Series 6PF
Double-acting low friction, magnetic
Ø 50, 63, 80, 100, 125 mm
Series 6PF pneumatic actuators are equipped with a potentiometric linear position transducer integrated inside the rod.
This type of cylinder allows, along the entire stroke, a constant control of the rod position which is read processing the change of the transducer internal resistance.
The pistons have been equipped with a permanent magnet which enables the use of external end-stroke sensors.
The dynamic seals are specific for low friction.
Thanks to the electrical connection, realized by means of an M12 male electric round connector positioned on the rear head, these cylinders fulfil the standards of IP67 protection class.
Series 6PF cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
They are available with bores from 50mm to 125mm with standard strokes from 50mm to 1000mm with intervals of 50mm.
The sturdy design, the flexible installation and the high performance make Series 6PF suitable for use in applications with tensioning cylinders, positioning cylinders and filling, cutting and measuring systems.
Series 16, 23, 24 and 25
Series 16: Ø 8, 10, 12 mm - non-magnetic
Series 23: Ø 16, 20, 25 mm - magnetic, auto-cushioned
Series 24: Ø 10, 12, 16, 20, 25, 32 mm - magnetic
Series 25: Ø 16, 20, 25, 32 mm - magnetic, cushioned
Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432. It is possible to choose from three different types of cushioning: mechanical (standard bumper on Series 16 and 24), adjustable pneumatic cushioning (Series 25) and pneumatic auto-cushioning (Series 23).
This last version, thanks to a patented system, automatically adjusts the cushioning in order to provide optimal deceleration during the entire cushioning phase.
The cylinder enjoys smooth, jolt-free movement, reducing vibrations and noise, while also guaranteeing high reliability and constant performance over time.
The adopted technical solutions and the choice of materials have provided the basis for a complete range of versatile and very reliable mini-cylinders.
They are suitable to be used in a multitude of industrial applications, especially where operating conditions undergo changes over time like for example wear of machine components.
Various mounting accessories are available to fix the cylinders in different ways.
Short-stroke cylinders Series QL
Series QL: double-acting, magnetic and non magnetic
Ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Series QL short-stroke cylinders are available in seven different bore sizes from 12 mm to 100 mm and are designed to cover a wide range of application needs, from light duties in packaging or assembly through to the demanding requirements of handling components for woodworking.
The low weight of the aluminium body and the compact design makes this cylinder range quick and easy to install, even in confined or awkward spaces.
Series QL is available in double acting, magnetic and non-magnetic designs.
A full range of accessories such as standard, large and narrow mounting feet enhance the applicability and usability of the range.
Short-stroke cylinders Series QN
Single-acting, non magnetic
ø 8, 12, 20, 32, 50, 63 mm
Series QN single-acting short-stroke cylinders have been designed so that they can be installed in very small spaces.
Due to the compactness and sturdiness of these cylinders, they are mainly suitable for positioning and locking.The available strokes are indicated in the tables.
Stainless steel cylinders Series 97
Single- and double-acting, cushioned, magnetic.
Ø 32, 40, 50, 63 mm
Series 97 stainless steel cylinders can be used in critical applications where a high level of corrosion resistance is required (for example: off-shore, naval, food industries).
These cylinders are normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.
