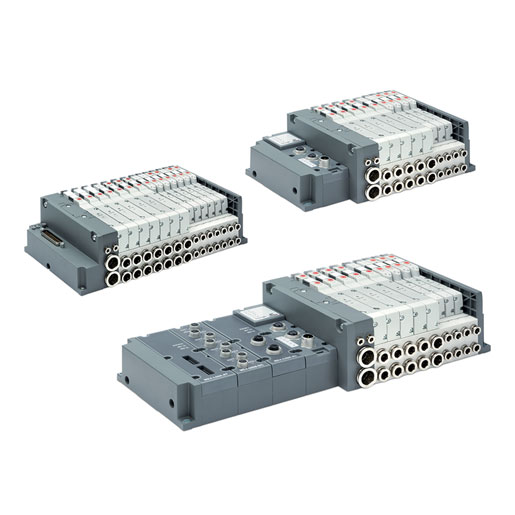

Valve islands, Size 5, Multipole and Fieldbus Series D5
Fieldbus connection with the most common communication protocols PROFIBUS-DP, PROFINET, CANopen, EtherNET/IP, EtherCAT and IO-Link.
Multipole connection with 25 or 44 pins
Valve functions: 2×3/2; 5/2; 5/3 CC, CO, CP
Multipole connection with 25 or 44 pins
Valve functions: 2×3/2; 5/2; 5/3 CC, CO, CP
In this configuration, Series D1 and D2 valves (size 10 and 16 mm) can be combined into one unique Island. Some benefits of this version are the small dimensions, only one Multipole or Serial connection point, easy installation and the possibility to have different flow rates.
All size D2 components of this configuration remain unvaried, while for size D1 a longer subbase is used.
All electric and pneumatic components and characteristics of the single versions remain unvaried.
The COILVISION function is included also in this version.
