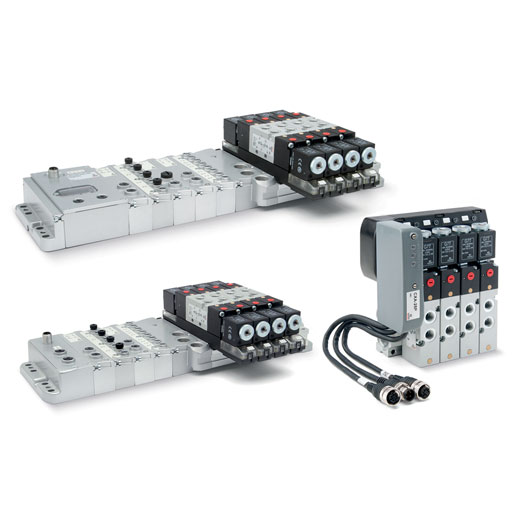

Valve islands, Multipole and Fieldbus Series 3 Plug-In
Plug-In system for Series 3 solenoid valves, G1/8 port.
Valve functions: 2×3/2, 5/2 and 5/3-way CO CC CP.
Multipole with a 25-pin Sub-D connector.
It can interface with all major serial communication protocols.
Valve functions: 2×3/2, 5/2 and 5/3-way CO CC CP.
Multipole with a 25-pin Sub-D connector.
It can interface with all major serial communication protocols.
The Multipole version of Series 3 Plug-In valve island can be easily installed thanks to the front position of the Sub-D connector. The accessories of the new connection system to the Series CX serial nets enable to handle up a multipole valve island by means of a Sub-D connector or through a node integrated in the island.
The modularity of the electric and pneumatic parts allows to install up to a maximum of 22 solenoids on 22 valve positions.The electric and pneumatic modules have 2- and 3-position modularity. To optimize the signals distribution, electric modules are available for monostable and bistable valves. The pneumatic modularity enables the creation of zones with differentiated pressure.
The modularity of the electric and pneumatic parts allows to install up to a maximum of 22 solenoids on 22 valve positions.The electric and pneumatic modules have 2- and 3-position modularity. To optimize the signals distribution, electric modules are available for monostable and bistable valves. The pneumatic modularity enables the creation of zones with differentiated pressure.
RELATED PRODUCTS
Cylinders Aluminium profile Series 61
Single and double-acting, magnetic, cushioned
Standard, low friction, low temperatures and tandem versions
Ø 32, 40, 50, 63, 80, 100, 125 mm
Series 61 cylinders comply with the ISO 15552 standards and can be assembled with the entire range of standard accessories.
A permanent magnet, mounted on the piston in these cylinders, enables information to be received regarding the piston position by means of proximity switches mounted in grooves along the cylinder profile.
These grooves can be covered with a slot cover profile.This cylinder series is equipped with adjustable end-stroke cushioning.
Moreover, they are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.
Hydrochecks Series 43
Bore ø 40 mm
Regulated thrust or return stroke
Skip-Stop function
Series 43 hydrocheck units are available with two different types of control: regulated outward movement and fast return; or fast outward movement and regulated return.
These hydrochecks come complete with an oil surge tank which ensures automatic equalisation.
Speed variation is obtained by means of an incorporated flow regulator designed to allow comprehensive and constant use.Upon request, they can be supplied with an incorporated stop valve or an acceleration valve or both.
To restore oil when the minimum level in the surge tank is reached, use the following oil and pump Mod. 43N-PMP:
hydraulic oil, class H, ISO symbol HG 46, viscosity 4.5 E. at 40°C.
Stainless steel cylinders Series 90
Single- and double-acting, cushioned, magnetic
ø 32, 40, 50, 63, 80, 100 and 125 mm
The Series 90 cylinders can be used in critical applications in which a high corrosion resistance is required (for example off-shore, marine, food).
This series of cylinders is normally equipped with end of stroke buffers with adjustable pneumatic cushioning.
Moreover, they are equipped with a mechanical cushioning that makes the impact of the piston less noisy as it reaches the end of the stroke.
Stainless steel cylinders Series 97
Single- and double-acting, cushioned, magnetic.
Ø 32, 40, 50, 63 mm
Series 97 stainless steel cylinders can be used in critical applications where a high level of corrosion resistance is required (for example: off-shore, naval, food industries).
These cylinders are normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.
Stopper cylinders Series ST
Single and double-acting, magnetic, non-rotating
Sizes 20, 32, 40, 50 mm
The Series ST Stopper cylinders are pneumatic actuators with rod, complying with UNITOP and ISO 21287 standards, where rod and bushing have been specifically enlarged to ensure high resistance to radial loads and shocks.
These cylinders are available in two versions, double-acting and single-acting, and with rear spring.
The non-rotating rod version is also available.
The detection of the piston position is enabled by means of proximity switches (Mod. CST or CSH) which are mounted in slots along three sides of the cylinder profile.
It is possible to cover the slots with a proper profile (Mod. S-CST-500).
The high resistance to shocks and radial loads and the easy mounting makes Series ST particularly suitable for use in transport/conveyor lines where it is required to stop the transit of workpieces and workpiece-holder pallets.
