Mounted Panel Soft-Starter ASW900 Series
The ASW900 is a starter solution for three-phase induction motors, mounted in an electrical panel with a built-in SSW900 soft-starter.
Wide power range
- Power range: from 2.2 to 900 kW
- Voltages: from 220 to 480 V at 50/60 Hz
- Overload capacity: 300%*In for 30s
- Start capacity: 5 to 10 starts/hour depending on the version
- Currents: 10 to 1,400 A
- Ready to handle a variety of complex building and industrial applications
Compact and complete
- Optimized design, reduced panel dimensions with bypass integrated into the soft-starter

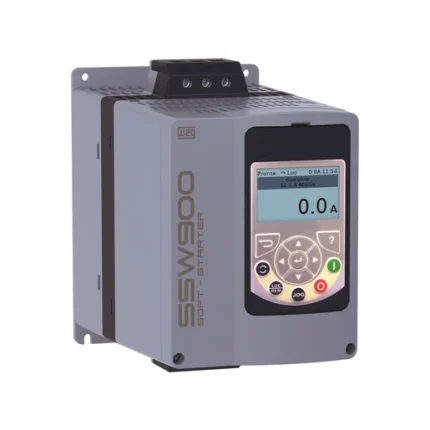

- Built-in SSW900
- Full motor protection including built-in overload protection and thermal imaging
- Built-in control and power input protection.
- Graphical LCD operator interface and keypad, optional Bluetooth® version
- Allows the installation of the SSW900 accessories
Connected and accessible
- Connectivity through optional items: Modbus-RTU, CANopen, DeviceNet, Profibus-DP, EtherNet/IP, Modbus-TCP, PROFINET IO
- Externally accessible USB programming port on the HMI
- WEG SuperDrive G2 parameterization and monitoring software and WPS programming software
Main features
- Kick start
- Pump control
- Motor coasting
- Current limiting
- Reduction of Water Hammer
- Voltage ramp in the deceleration
- Voltage ramp in the acceleration
- Current ramp
- Torque control
- Pump control
- Optimal braking
- SoftPLC function (allows programming logic via software)
