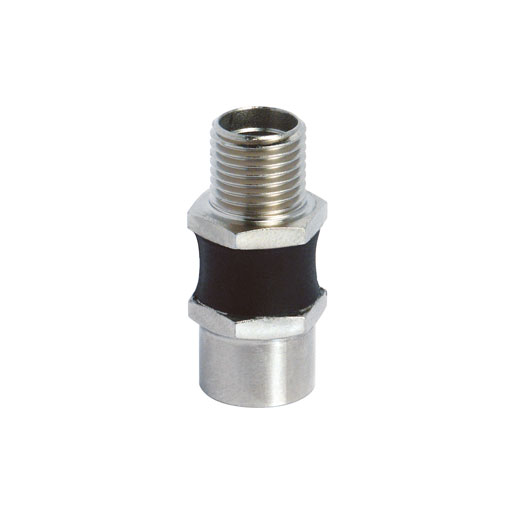

Flexible suction pad mountings Series NPF
The vulcanisation provides flexibility in all directions.
Thread G1/4
Thread G1/4
Series NPF flexible suction pad mounting allows a better adaption between the suction pad and the workpiece due to its flexibility in all directions.
Applications:
- Suitable for use in conjunction with larger flat suction pads on bigger workpieces which are either inclined or have a tendency to sag during the lifting operation or simply have a slightly irregular shape.

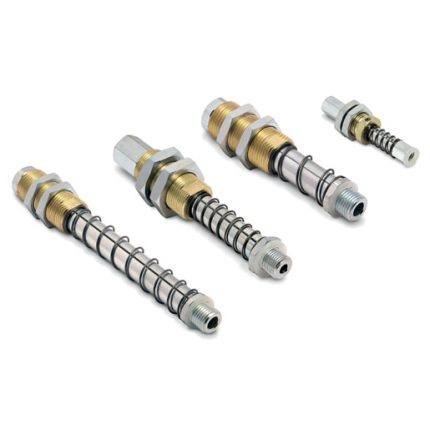

- They can be used in combination with spring plungers for further compensation in height if needed.
General Data
| Description | Flexible suction pad mounting |
| Materials | Steel body Vulcanised rubber connection |
Coding Example
| NPF | – | FM | – | 1/4 | – | M10x1,25 |
| NPF | SERIES NPF = Flexible suction pad mountings |
| FM | THREAD VERSION FM = G1 Female / G2 Male |
| 1/4 | FEMALE THREAD G1 1/4 = G1/4 |
| M10x1,25 | MALE THREAD G2 M10x1,25 = M10x1,25 1/4 = G1/4 |
