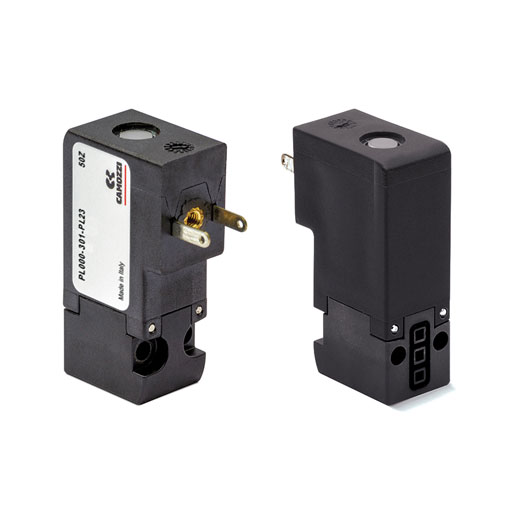

Direct acting solenoid valves Series PL
2/2-way – Normally Open (NO)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
Series PL directly operated mini-solenoid valves are available in the NO version and can be mounted on single bases or on manifolds.
Please note that all Series PL solenoid valves are supplied with direct current (DC).
To operate in alternating current (AC), it is necessary to use the connector with bridge rectifier Mod. 125-900.
