Mechanically operated valves Series 1 and 3
Series 1: 3/2-way and 5/2-way, ports G1/8 and G1/4
Series 3: 3/2-way and 5/2-way, ports G1/8
Series 3: 3/2-way and 5/2-way, ports G1/8

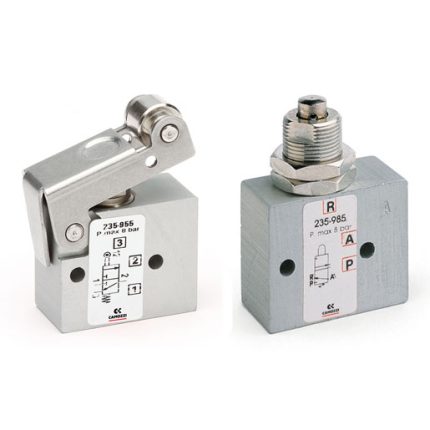

These mechanically operated valves have been designed with three different types of actuation:
- plunger
- lever/roller
- unidirectional lever/roller
In each case, return is triggered by a mechanical spring.
3/2-way monostable valves Series 3 are normally closed in the rest position when pressure is supplied in 1 and are normally open when pressure is supplied on connection 3, the user port 2 remaining unchanged.
5/2-way valves Series 3 can be supplied via the ports 3 and 5 with two different pressures if a cylinder has to be operated using a delivery pressure which is different from the return pressure.
