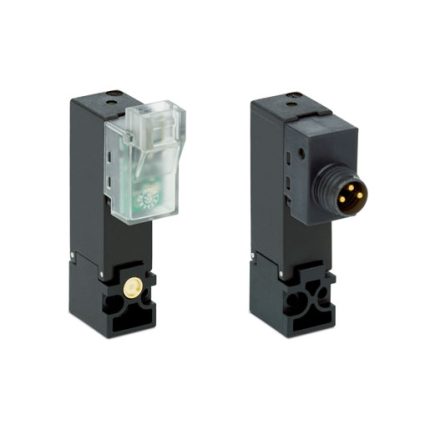

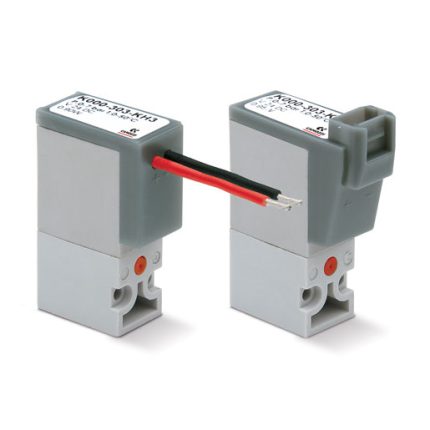

Direct acting solenoid valves Series KL
2/2-way – Normally Closed (NC)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
Series KL are miniaturised solenoid valves with a width of only 10 mm.
The body is designed in such a way it can be mounted both on manifold and on subbase and the valve is available in 2-way normally closed and in 3-way normally closed, open and universal version.
The use of a longer coil allowed to increase the pressure values the valves can withstand.
