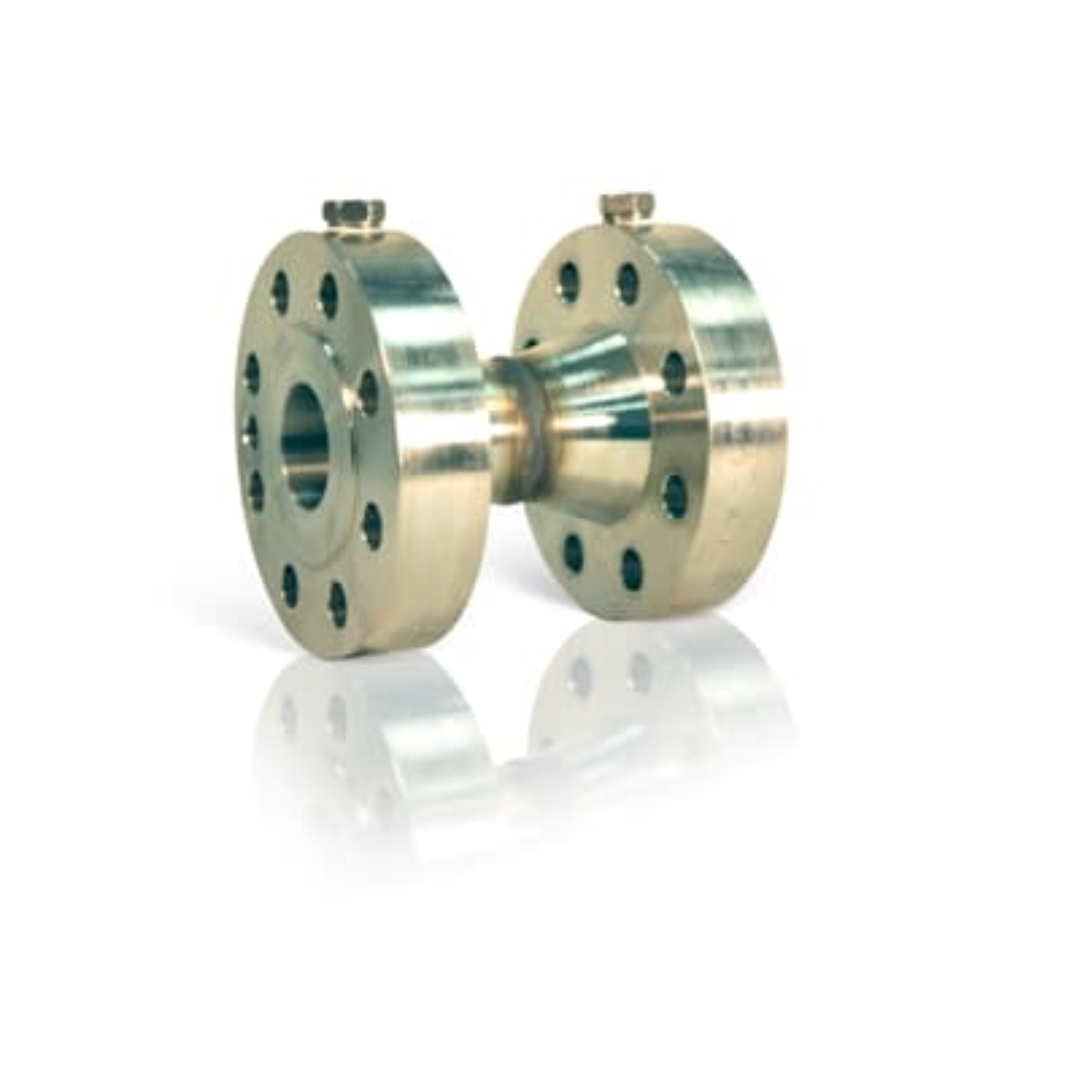

Wedge meter flow element FPD470P

The FPD470P is a wedge meter with threaded DP connections for connection to conventional transmitters . The flow element consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Add to wishlist

Category: Flow Measurement
