Variable Speed Drive CFW300
The CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation.It features compact size, contactor-style electrical instalation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.
RELATED PRODUCTS
AFW11M – Cabinet-built Modular Frequency Inverter
The AFW11M G2, commonly referred to as “modular drive”, was developed for mounting on a modular structure, and it is available to supply high output currents with the choice of specification according to the application needs.
They are supplied in the versions with air-cooled heatsink (AFW11M) or water-cooled heatsink (AFW11W), using the new generation of modular inverters CFW11M G2 / CFW11W, in the voltages of 380 to 690 V, with input rectifier in six pulses, twelve pulses or regenerative.
AFW900 – Cabinet-built Frequency Inverter
The AFW900 is the panel-mounted frequency inverter solution for the drive and control of three-phase induction and permanent magnet motors. With the built-in CFW900 frequency inverter it provides high performance and safety, aligned with flexibility and connectivity. The set is tested according to NBR IEC 61439-1/2 and has WEG expertise in inverters and drive projects, guaranteeing quality, safety and excellent cost-benefit. The offer of standardized models and several options brings flexibility and practicality, ready-to-install solution in several applications, in addition to the option of customizations on demand.
Inverter Power Supply FFE200
FFE200 series is the WEG solution for regenerative power supply to be used as an alternative to traditional braking resistors. Everytime there is no stringent harmonic distortion requirements, which by the way can be addressed by the AFE200 series, the Fundamental Front End technology allows to supply the high power drive through the DC bus.

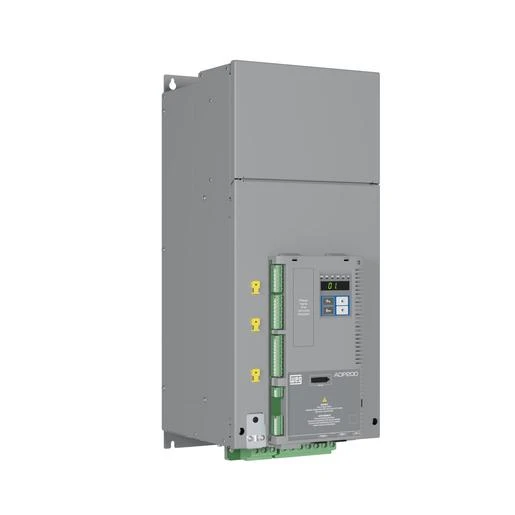

Variable speed drive ADP200
ADP200 is the right solution for servopump control, providing precise pressure and flow control and avoiding the energy waste typical of traditional hydraulic systems.
Oil flow and pressure can be set exactly as required by the machine, rather than at higher levels, without discharging oil as in conventional hydraulic machines.
The ADP200 high-performance drive is perfectly in line with the innovative “green manufacturing” design of injection molding machines, creating real added value for customers in terms of energy efficiency and higher mold quality.
WEG’s specific PID algorithm manages both single servopump systems and multi-pump machines and covers a wide range of applications.
