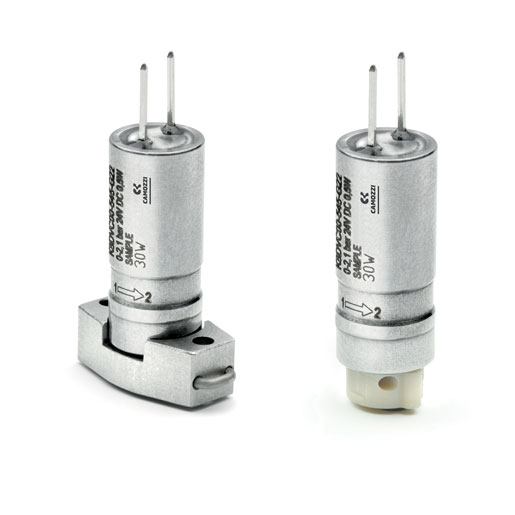

Media separated solenoid valves Series K8DV
2/2-way – Normally Closed (NC)
The K8DV solenoid valve was born to meet all the demands to shut off aggressive or heat sensitive fluids.
Thanks to a fluid separation membrane, the fluid is isolated from all internal metal parts of the solenoid valve and avoids heating, even if minimum, generated by the solenoid positioned above.
To choose the most suitable model for a specific application, check the chemical compatibility of the medium to control with the available materials of body and seals.
